Cisco Content Delivery Engine 205/220/250/280/285/420/460/475 Hardware Installation Guide
Chapter 1 Overview of the Content Delivery Engines
Hardware Features
For more information on message and errors see, Cisco Internet Streamer CDS Alarms and Error
Messages Guide.
For details about the front panel control buttons and LEDs of the CDE285-S and CDE285-L, see Cisco
UCS C240 M4 Server Installation and Service Guide.

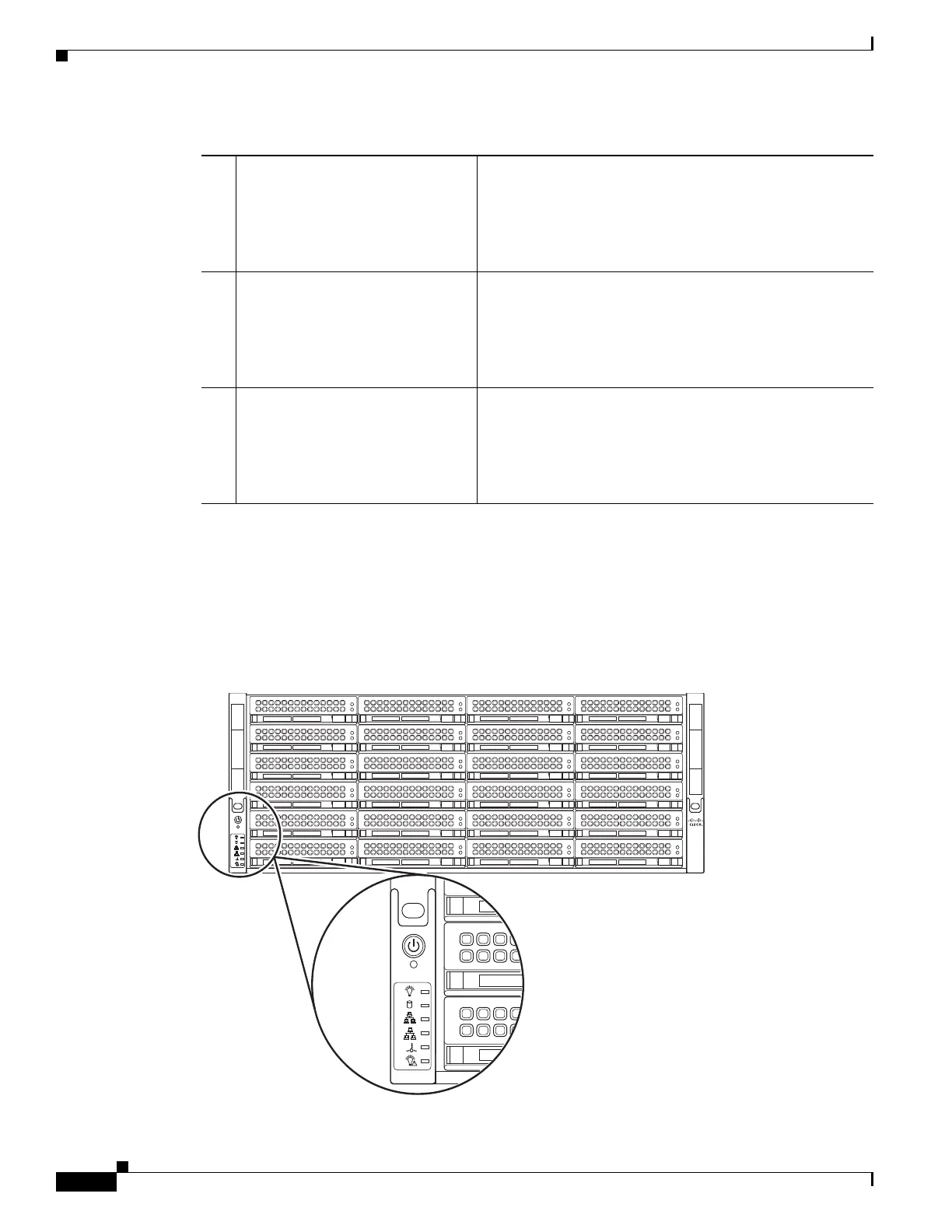

Figure 1-48 shows the location of the CDE420, and CDE460 front panel control buttons and LEDs.
Figure 1-48 CDE420, and CDE460 Front View Control Buttons and LEDs
7 Temperature status • Green—The server is operating at normal temperature.
• Amber, steady—One or more temperature sensors
breached the critical threshold.
• Amber, blinking—One or more temperature sensors
breached the non-recoverable threshold.
8 Power supply status
• Green—All power supplies are operating normally.
• Amber, steady—One or more power supplies are in a
degraded operational state.
• Amber, blinking—One or more power supplies are in a
critical fault state.
9 Network link activity
• Off—The Ethernet link is idle.
• Green—One or more Ethernet LOM ports are
link-active, but there is no activity.
• Green, blinking—One or more Ethernet LOM ports are
link-active, with activity.
Table 1-50 CDE280 Front Panel LEDs, Definitions of States (continued)
