Alphanumeric keypad
The keypad behaves in a similar way to the keypad on a mobile phone.
Waking up the system
To wake up the system just pick up the remote control or press any key. You may have to point
the remote control toward the system/camera to make sure it discovers you.
IR sensor range (DIP switch setting)
The IR sensor has a short and long range. When video conference systems are placed close to each
other, you may find it convenient to use the short range to avoid interfering with the other systems.
Open the battery cover and remove the batteries to set the DIP switch.
• Short range (1 m / 3 ft): Move the DIP switch down.
• Long range: Move the DIP switch up.
Press the Clear key to remove
characters in a text field.
End call / Standby
Press the End Call key to
reject an incoming call, to
end an ongoing call or—when
idle—to go into standby mode.
When navigating in the menu
the key is used to exit the
menu system.
Press and hold this key to
have the system enter standby
mode.
Call key
Press the Call key to place a
call, and to accept an incom-
ing call.
Use the Call button as a short-
cut to Recent Calls when the
Call menu is not visible.
Clear
0-9, a-z, period (.), @,
space, *
Press a key repeatedly
to toggle between the
options displayed on that
key.
abc/123 #
Press and hold the # key
to toggle between lower
and upper case characters
and numbers (depending
on context).

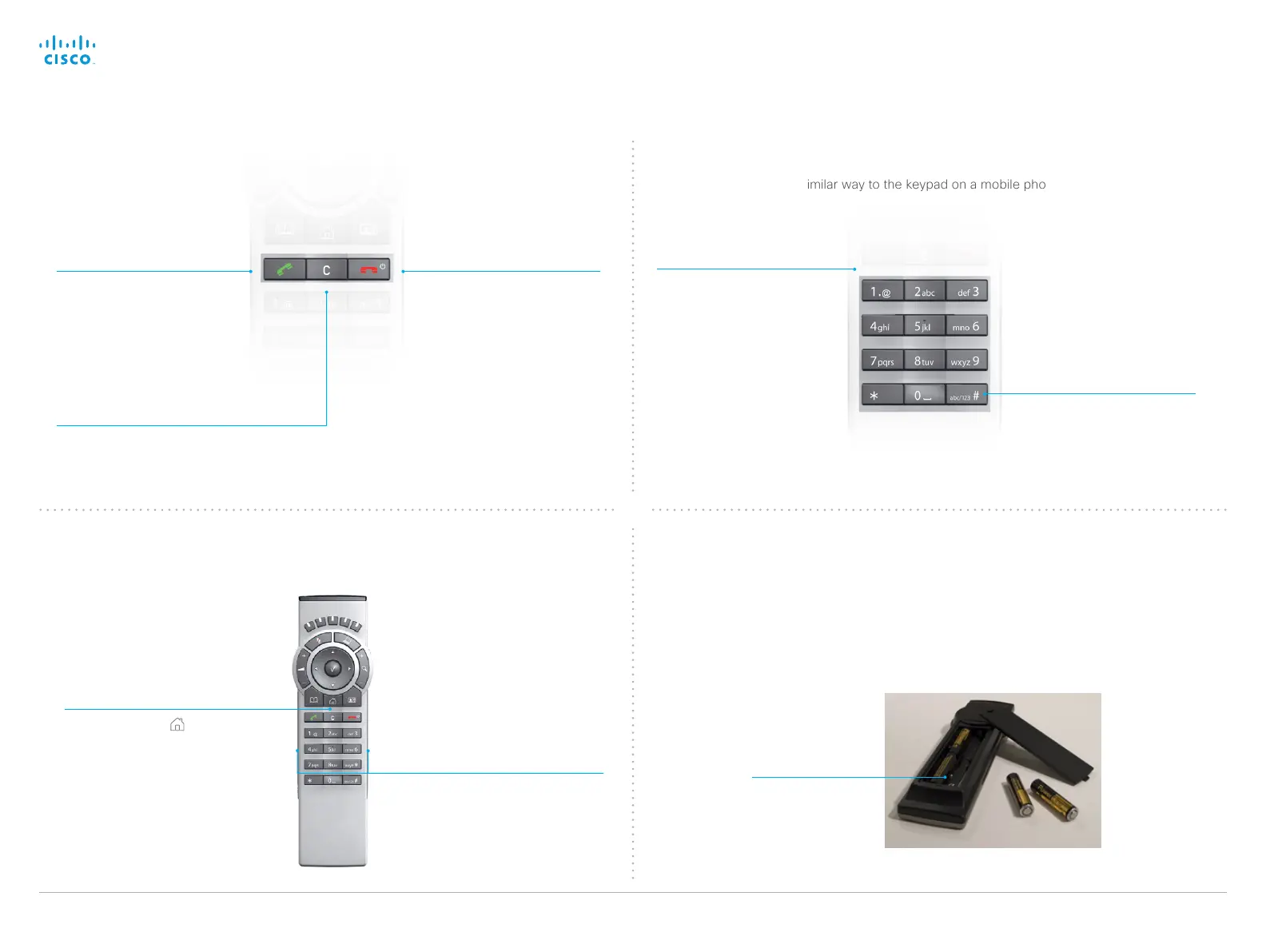

The DIP switch
Home key
Press the Home ( ) key
to open the Home menu
on screen.
Rubber line sensors
When you pick up the remote
control and touch the rubber
line sensors along the sides of
the remote control, the system
wakes up.
