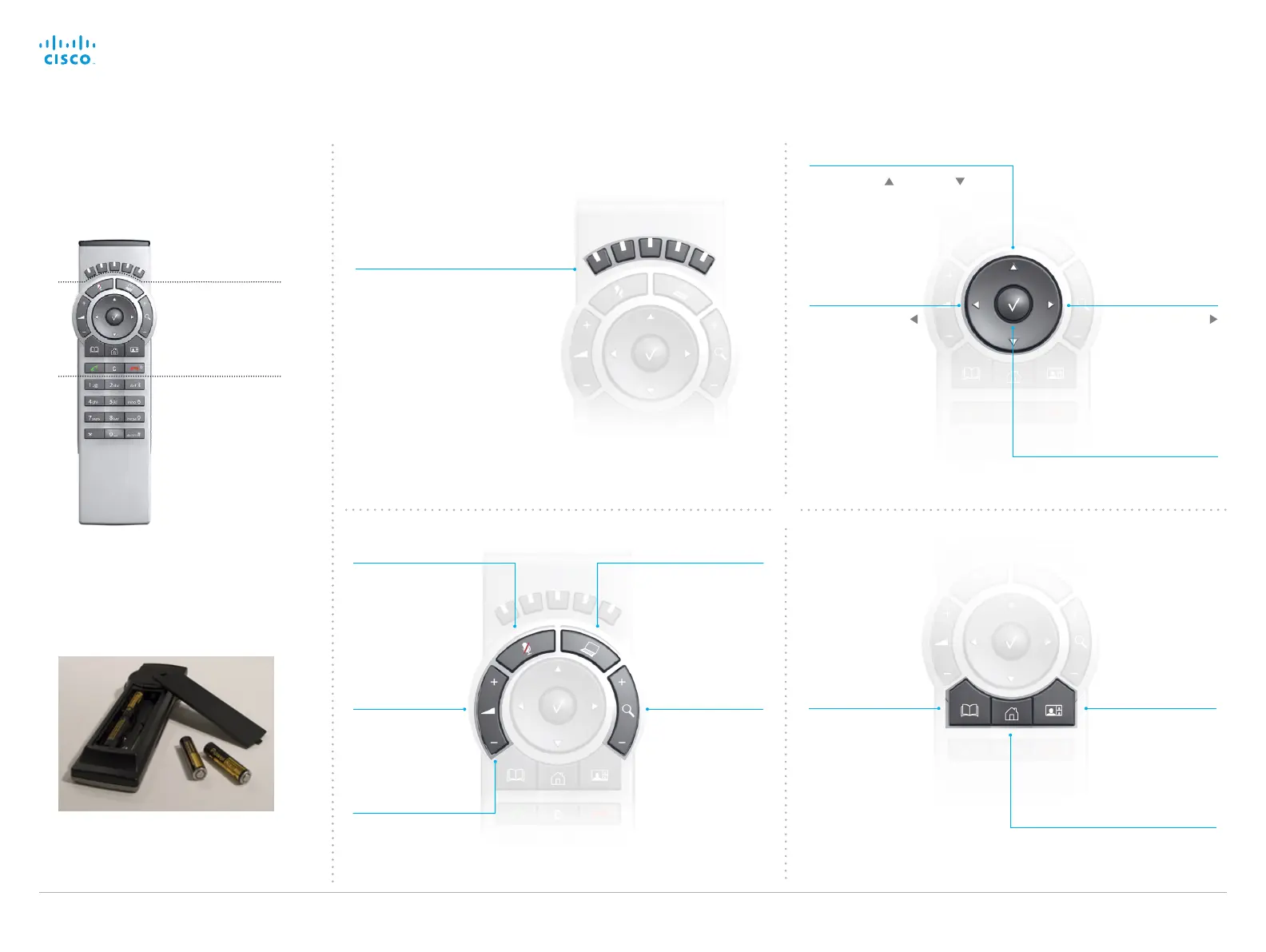

Remote control details
Function keys
Each Function key corresponds
to a softkey on the screen
and represents shortcuts and
advanced functions.
Arrow left
Press the left
arrow key to go
one step back in
the menu or to
move to the left in
a text field.
Arrow right
Press the right
arrow key to expand
the selected menu
item or to move to
the right in a text
field.
OK/Select
Press the OK/Select key to confirm
your choice or selection.
Arrow up/down
Press the up and down arrow
keys to navigate in the menu and
to move the camera (pan, tilt)
when the menu on screen is not
displayed.
Phone book
Press the Phone
Book key to display
the phone book.
Layout
Press the Layout
key to display the
layout menu, then
select a view in the
menu.
Home
Press the Home key to go back
to the Home menu.
Microphone
Press the Microphone
key to switch between
setting the micro-
phone to on and to off.
The Functions keys in
the upper part of the
remote control corre-
spond with the softkeys
on screen.
The middle part of the
remote control is used
to handle the video,
sound, phone book,
menus and navigation.
The lower part of the
remote control is similar
to the keypad on a
mobile phone.
Make sure the remote control has working
batteries (4 x AAA batteries).
Presentation
Press the Presentation
key to show or hide
a presentation.
Zoom
Press + or – on
the Zoom key to
zoom the camera
in and out.
Volume
Press + or – on
the Volume key to
adjust the codec
volume.
Mute
Press and hold the
– button to mute an
incoming call.
