Example 15: ASA 5505 Security Plus License with Failover and Dual-ISP Backup
Example 15: ASA 5505 Security Plus License with Failover and
Dual-ISP Backup

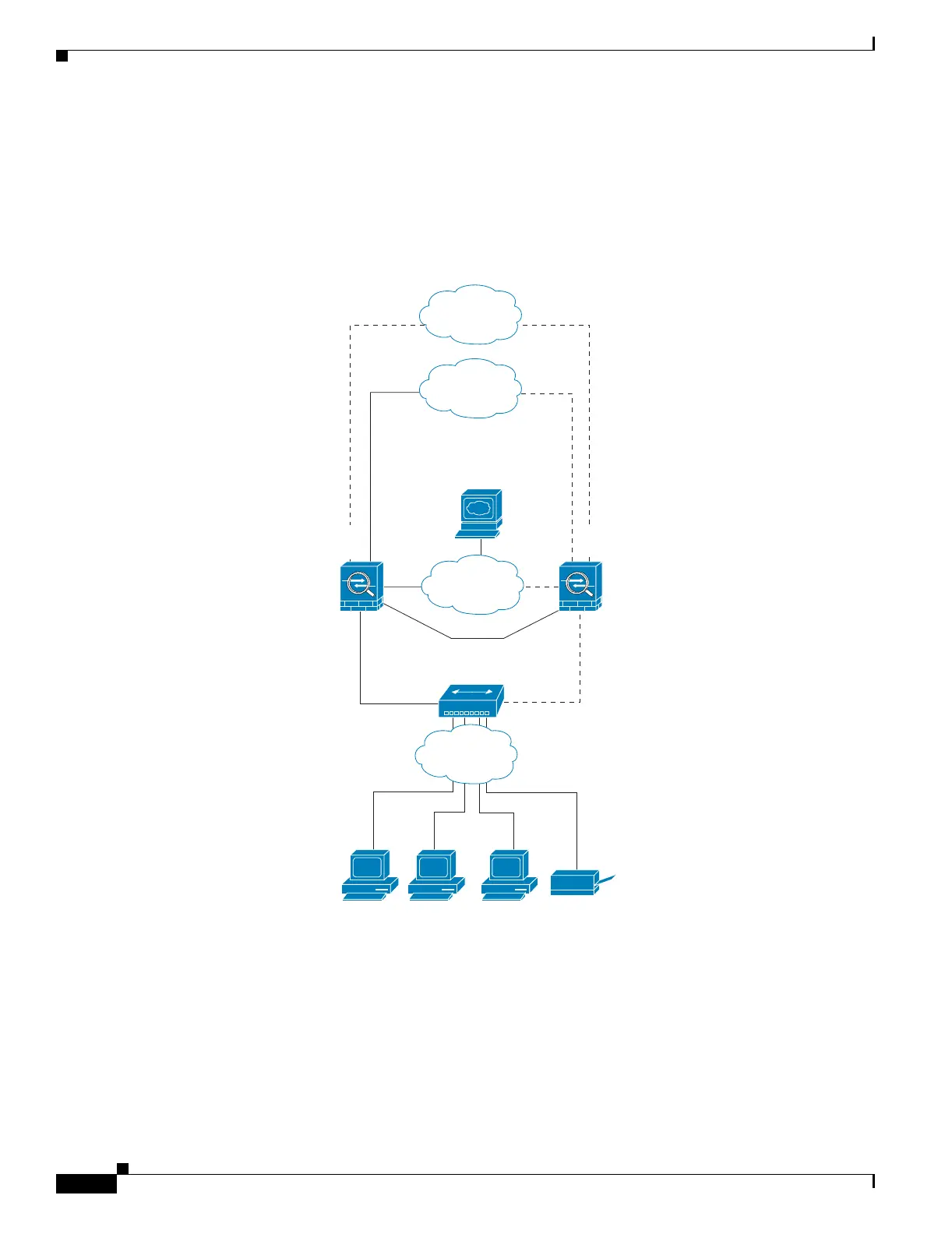

This configuration creates five VLANs: inside, outside, dmz, backup-isp and faillink (see Figure B-13).
Figure B-14 Example 15
See the following sections for the configurations for this scenario:
• Example 15: Primary Unit Configuration
• Example 15: Secondary Unit Configuration
Example 15: Primary Unit Configuration
passwd g00fba11
enable password gen1u$
ASA 5505
with Security Plus
License
Failover
ASA 5505
VLAN 4
Backup ISP
VLAN 2
Primary ISP
VLAN 3
DMZ
VLAN 5: Failover Link
Host
Printer
Host
Web Server
192.168.2.2
Host
192.168.1.1/24 192.168.1.2/24
mary: 209.165.200.224/27
a
ckup: 209.165.202.128/27
Primary: 209.165.200.225/27
Backup: 209.165.202.129/27
153836
Switch
VLAN 1
Inside
