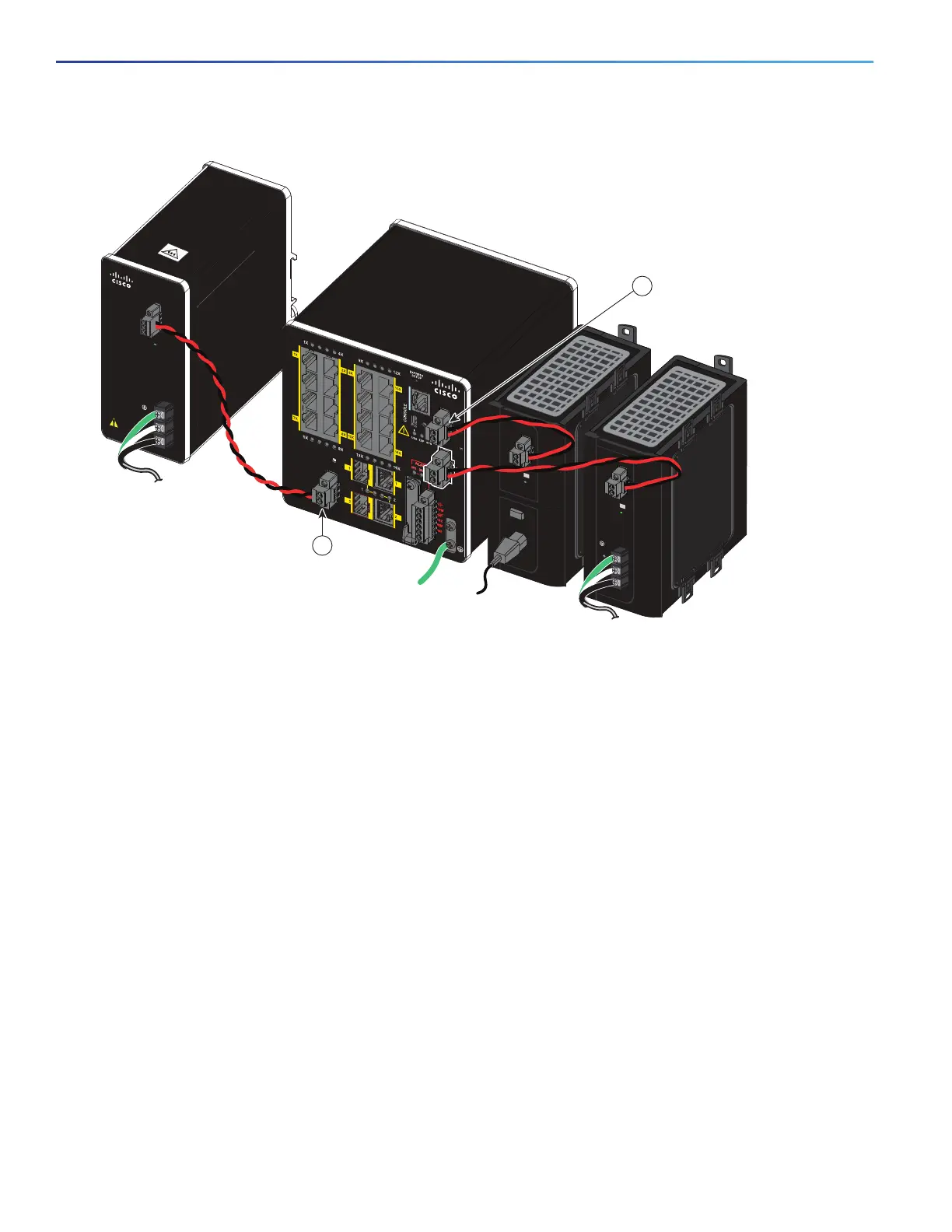

Figure 30 PoE-capable Switch with PoE Power Supply Module Connected
Warning: An exposed wire lead from a DC-input power source can conduct harmful levels of electricity. Be sure that
no exposed portion of the DC-input power source wire extends from the connector(s) or terminal block(s).
Statement 122
Caution: Do not over-torque the PoE power connector’s captive screws. The torque should not exceed 2 in-lb
(0.23 N-m).
Note: The input rating is 48/54VDC 2.5A.
1
Power connector
2 PoE power connector
PWR-IE65
