Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Appendix C Cable and Connectors
Connector Specifications
100BASE-FX Ports
The 100BASE-FX ports use MT-RJ connectors. See Figure C-3. The 100BASE-FX ports use 50/125- or
62.5/125-micron multimode fiber-optic cabling.

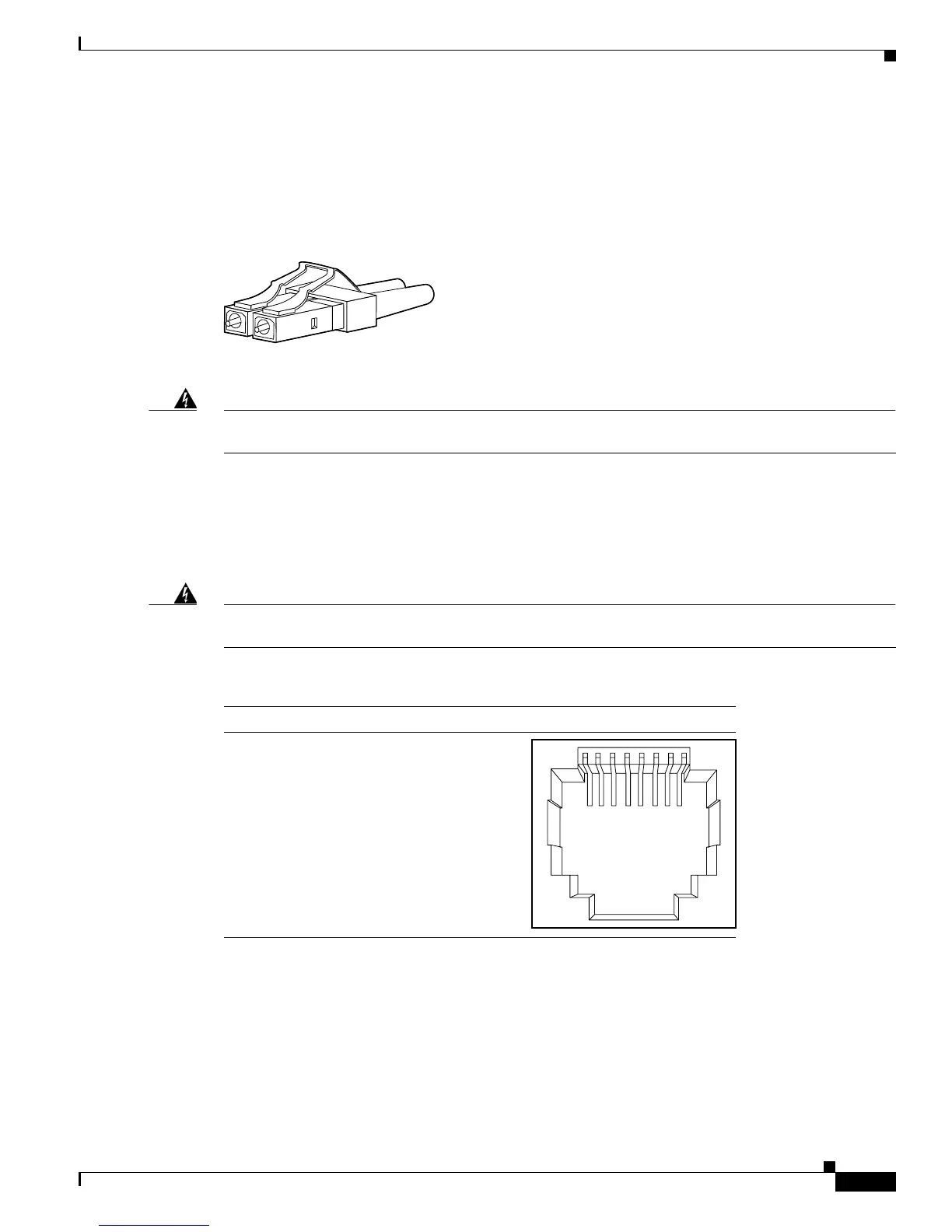

Figure C-3 Fiber-Optic SFP Module LC Connector
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments.
SFP Module Ports
The switch uses SFP modules for fiber-optic uplink ports (see Figure C-3) and for copper SFP ports (see
Figure C-4). See the switch release notes for a list of supported SFP modules.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments.
Figure C-4 Copper SFP Module RJ-45 Connector
58476
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
