Cisco IE 3000 Series User Manual

2-43
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Connecting Destination Ports

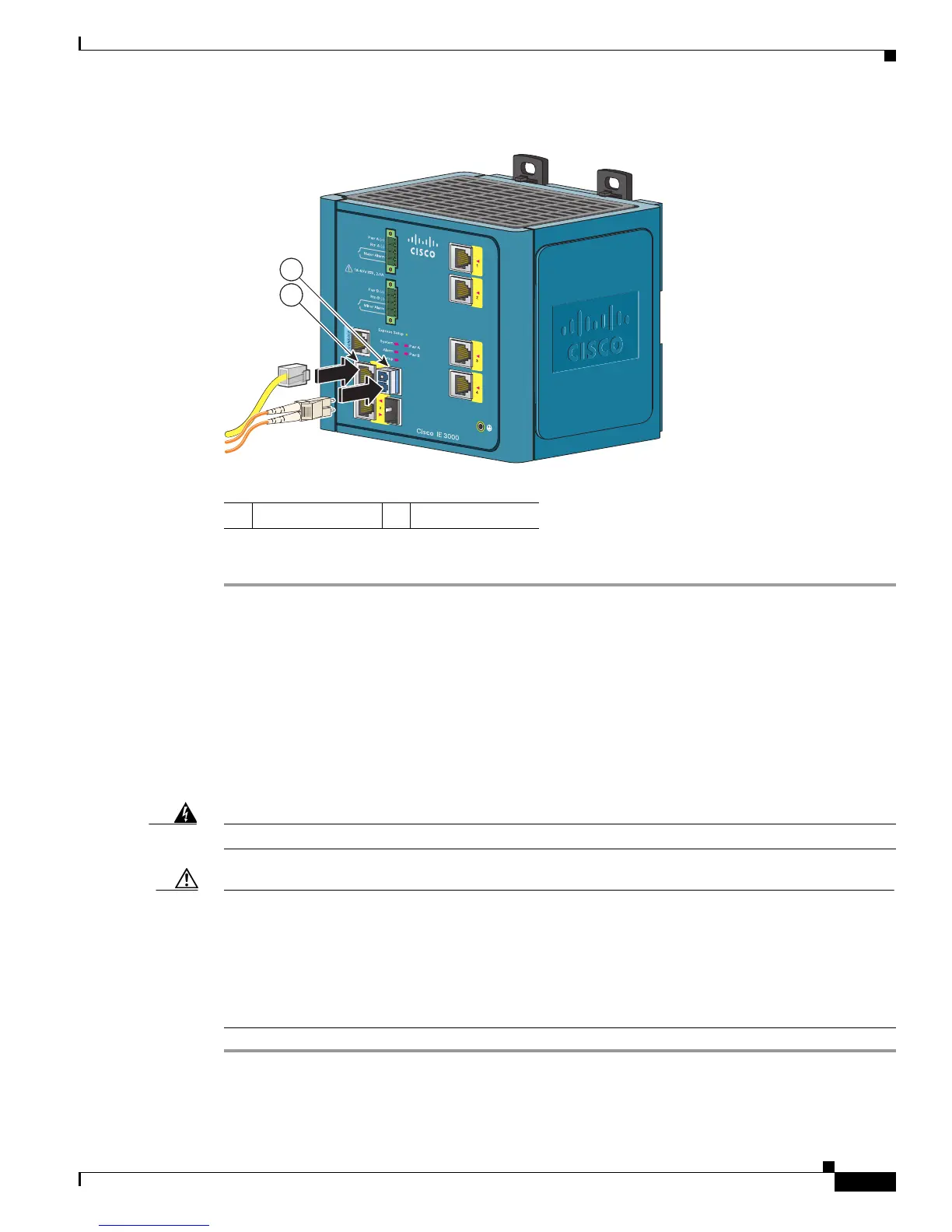

Figure 2-36 Connecting to a Dual-Purpose Port
Step 2 Connect the other end of the cable to the other device.
By default, the switch detects whether an RJ-45 connector or SFP module is connected to a dual-purpose
port and configures the port accordingly. You can change this setting and configure the port to recognize
only an RJ-45 connector or only an SFP module by using the media type interface configuration
command. For more information, see the switch command reference.
Connecting to 100BASE-FX Ports
Follow these steps to connect a fiber-optic cable to an Cisco IEM-3000-8FM expansion module:
Warning Class 1 laser product. Statement 1008
Caution Do not remove the rubber plugs from the SFF module port or the rubber caps from the fiber-optic cable
until you are ready to connect the cable. The plugs and caps protect the SFF module ports and cables
from contamination and ambient light.
Before connecting to the SFF module port, be sure that you understand the port and cabling stipulations
in the
“Preparing for Installation” section on page 2-1. See the “Cable and Adapter Specifications”
section on page C-4 for information about the LC connector on the SFF module.
Step 1 Remove the rubber plugs from the module port and fiber-optic cable, and store them for future use.
Step 2 Insert one end of the fiber-optic cable into the SFP module port. See Figure 2-37.
1 LC connector 2 RJ-45 connector
201871
1
2

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
