Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Installing the Switch

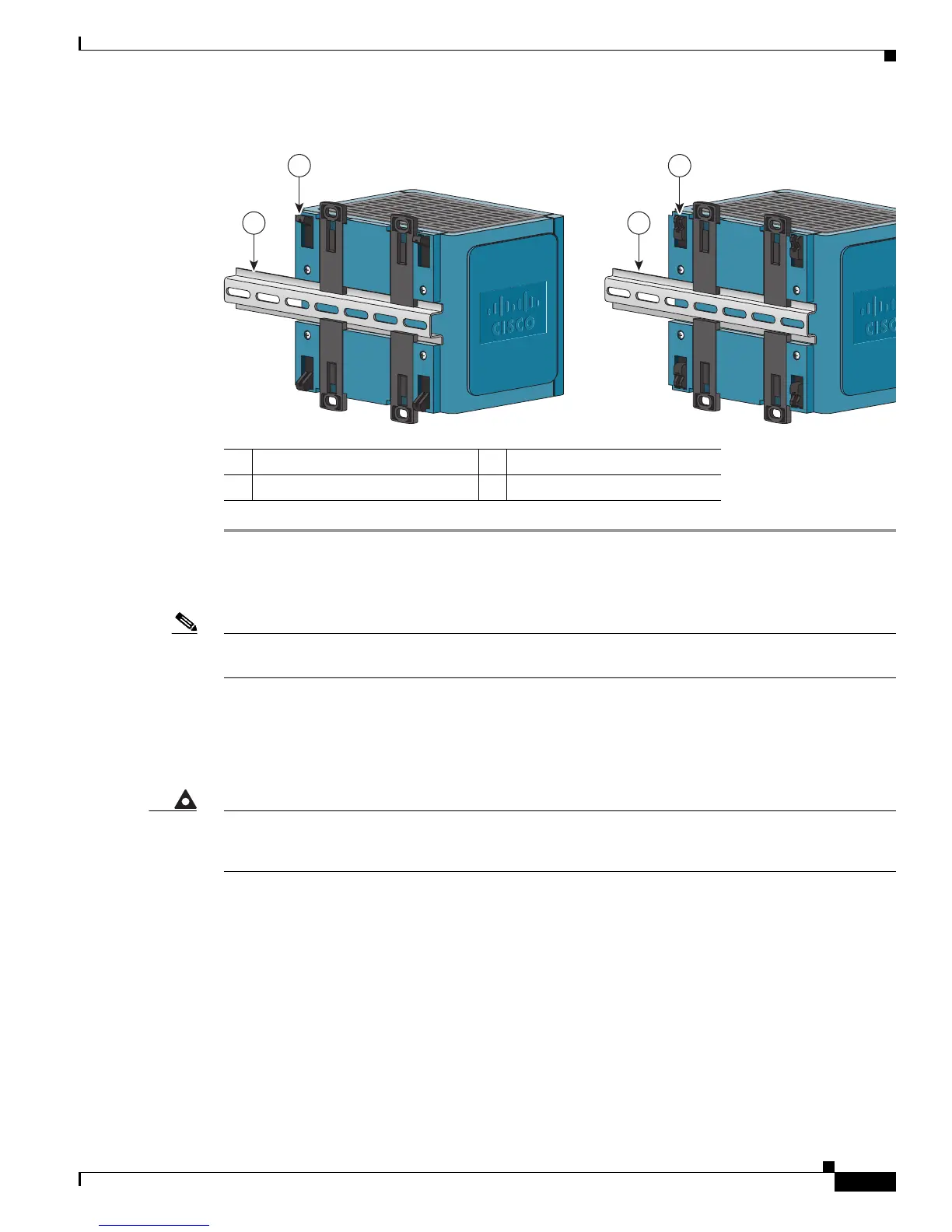

Figure 2-22 Mounting the Switch on a DIN Rail in a Parallel Position
After the switch is mounted on the DIN rail, connect the power and alarm wires, as described in the
“Connecting Power and Alarm Circuits” section on page 2-32.
Note For instructions on how to remove the switch from a DIN rail, see the “Removing the Switch from a DIN
Rail or a Rack” section on page 2-31.
Installing the Switch on the Wall
To attach the switch to a wall or a panel, follow these steps.
Warning Read the wall-mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people
and damage to the system. Statement 378
1 15-mm DIN rail 3 7.5-mm DIN rail
2 Foot in extended position 4 Foot in recessed position
1 3
2 4

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
