Appendix B Installation In a Hazardous Environment
Verifying Switch Operation

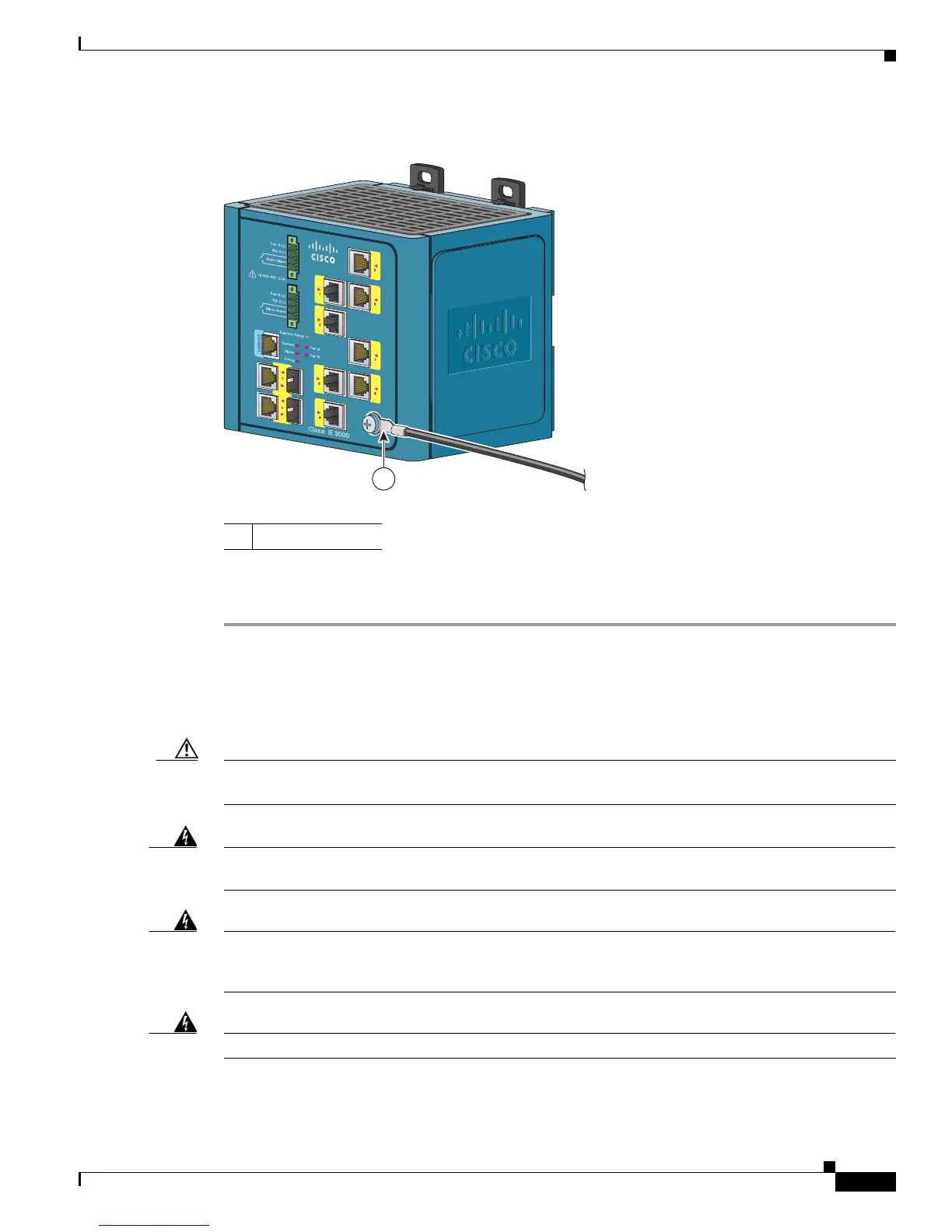

Figure B-11 Torquing Ground-Lug Screws
Step 7 Attach the other end of the ground wire to a grounded bare metal surface, such as a ground bus, a
grounded DIN rail, or a grounded bare rack.
Wiring the DC Power Source
Read these warnings before wiring the DC power source:
Caution This product is intended to be supplied by a Listed Class 2 power source marked with "Class 2" and rated
from 18 to 60 VDC, 2.1 A.
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Statement 1022
Warning This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that
the protective device is rated not greater than:
5A. Statement 1005
Warning Installation of the equipment must comply with local and national electrical codes. Statement 1074
1 Ground cable
1
201696

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
