Chapter 2 Switch Installation
Installing the Switch
Step 2 Rotate all feet to the recessed positions so that the switch can mount flat on the wall or panel. See
Figure 2-22.
Step 3 Position the rear panel of the switch against the wall or a panel in the desired location. See Figure 2-24.

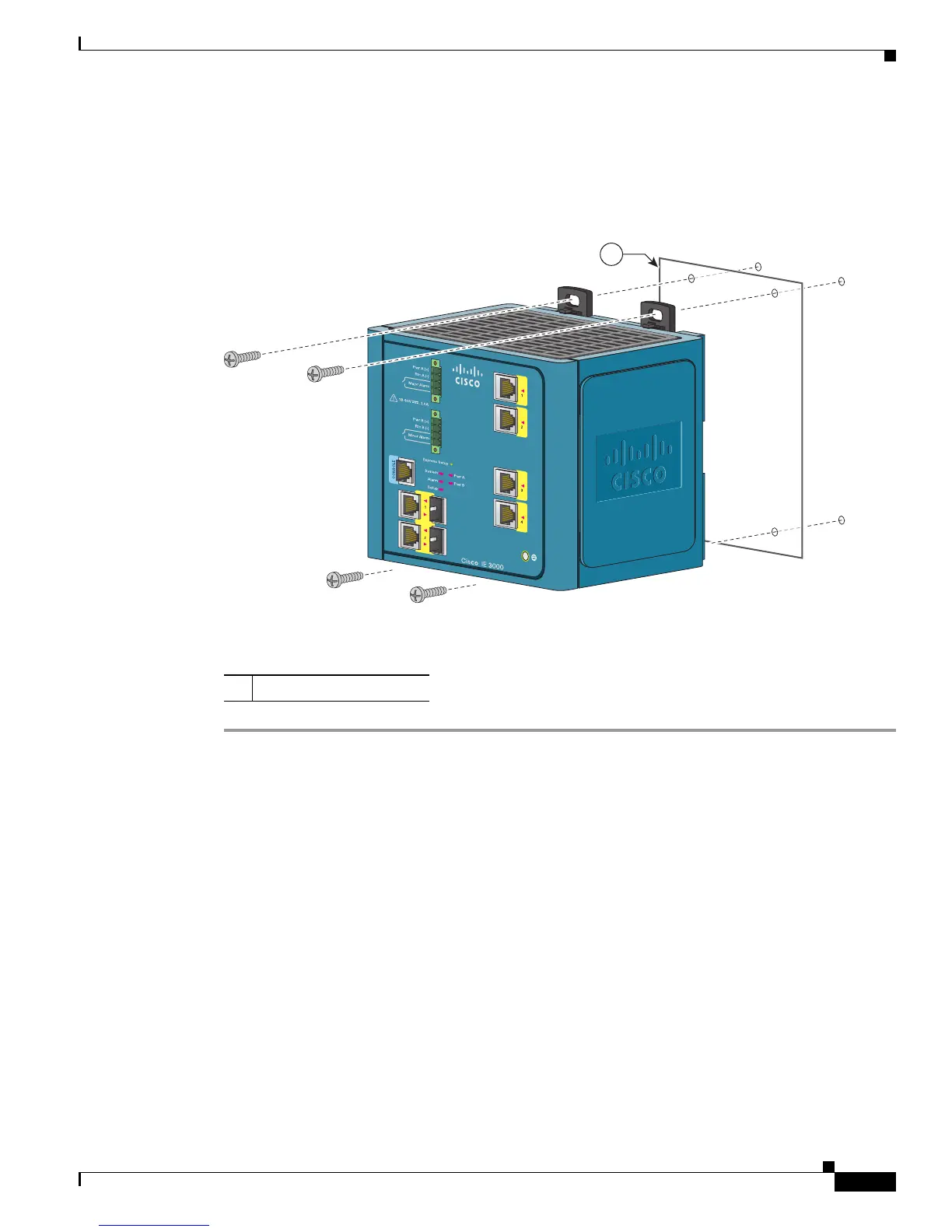

Figure 2-24 Mounting the Switch on the Wall
Step 4 Place a number-10 screw that you provide through each DIN rail latch, and screw them into the wall.
After the switch is mounted on the wall or panel, connect the power and alarm wires, as described in the
“Connecting Power and Alarm Circuits” section on page 2-32.
Installing the Switch in a Rack
You can use an optional DIN rail adapter kit (available through Cisco, part number
STK-RACKMNT-2955=) to mount the switch in a 19-inch rack. The rack-mounting kit comes with a
DIN rail adapter and screws to attach the adapter to the rack. Ask your Cisco representative for details.
1 Wall
201833
1

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
