Cisco IE 3000 Series User Manual

C-5
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Appendix C Cable and Connectors
Cable and Adapter Specifications
Two Twisted-Pair Cable Pinouts

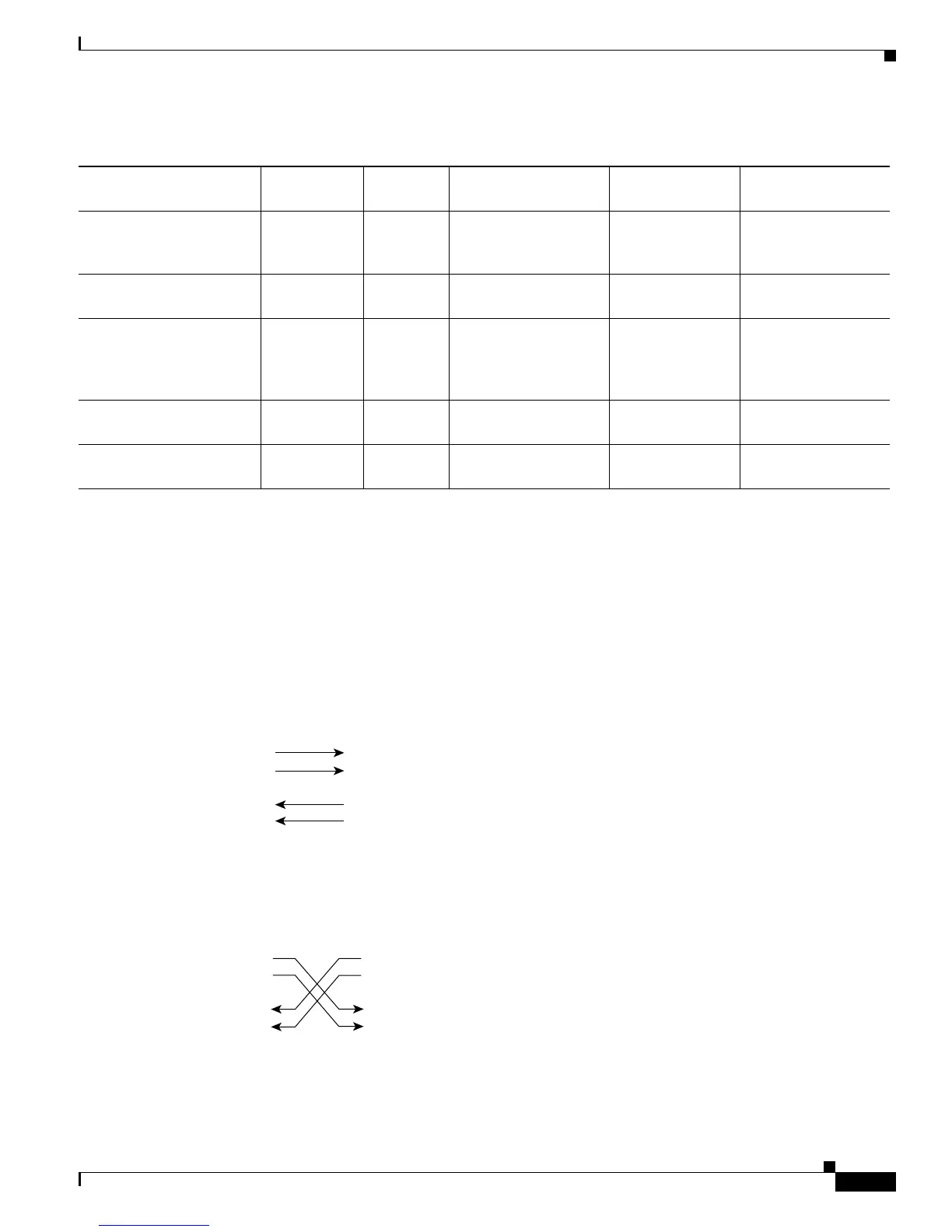

Figure C-5 and Figure C-6 show the schematics of two twisted-pair cables for connecting to 10BASE-T-
and 100BASE-TX-compatible devices.
Figure C-5 Two Twisted-Pair Straight-Through Cable Schematic
Figure C-6 Two Twisted-Pair Crossover Cable Schematic
Ta b l e C-1 Rugged Fiber-Optic SFP Module Port Cabling Specifications
SFP Module
Wavelength
(nanometers)
Fiber Type
Core Size/Cladding
Size (micron)
Modal Bandwidth
(MHz/km)
1
1. Modal bandwidth applies only to multimode fiber.
Cable Distance
100BASE-FX
(GLC-FE-100FX-RGD)
(SFF ports)
1310 MMF 50/125
62.5/125
500
500
6562 feet (2 km)
6562 feet (2 km)
100BASE-LX
(GLC-FE-100LX-RGD)
1310 SMF G.652
2
— 32,810 feet (10 km)
1000BASE-SX
(GLC-SX-MM-RGD)
850 MMF 62.5/125
62.5/125
50/125
50/125
160
200
400
500
722 feet (220 m)
902 feet (275 m)
1640 feet (500 m)
1804 feet (550 m)
1000BASE-LX/LH
(GLC-LX-MM-RGD)
1310 SMF G.652
2
— 32,810 feet (10 km)
1000BASE-ZX
(GLC-ZX-SM-RGD
1550 SMF G.652
2
— 43.4 to 62 miles
(70 to 100 km)
2
2. 1000BASE-ZX SFP modules can send data up to 62 miles (100 km) by using dispersion-shifted SMF or low-attenuation SMF. The distance depends on
the fiber quality, the number of splices, and the connectors.
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
