Appendix C Cable and Connectors
Cable and Adapter Specifications
Four Twisted-Pair Cable Pinouts for 1000BASE-T Ports

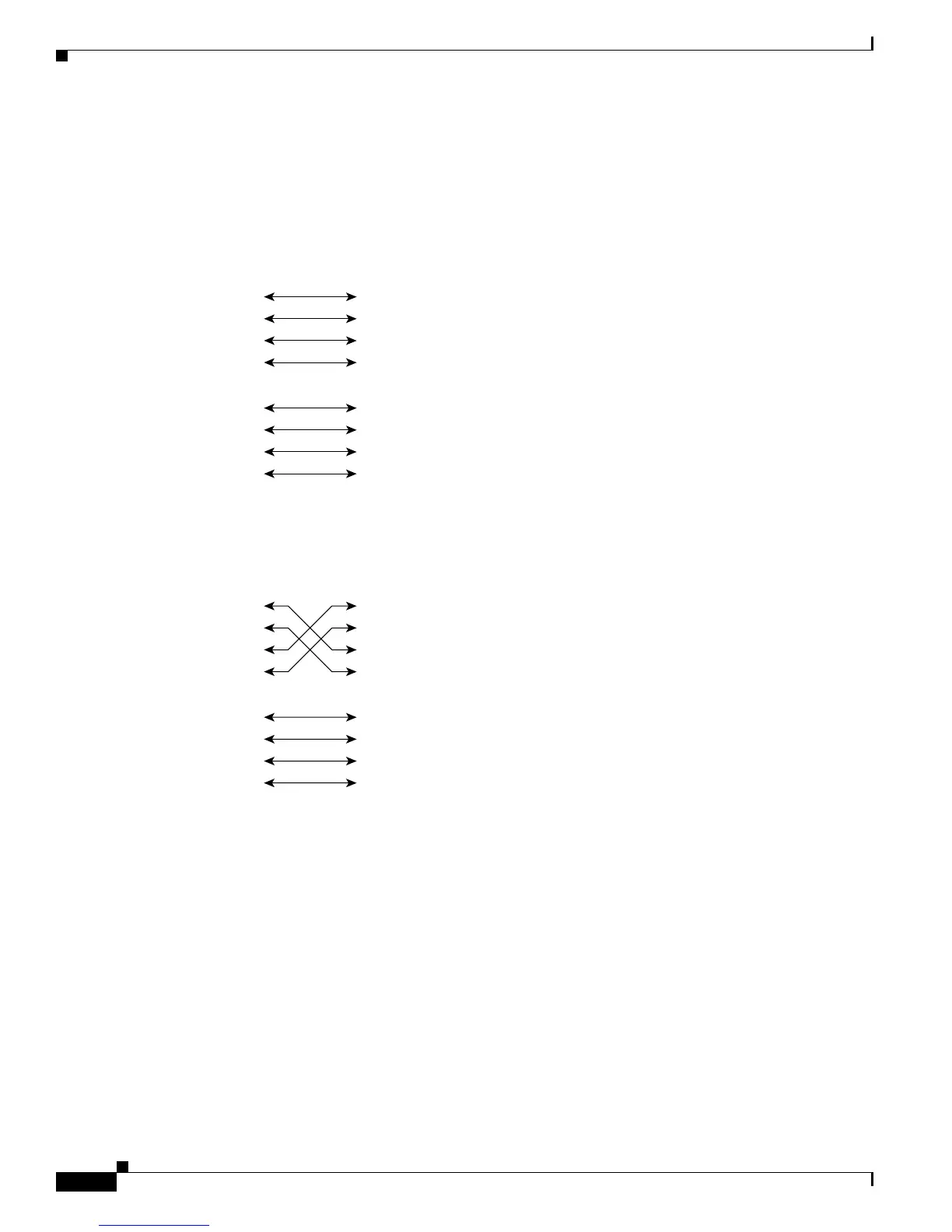

Figure C-7 and Figure C-8 show the schematics of four twisted-pair cables for 10/100/1000 ports on the
Cisco IE 3000 switches.
Figure C-7 Four Twisted-Pair Straight-Through Cable Schematic for 10/100/1000 Ports
Figure C-8 Four Twisted-Pair Crossover Cable Schematics for 10/100/1000 Ports
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP1+
Switch Router or PC
2 TP1-
3 TPO+
6 TPO-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP3+
5 TP3-
7 TP2+
8 TP2-
65272
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP0+
Switch Switch
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
65274

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
