Chapter 2 Switch Installation
Adding Modules to the Switch
Step 3 Push up the upper module latches (at the top of the switch and the module). See Figure 2-4. Push down
the lower module latches (at the bottom of the switch and the module).

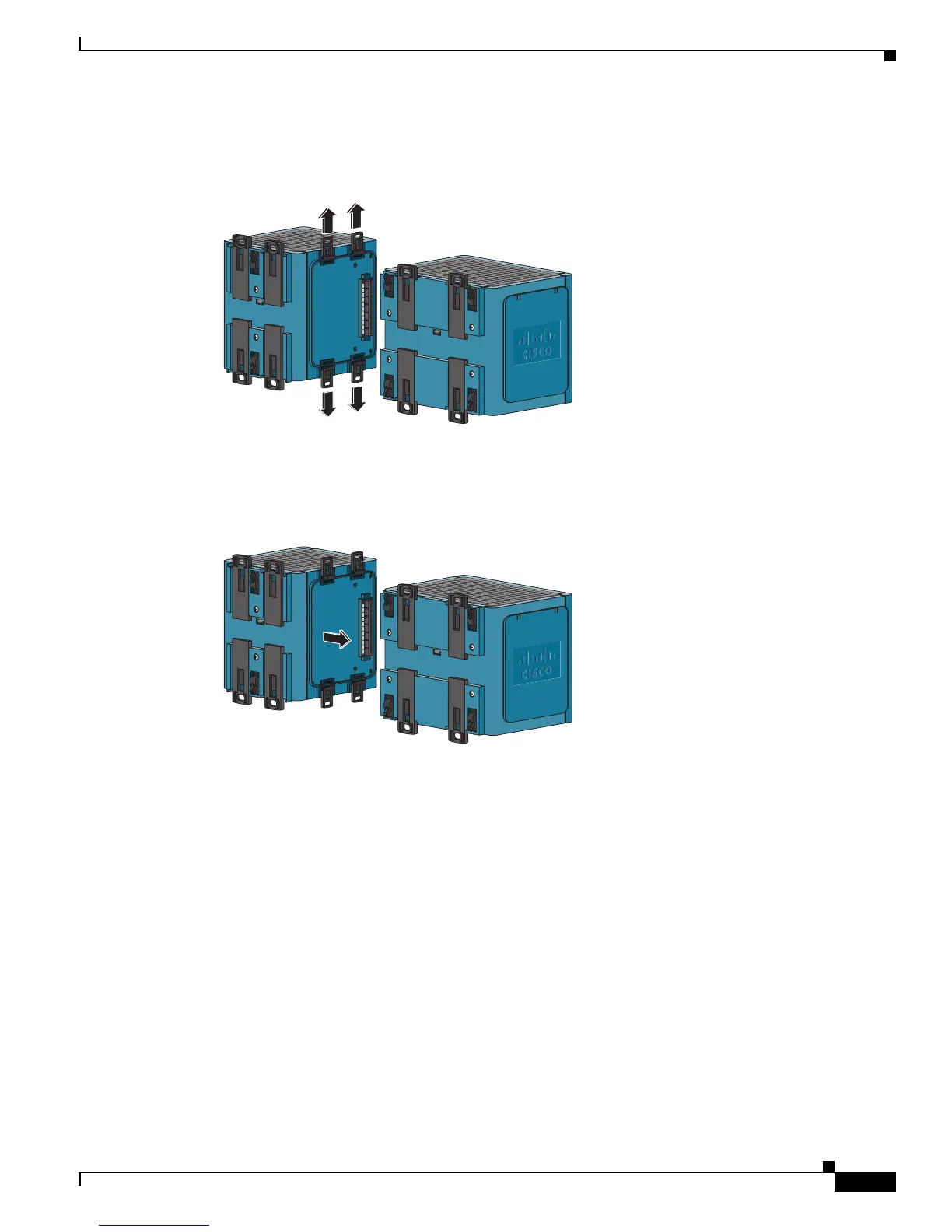

Figure 2-4 Pushing the Module Latches Up
Step 4 Align the connectors on the switch and the module, and slide the switch and the module together to make
the connection. See
Figure 2-5.
Figure 2-5 Connecting the Switch and the Module
Step 5 Push the upper module latches down and the lower latches up. See Figure 2-6.
201824
201825

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
