Cisco IE 3000 Series User Manual

2-19
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Verifying Switch Operation

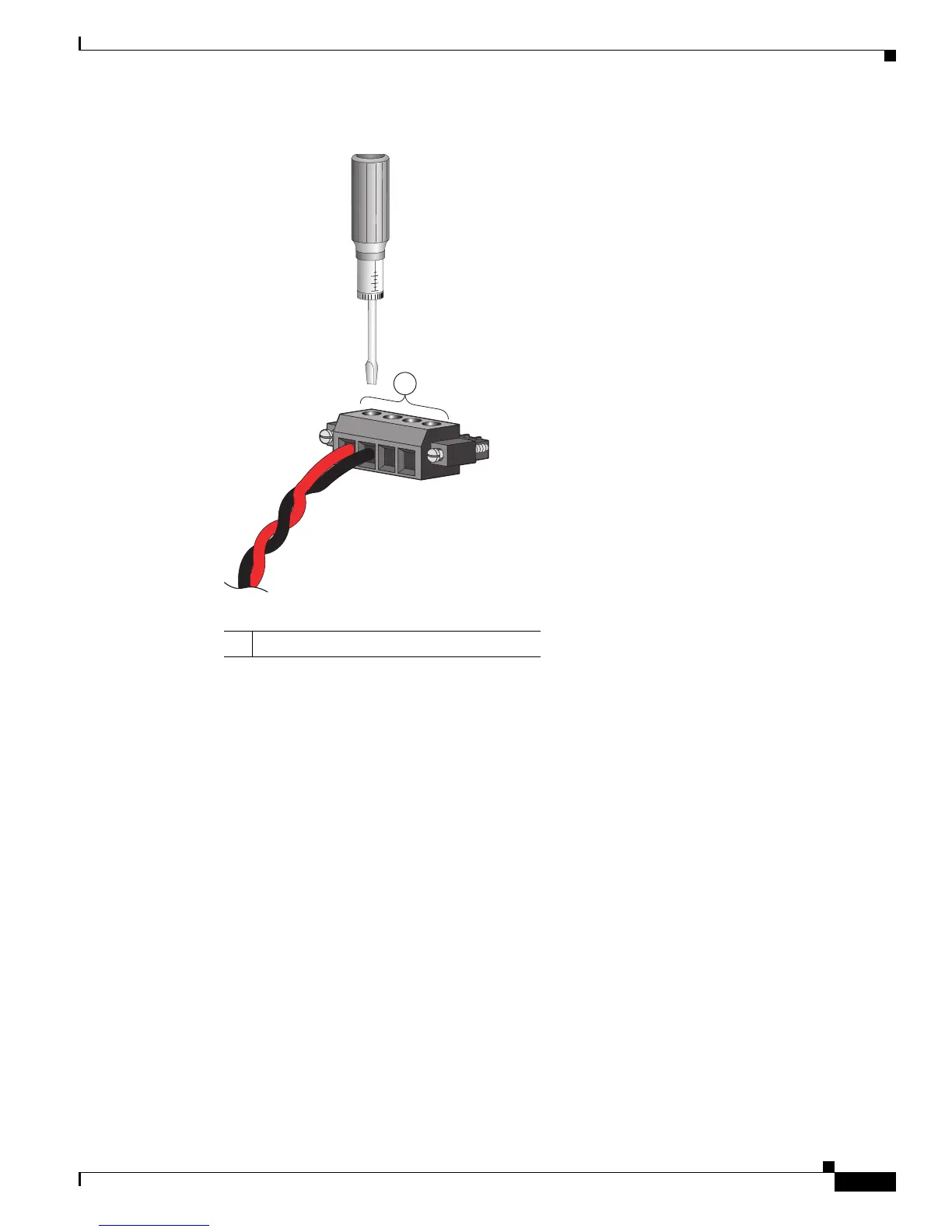

Figure 2-15 Torquing the Power and Relay Connector Captive Screws
Step 7 Connect the other end of the positive wire (the one connected to V) to the positive terminal on the DC
power source, and connect the other end of the return wire (the one connected to RT) to the return
terminal on the DC power source.
When you are testing the switch, one power connection is sufficient. If you are installing the switch and
are using a second power source, repeat
Step 4 through Step 7 using a second power and relay connector.
Figure 2-16 shows the completed DC-input wiring on a power and relay connector for a primary power
source and an optional secondary power source.
1 Power and relay connector captive screws
201817
RT
A
V
A
1

Cisco IE 3000 Series Specifications

General

Series	IE 3000
Form Factor	Compact, ruggedized
Power Supply	24 VDC
Mounting	DIN rail
Management	Web-based, CLI, SNMP
Network Protocols	IEEE 802.3
MAC Address Table Size	8000
Input Voltage	24 VDC
Power Consumption	Varies by model and configuration
Dimensions	Varies by model
Weight	Varies by model
MTBF	Varies by model
PoE	Available on select models (PoE and PoE+)
Category	Industrial Ethernet Switch
