2-24
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Installing the Switch
The illustrations in this procedure show how to install the switch as a standalone device. The same steps
can be used to install a switch with expansion modules on the DIN rail.
To attach the switch to a DIN rail, follow these steps.
Step 1 Use a flathead screwdriver to press in the space next to the tab on each of the latches and turn the screw
driver clockwise. See
Figure 2-19.

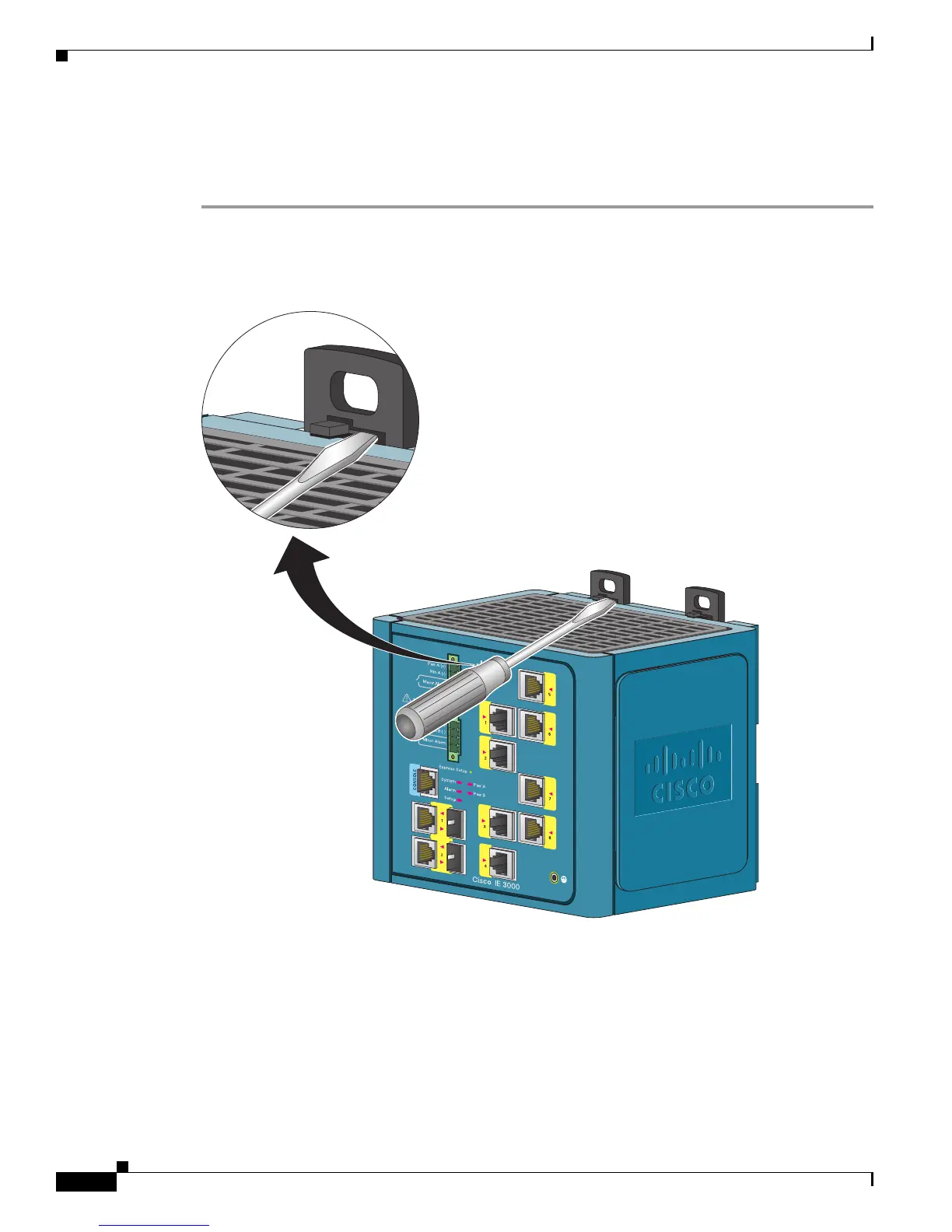

Figure 2-19 Unlock the Switch Latch
270302
