Connecting the Switch to the Power Converter
Note Use copper conductors only, rated at a minimum temperature of 167°F (75°C).
Connecting the AC Power Cord to the Power Converter
The following instructions are provided for a qualified electrician to attach the AC power cord to the
power supply.
Caution AC power sources must be dedicated AC branch circuits. Each branch circuit must be protected by a
dedicated two-pole circuit breaker.
Caution Do not insert the power cord into the AC outlet until the process of wiring the line, neutral, and ground
connections has been completed.
To connect the AC power cord to the power converter, follow these steps:
Step 1 Remove the plastic cover from the input power terminals and set it aside. See Figure 2-42.

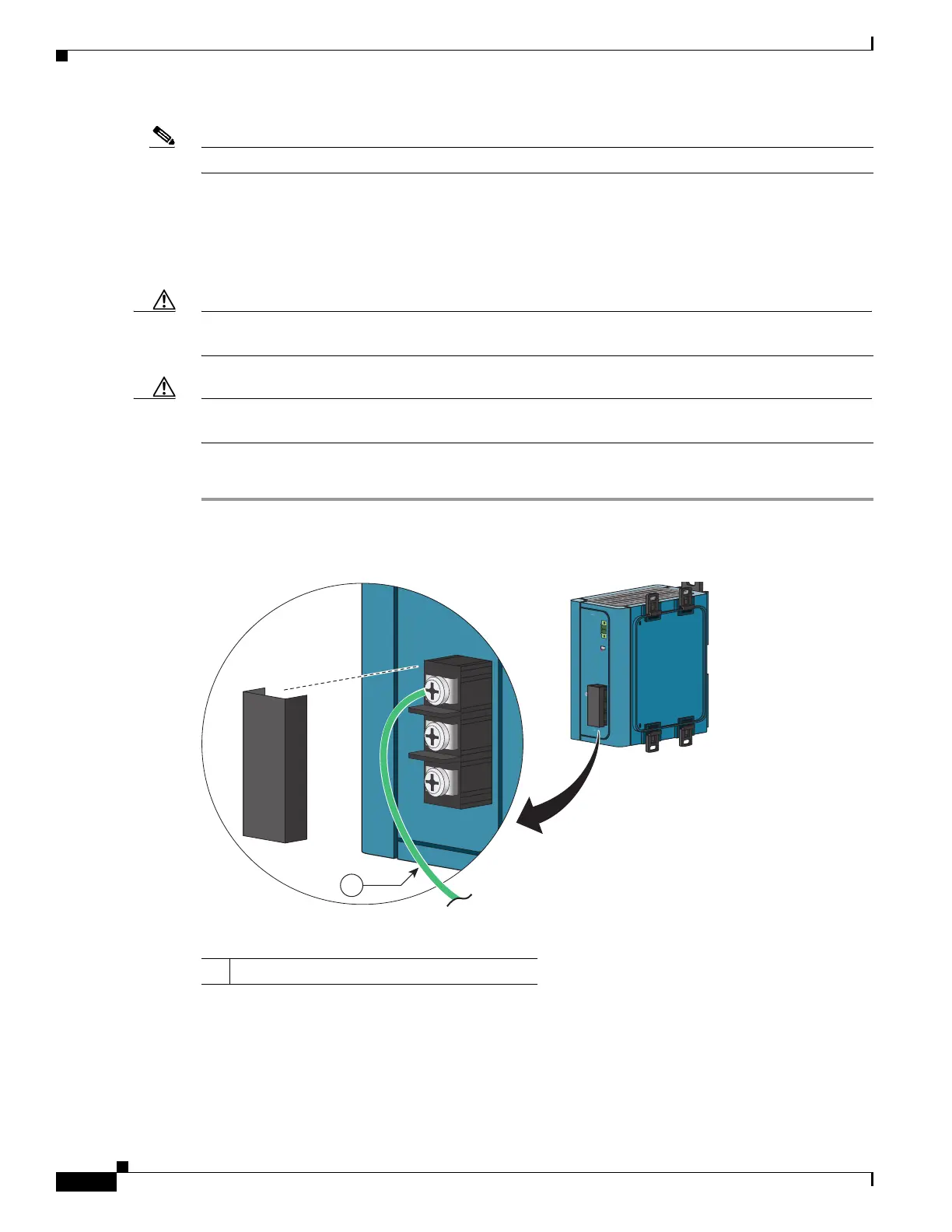

Figure 2-42 AC/DC Power Input Terminal Block
Step 2
Insert the exposed ground wire lead into the power converter ground wire connection. Ensure that only
wire with insulation extends from the connector. See Figure 2-43.
1 Ground wire
D
C
O
K
2
4
V
,
2.
1
A
Rtn
O
ut
(
-
)
P
wr Out
(+
)
1
2
5
-
2
5
0
V
,
1
.
2
5
A
M
A
X
1
0
0
-
2
4
0
V
~
,
5
0-
6
0
H
z
/
N
/
L
/
202299
1
