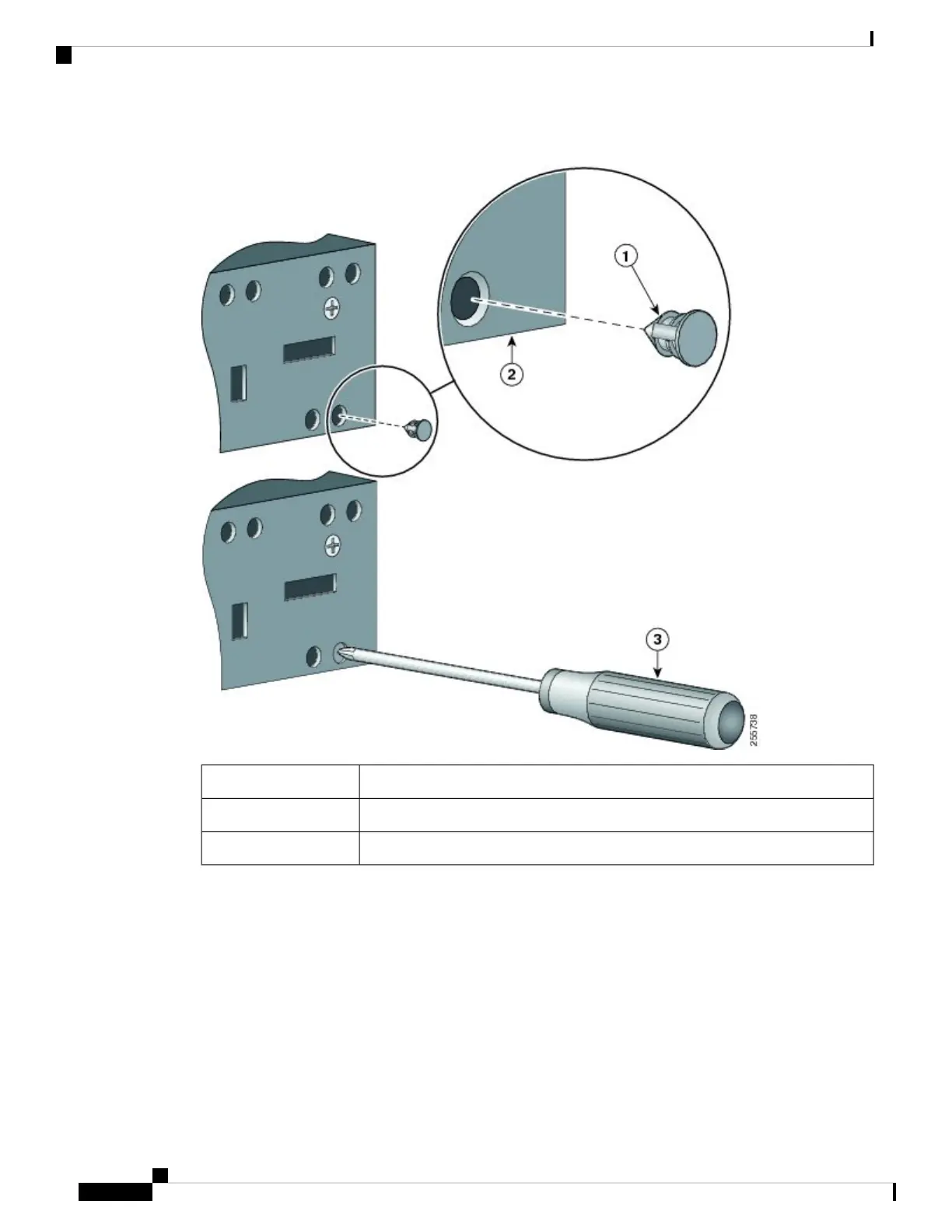

Figure 9: Inserting the Rubber Plug
Rubber plug1
Switch2
Screwdriver3
1. Identify your bracket mounting position. See Attaching Brackets for 19-Inch Racks, on page 18.
2. Insert the rubber plugs in the appropriate holes on both sides of the switch.
3. Use a screwdriver or pen to completely push in the rubber plugs.
4. Install the brackets on both sides of the switch. See Attaching Brackets for 19-Inch Racks, on page 18.
Cisco IE 4010 Switch Hardware Installation Guide
20
Switch Installation
Attaching Brackets for 19-Inch Racks for IP-30 Compliance (Optional)
