CHAPTER 6
Cable and Connectors
This chapter contains the following sections:
• Connector Specifications, on page 61
• Cables and Adapters, on page 63
Connector Specifications
This section contains the following:
10/100/1000 Ports
The 10/100/1000 Ethernet ports on the switches use RJ-45 connectors. The following figure shows the pinouts.

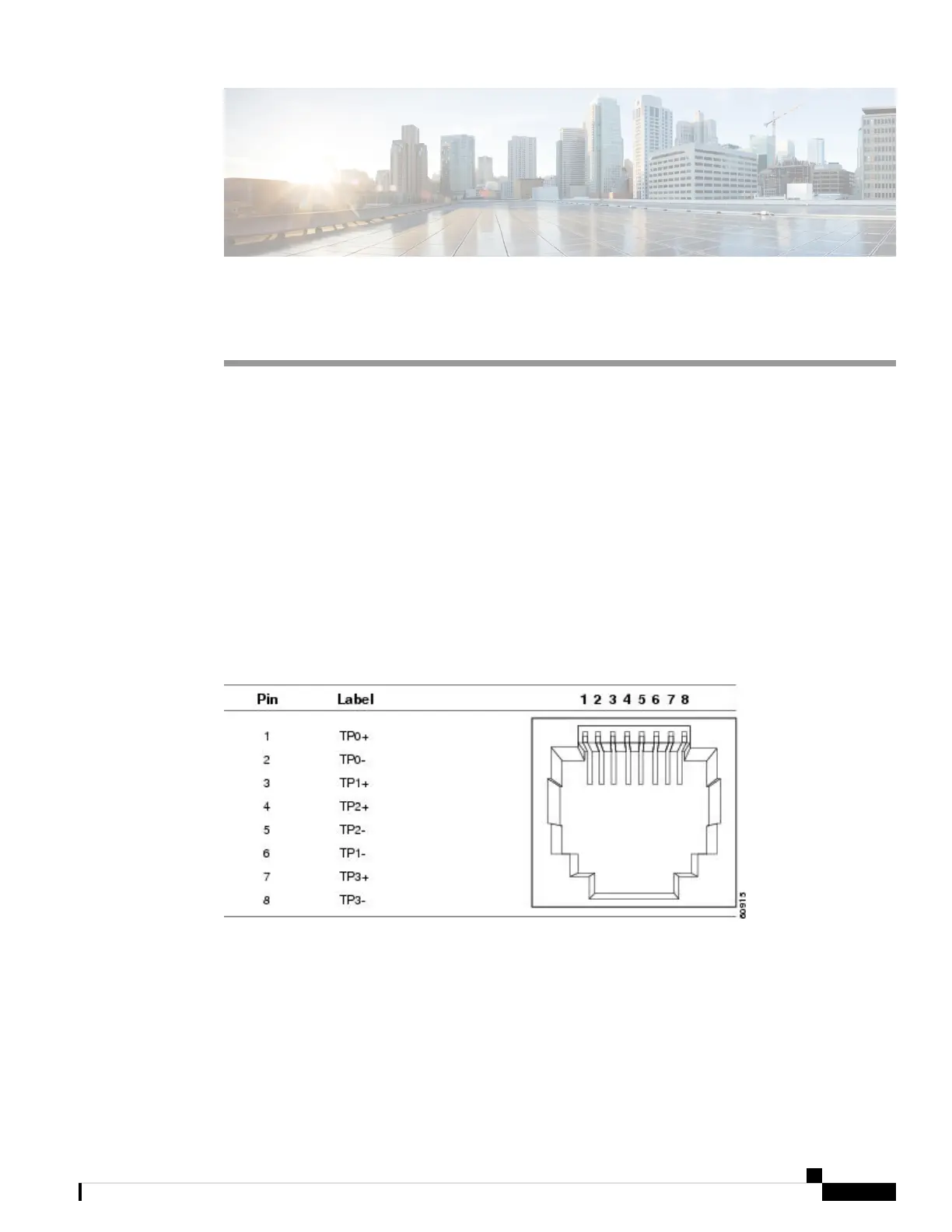

Figure 35: 10/100/1000 Port Pinouts
Connector pins 1, 2, 3, and 6 are used for PoE.
SFP Module Connectors
The following figure shows a LC style connector that is used with the SFP Module slots. It is a fiber-optic
cable connector.
Cisco IE 4010 Switch Hardware Installation Guide
61
