Removing SFP Modules
1. Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface.
2. Disconnect the cable from the SFP module. For reattachment, note which cable connector plug is send
(TX) and which is receive (RX).
3. Insert a dust plug into the optical ports of the SFP module.
4. If the module has a bale-clasp latch, pull the bale out and down to eject it. If the latch is obstructed and
you cannot use your finger, use a small, flat-blade screwdriver or other long, narrow instrument.
5. Grasp the SFP module, and carefully remove it from the slot.
6. Place the module in an antistatic bag or other protective environment.

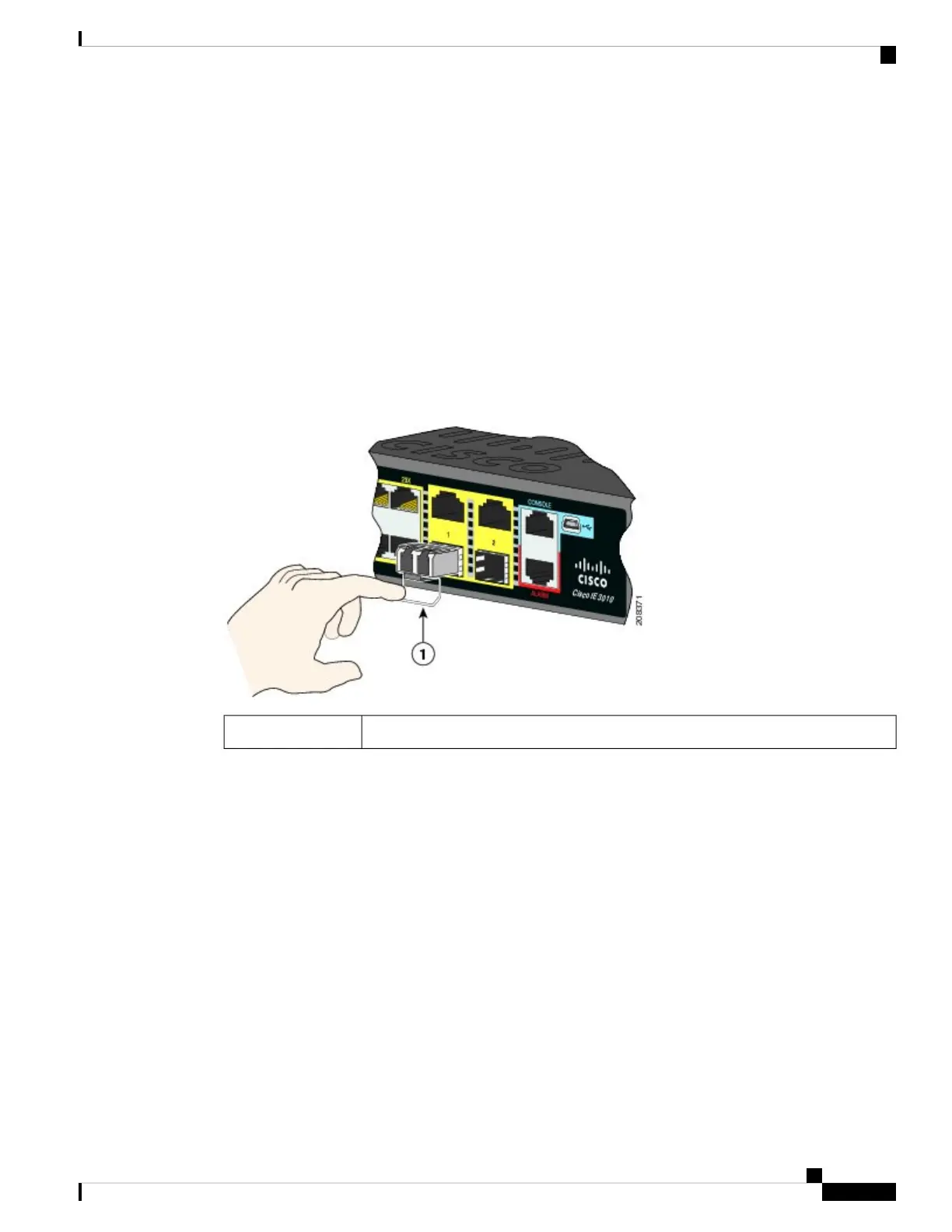

Figure 18: Removing a Bale-Clasp Latch SFP Module
Bale clasp1
Replacing the SD Flash Memory Card
1. Locate the flash memory card slot on the cable-side of the switch.
2. Loosen the captive thumb screw. (Be careful not to cross-thread or over-tighten the thumb screw.)
3. Pull the cover open, and pull the cover tab from the hinge.
4. Gently push the flash memory card to eject it. Place it in an anti-static bag to protect it from static discharge.
5. Push the replacement card into the slot, and press it firmly in place. The card is keyed so that you cannot
insert it the wrong way.
6. Place the flash card slot cover tabs into the hinge.
7. Close the cover, and hand-tighten the screw.
Cisco IE 4010 Switch Hardware Installation Guide
33
Switch Installation
Removing SFP Modules
