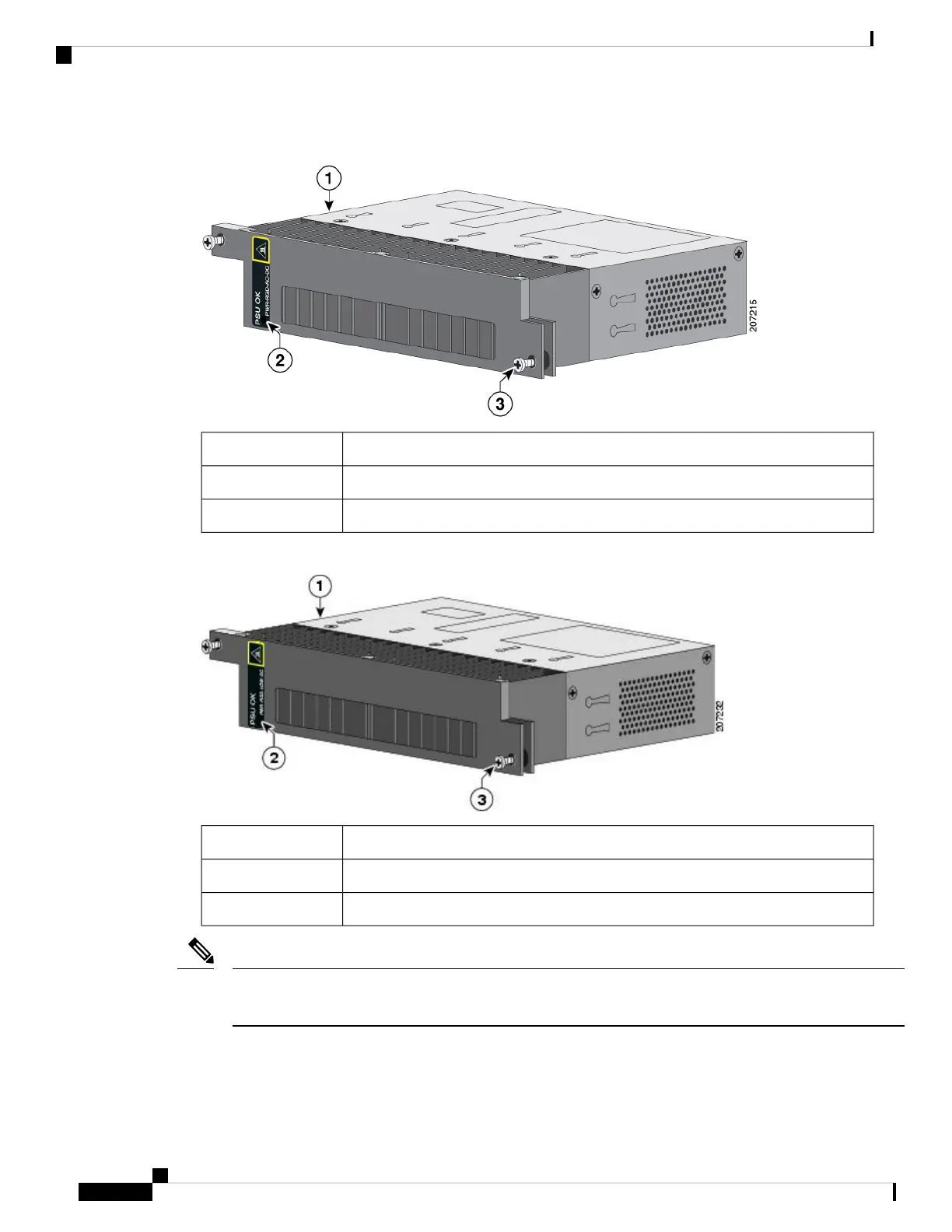

Figure 19: PWR-RGD-AC-DC-H Power-Supply Module
Power-supply module1
PSU OK LED2
Captive screw3
Figure 20: PWR-RGD-LOW-DC-H Power-Supply Module
Power-supply module1
PSU OK LED2
Captive screw3
Power Supplies with the -H suffix are required for hazardous environment installations. Non hazardous
environments may use either -H or non -H supplies.
Note
For a description of the PSU OK LEDs, see Power-Supply Module LEDs, on page 10.
