Simple IP Unclassified MAC with Web Login Authentication Call Flow
The following figure illustrates the unclassified MAC with web login authentication MAC TAL call flow for
a simple IP user.

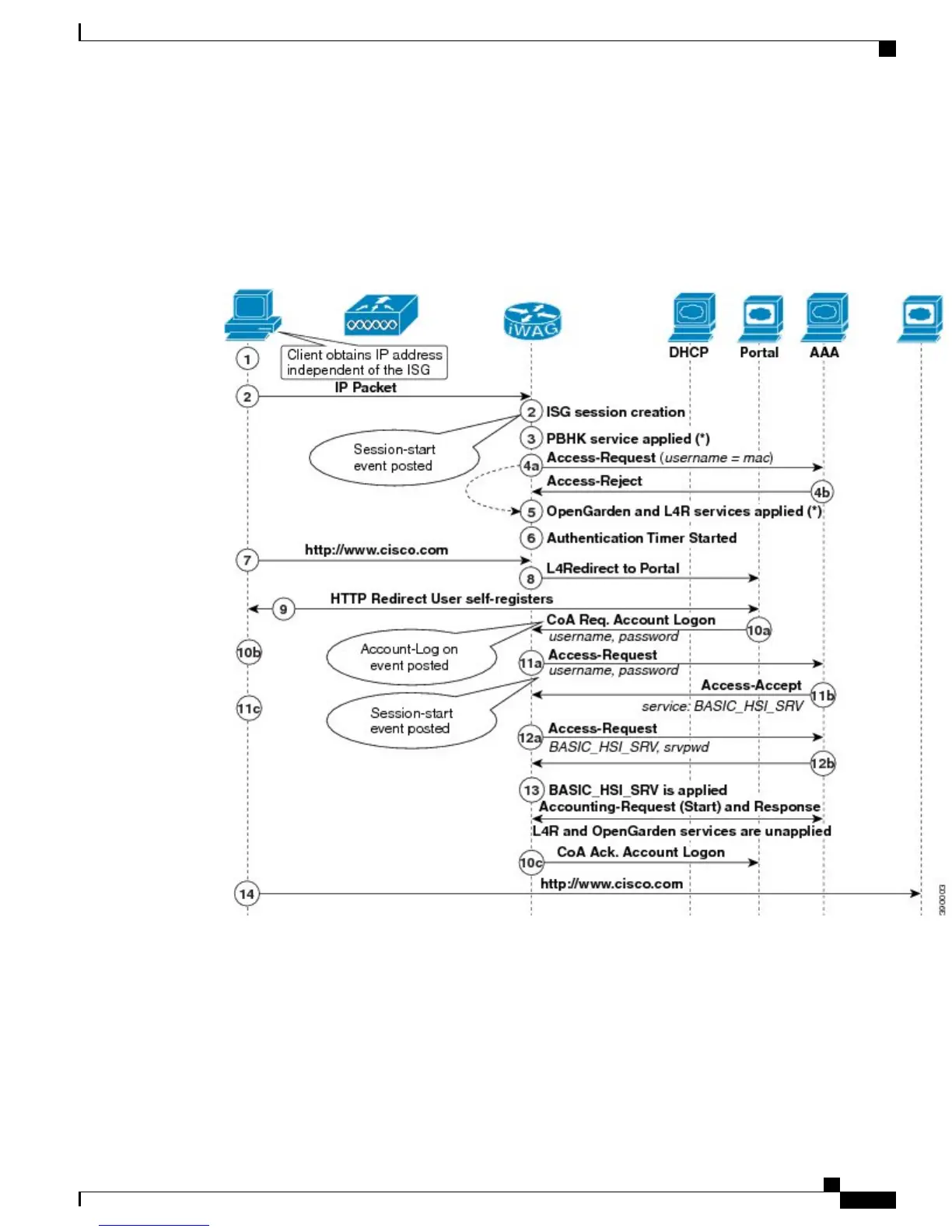

Figure 11: Simple IP Unclassified MAC with Web Login Authentication Call Flow
The following steps describe the call flow for a successful MAC TAL Web authorization for a simple IP
subscriber:
1
The subscriber initiates IP traffic to get connected to the Internet service. ISG notices a new subscriber
address and creates an unauthenticated subscriber session.
2
ISG then sends an authorization request to the RADIUS server with the subscriber’s MAC address as the
username.
Intelligent Wireless Access Gateway Configuration Guide
OL-30226-03 95
Call Flows for Simple IP Users
Simple IP Unclassified MAC with Web Login Authentication Call Flow
