Cisco Intelligent Wireless Access Gateway User Manual

Dual-Stack Mobile IPoE Session with DHCPv4 as FSOL for GTP
Call Flow
The following figure and steps describe the call flow pertaining to a Dual-Stack Mobile IP over Ethernet
(IPoE) session with Dynamic Host Configuration Protocol version 4 (DHCPv4) as first sign of life (FSOL)
for GTP.

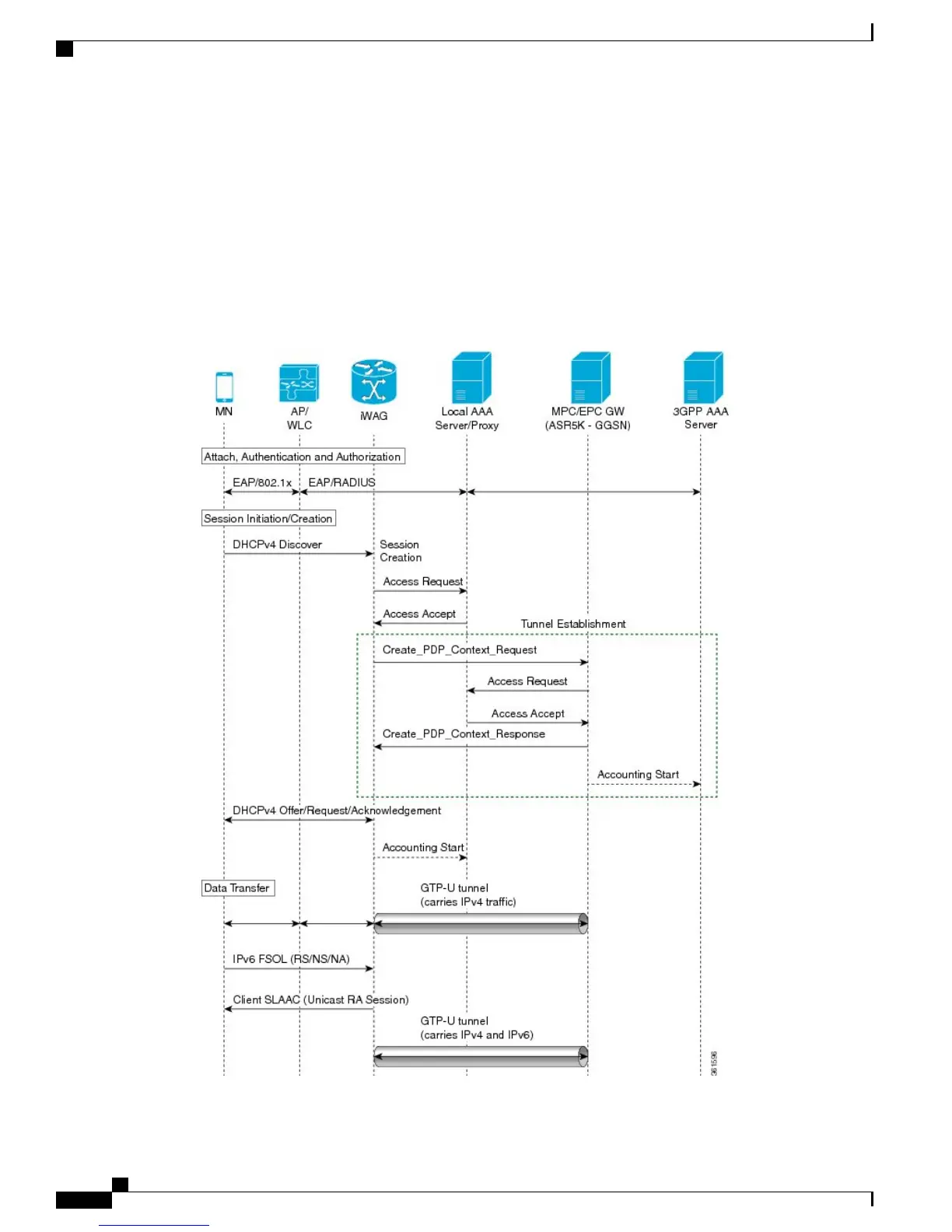

Figure 18: Dual-Stack Mobile IPoE Session with DHCPv4 as FSOL for GTP Call Flow
Intelligent Wireless Access Gateway Configuration Guide
124 OL-30226-03
Call Flows for Dual-Stack PMIPv6 and GTP
Dual-Stack Mobile IPoE Session with DHCPv4 as FSOL for GTP Call Flow
