The following figure shows a rail mounted into a rack in the proper position with respect to a rack-unit
boundary. Measurements are in inches between the centers of the holes.

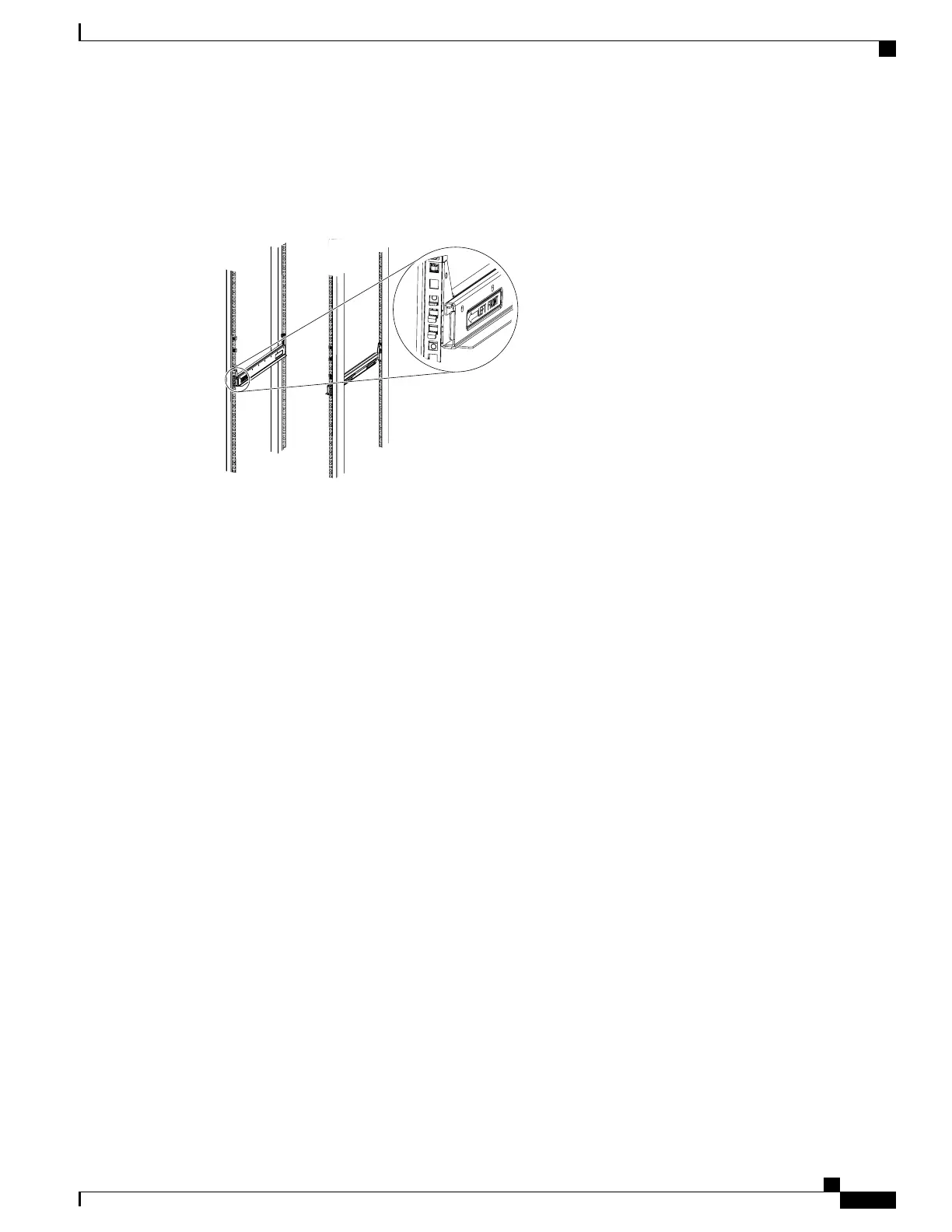

Figure 25: Installing Tool-less Chassis Support Rails into the Rack
Step 4
Press down firmly on the rail until the hooks seat firmly and securely into the holes, and the spring clip latches
into place.
Step 5
Follow the same procedure to install the other rack rail.
Step 6
Use a tape measure and level to verify that the rack rails are horizontal and at the same height.
Step 7
Insert the cage nuts on to the rack in the needed square holes as shown below. When the rails are installed on
a rack unit boundary, the first two cage nuts are installed into the seventh holes above the rails’ horizontal
Cisco UCS 5108 Server Chassis Installation Guide
49
Installation
Installing the Rails
