Cisco Unified Access CT5760 User Manual

APPENDIX B
Connector and Cable Specifications
• Connector Specifications, on page 127
• Console Port, on page 128
• Cables and Adapters, on page 129
Connector Specifications
10/100/1000 Ports (Including PoE)
All 10/100/1000 ports use standard RJ-45 connectors and Ethernet pinouts.

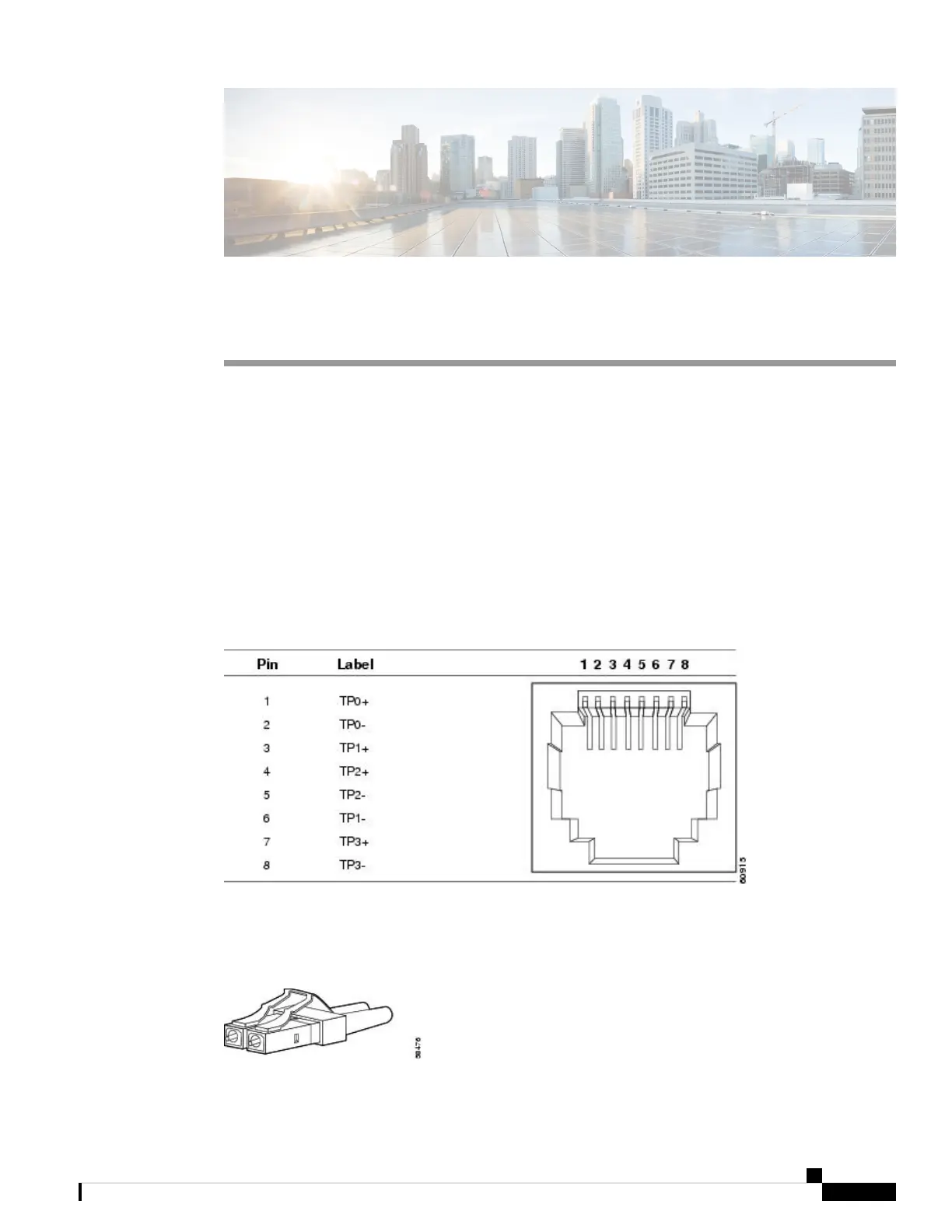

Figure 86: 10/100/1000 Port Pinouts
SFP Module Connectors
Figure 87: Duplex LC Cable Connector
Catalyst 3850 Switch Hardware Installation Guide
127OL-26779-05
