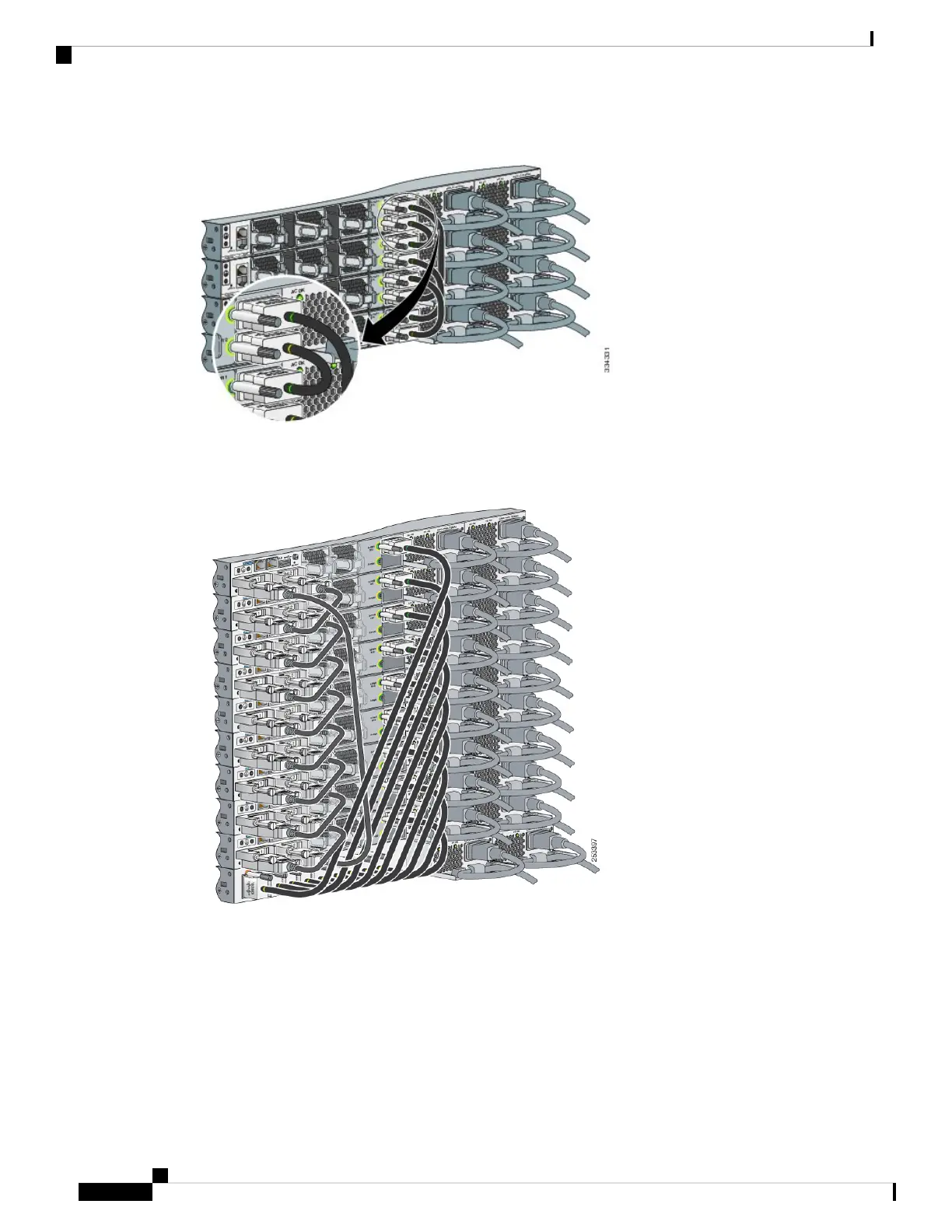

Figure 25: StackPower Ring Topology
This figure shows 9 switches connected in a star topology.
Figure 26: StackPower Star Topology
StackPower Partitioning Examples
These figures show StackPower stacks of switches with failover conditions.
In this figure, the StackPower cable 2 is faulty. Therefore, this stack does not provide redundancy.
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-0542
Switch Installation
StackPower Partitioning Examples
