Cisco VG202 Hardware Installation Guide

1-2
Cisco VG202 and Cisco VG204 Voice Gateways Hardware Installation Guide
OL-15959-01
Chapter 1 Overview of the Cisco VG202 and Cisco VG204 Voice Gateways
Physical Description
The Cisco VG202 and Cisco VG204 voice gateways can be mounted on a wall or set on a desktop
surface.

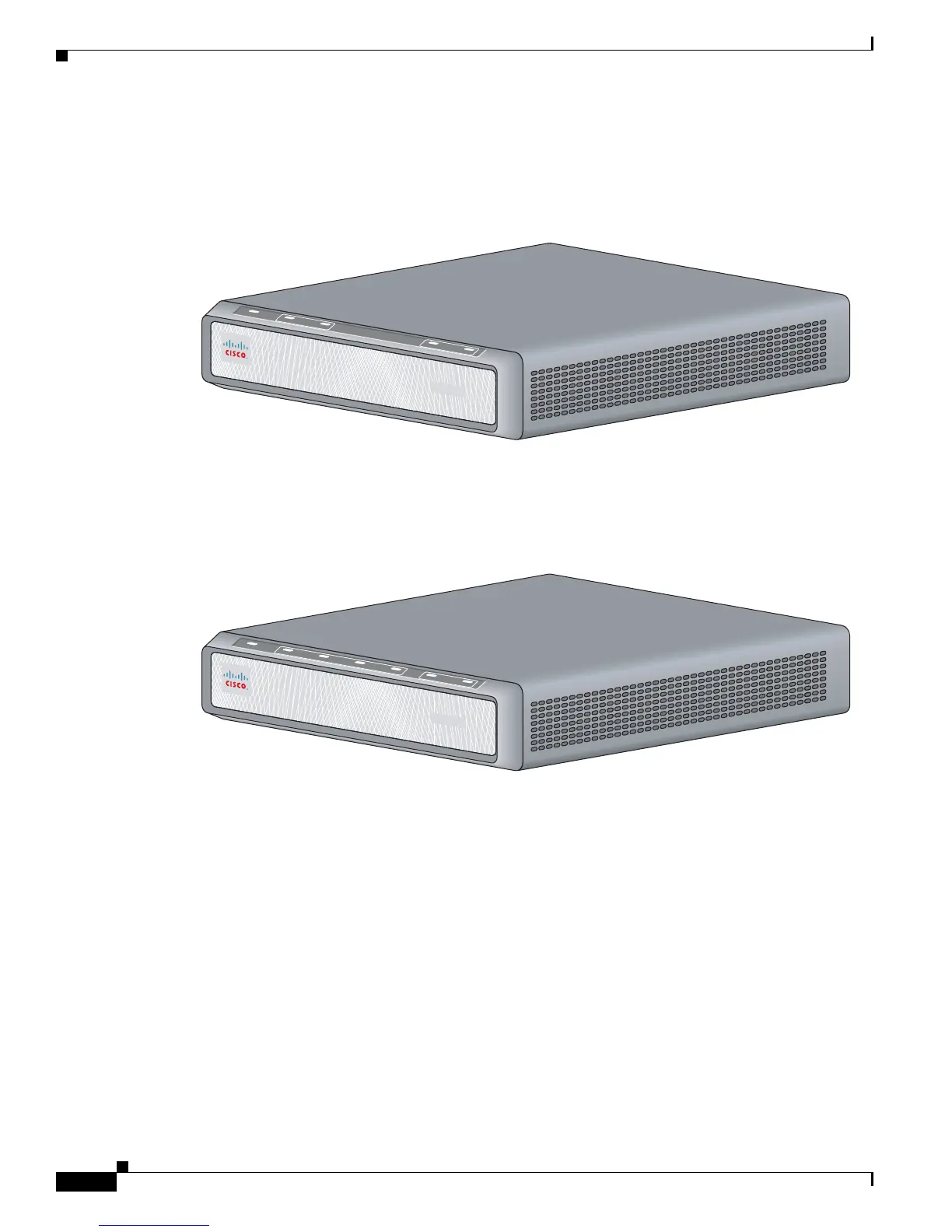

Figure 1-1 shows the Cisco VG202 chassis as seen from the front panel.
Figure 1-1 Cisco VG202 Voice Gateway Front Panel
The Cisco VG202 voice gateway supports two RJ-11 ports and supports two FXS voice ports with two
10/100 Fast Ethernet ports.
Figure 1-2 shows the Cisco VG204 chassis as seen from the front panel.
Figure 1-2 Cisco VG204 Voice Gateway Front Panel
The Cisco VG204 voice gateway supports four RJ-11ports and supports four FXS voice ports with two
10/100 Fast Ethernet ports.
Physical Description
Figure 1-3 shows the interfaces and ports on the Cisco VG202 voice gateway. Figure 1-4 shows the
interfaces and ports on the Cisco VG204 voice gateway. All interface ports are on the back of the
chassis.
231877
V
G2
02
OK
F
XS
0
/
0
0
/
1
F
E
0
/
0
0
/
1
231875
V
G2
04
O
K
F
XS
0
/
0
0
/
1
0
/
2
F
E
0/
00/
1
0
/
3

Cisco VG202 Specifications

General

Product Type	Voice Gateway
Voice Ports	2 FXS ports
Network Interfaces	1 x 10/100Base-TX
Protocols Supported	SIP
Operating Temperature	32°F to 104°F (0°C to 40°C)
Relative Humidity	10 - 90% (non-condensing)
