Cisco VG202

1-3
Cisco VG202 and Cisco VG204 Voice Gateways Hardware Installation Guide
OL-15959-01
Chapter 1 Overview of the Cisco VG202 and Cisco VG204 Voice Gateways
Physical Description

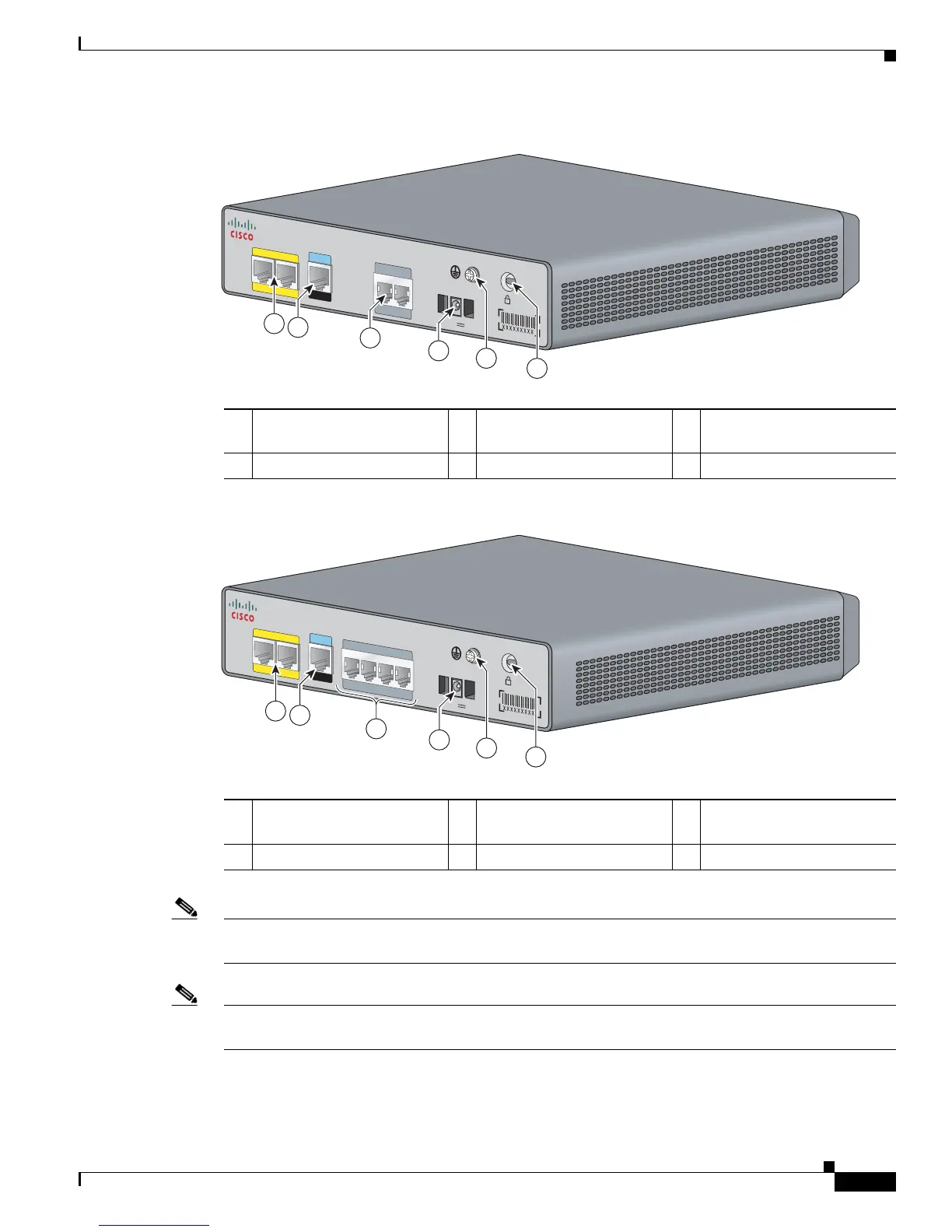

Figure 1-3 Cisco VG202 Voice Gateway Chassis
Figure 1-4 Cisco VG204 Voice Gateway Chassis
Note A Kensington security slot is located on the back panel of the voice gateway. To secure the voice
gateway to a desktop or other surface, use the Kensington lockdown equipment.
Note The Fast Ethernet built-in switch ports provide connections to 10/100BASE-T (10/100-Mbps) Fast
Ethernet networks.
1 Fast Ethernet port 1,
Fast Ethernet port 0
2 Serial port—console or
auxiliary
3 FXS ports
4 Power connector 5 Chassis ground connection 6 Kensington security slot
231880
12V DC SA
C
ONSOL
E
AUX
FastEthernet
0/1
0/0
VG202
FXS
0/1
0/0
1
2
3
4
6
5
1 Fast Ethernet port 1,
Fast Ethernet port 0
2 Serial port—console or
auxiliary
3 FXS ports
4 Power connector 5 Chassis ground connection 6 Kensington security slot
231940
VG204
12V
DC SA
CONSOLE
AUX
FastEthernet
0/1
0/0
FXS
0/1
0/20/3
0/0
3
1
2
4
6
5
