Chapter 3 Installing the VG248
Connecting the VG248 to the Network
3-10
Cisco VG248 Analog Phone Gateway Hardware Installation Guide
78-13154-01
Connecting to the FXS Telco Connectors
Use one of the two 24-port FXS telco connectors to connect the VG248 to the
analog devices (see Figure 3-6).

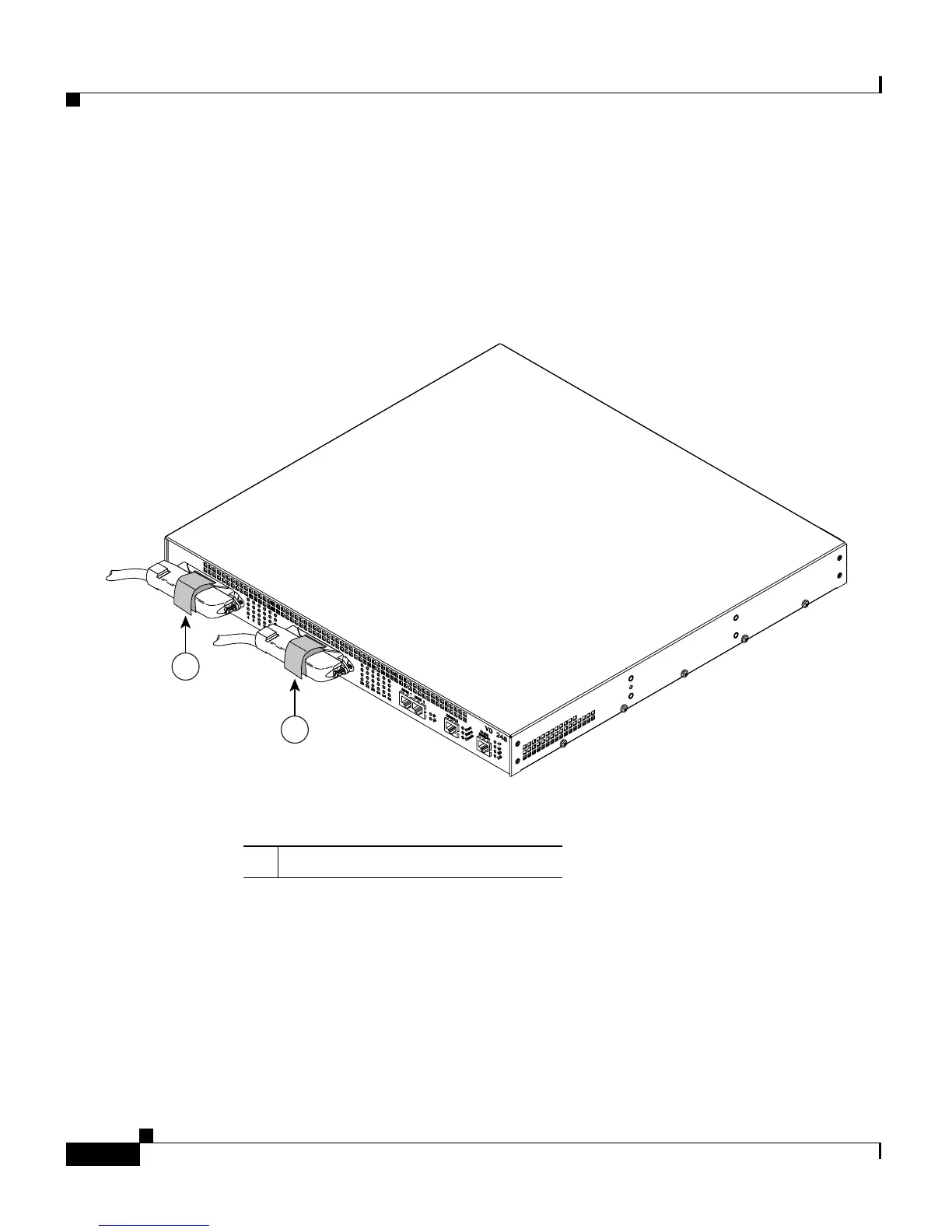

Figure 3-6 Connecting to the Telco Connectors on the VG248
Connecting Power
Provide power to the VG248 by plugging the power cord (included) into the AC
power adapter on the rear panel (see Figure 3-7).
1 FXS telco connectors
58934
1
1
