Citizen CL-S521 User Manual

12
Chapter 1 Setup

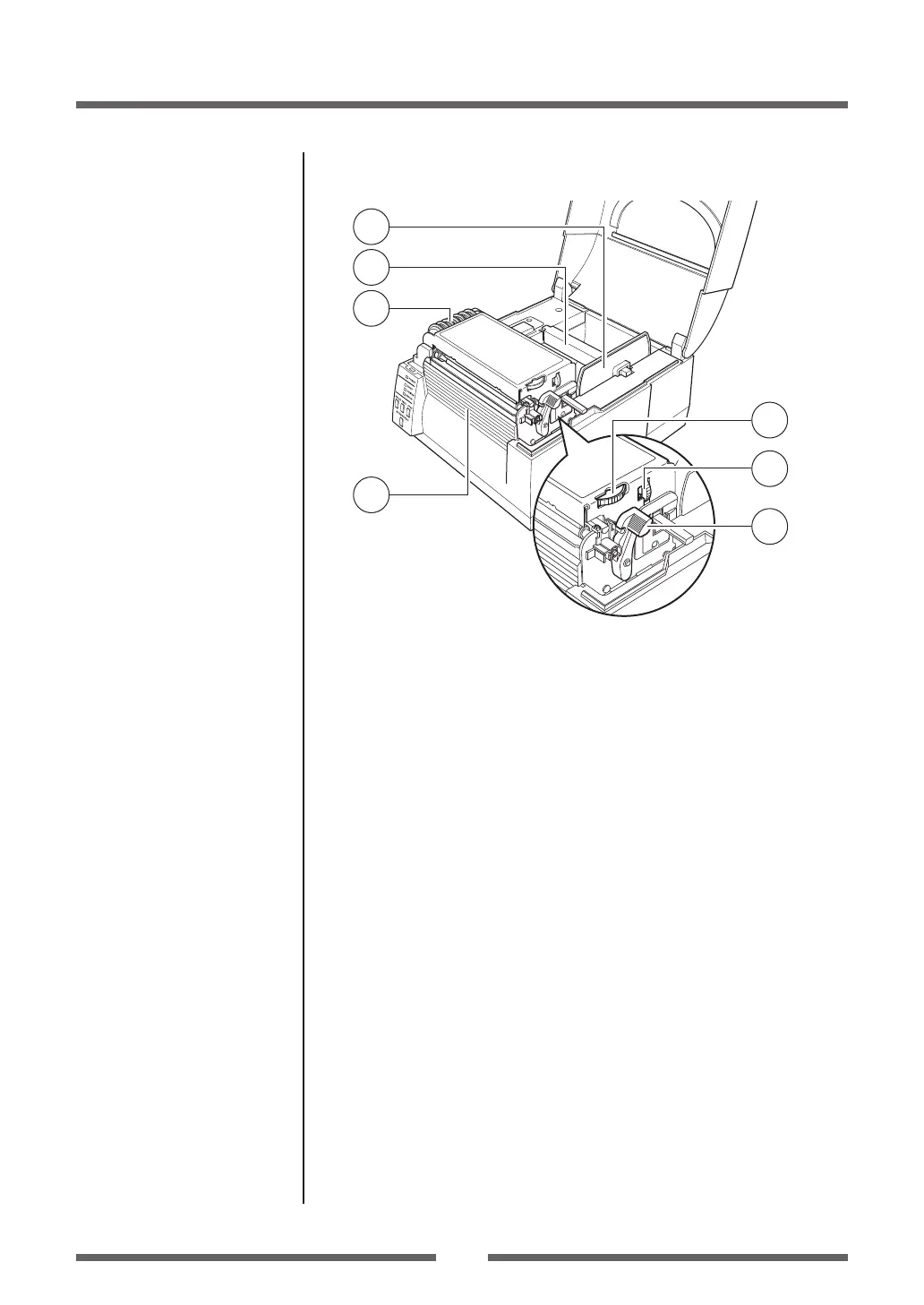

Part Names and Functions
8
7
9
10
11
5
6
5
Media holder bar
The media is supported by the media holder bar when installed in the
printer.
6
Media holder guide
This guide is moved horizontally to match the media size.
The guide can be sliding it from the holder bar.
7
Motor cover
It discharges the heat of the media feed motor.
Do not cover it with media etc.
8
Front cover
It is removed to install optional units such as the peeler or cutter.
9
Media width adjustment dial
It is adjusted to match the width of the media.
a
Media thickness adjustment dial
It is adjusted to match the thickness of the media.
b
Large blue-head open lever
The head unit can be raised to install media by pushing this lever.
It locks the head unit during printing.
Media Width Adjustment (p.43)
Media Thickness Adjustment
(p.42)

Citizen CL-S521 Specifications

General

Print technology	Direct thermal
Maximum resolution	203 DPI
PC connected	Yes
Standard interfaces	USB 1.1, Serial
Optional connectivity	Ethernet, Serial (RS-232)
USB 1.1 ports quantity	1
Connectivity technology	Wired
Flash memory	4 MB
Internal memory	16 MB
Compatible operating systems	Windows 7/XP/2003/2008/Vista
Form factor	Desktop
Core diameter	25 mm
Media thickness	0.0635 - 0.254 mm
Maximum media length	1625.6 mm
Maximum roll diameter	125 mm
Supported paper width	12.5 - 118.1 mm
Media thickness (imperial)	0.0025 - 0.01 \
Supported paper width (imperial)	0.50 - 4.65 \
Product color	Gray
Housing material	Metal, Plastic

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	183 mm
Weight	3600 g
