1-4. Adjustable Sensors
1-4. Adjustable Sensors 1-4. Adjustable Sensors
1-9 CLP-621 & CLP-631 1-9 CLP-621 & CLP-631
There are two media sensors; the upper sensor (transparent sensor) and the bottom sensor
(reflective sensor). The upper sensor is used to detect the labels on the liner or the U-shaped
notches of tag. The bottom sensor is used to detect the black marks on tag. Also, both sensors are
used to detect media end.
The mechanical adjustable range of both sensors is equal and they are adjustable independently.
When both sensors are moved to the left end or the right end (center of the printing mechanism),
both sensors coincide for detecting notch or label.
For details about the media sensors, refer to 2-1-3 "Label/Tag Detection Mechanism".
Maximum media width: 118 mm (4.65")
H
R
Media guide
Direction of media feed
2.5 mm
(
0.10"
)
Unprintable area
Unprintable area
-0.2 to 57.9 mm
(-0.01 to 2.28")

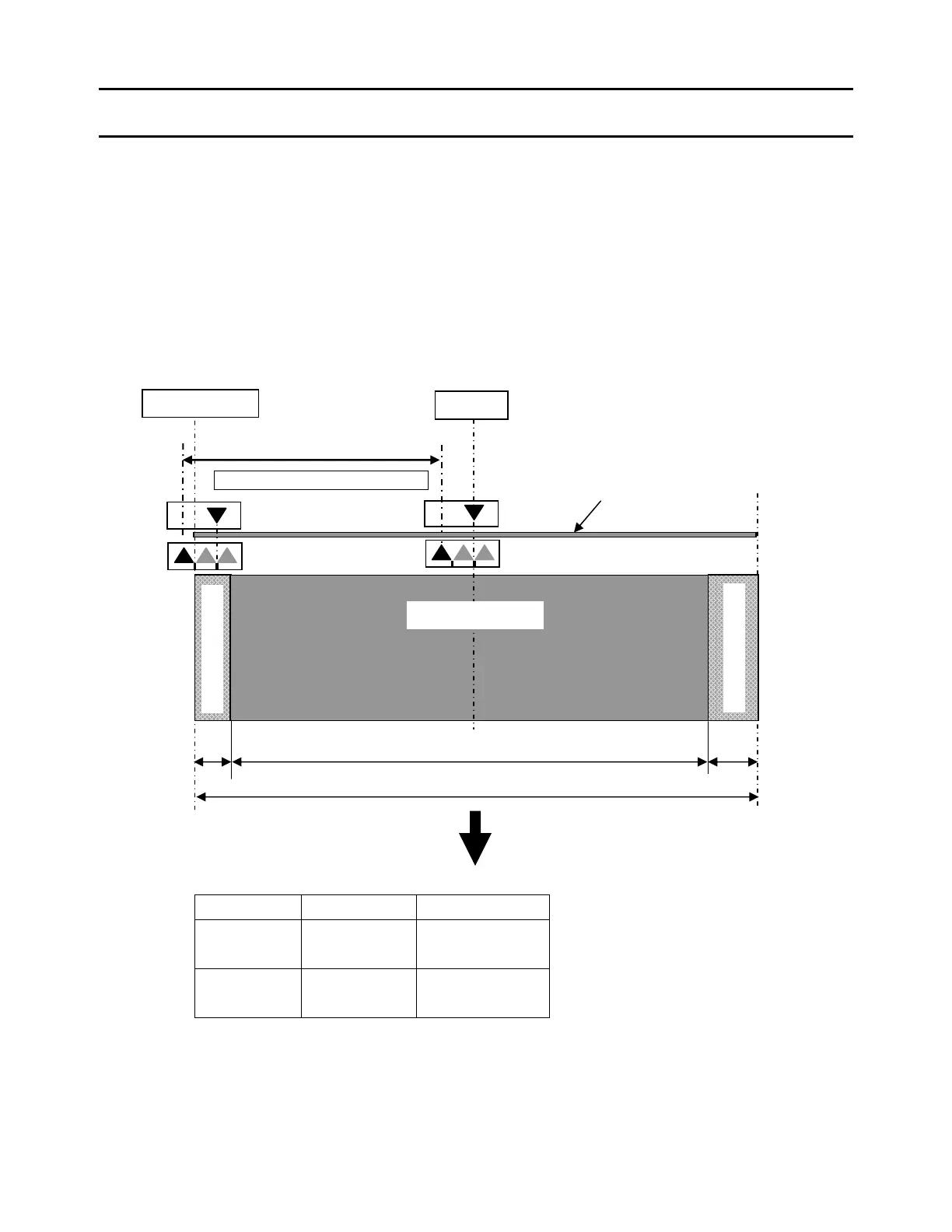

Moveable range of sensors
Center
Printable area
Media
MODEL H R
104.0 mm 11.5 mm
CLP-621
(4.09”) (0.45”)
105.0 mm 10.5 mm
CLP-631
(4.13”) (0.41”)
