2-4. Interface

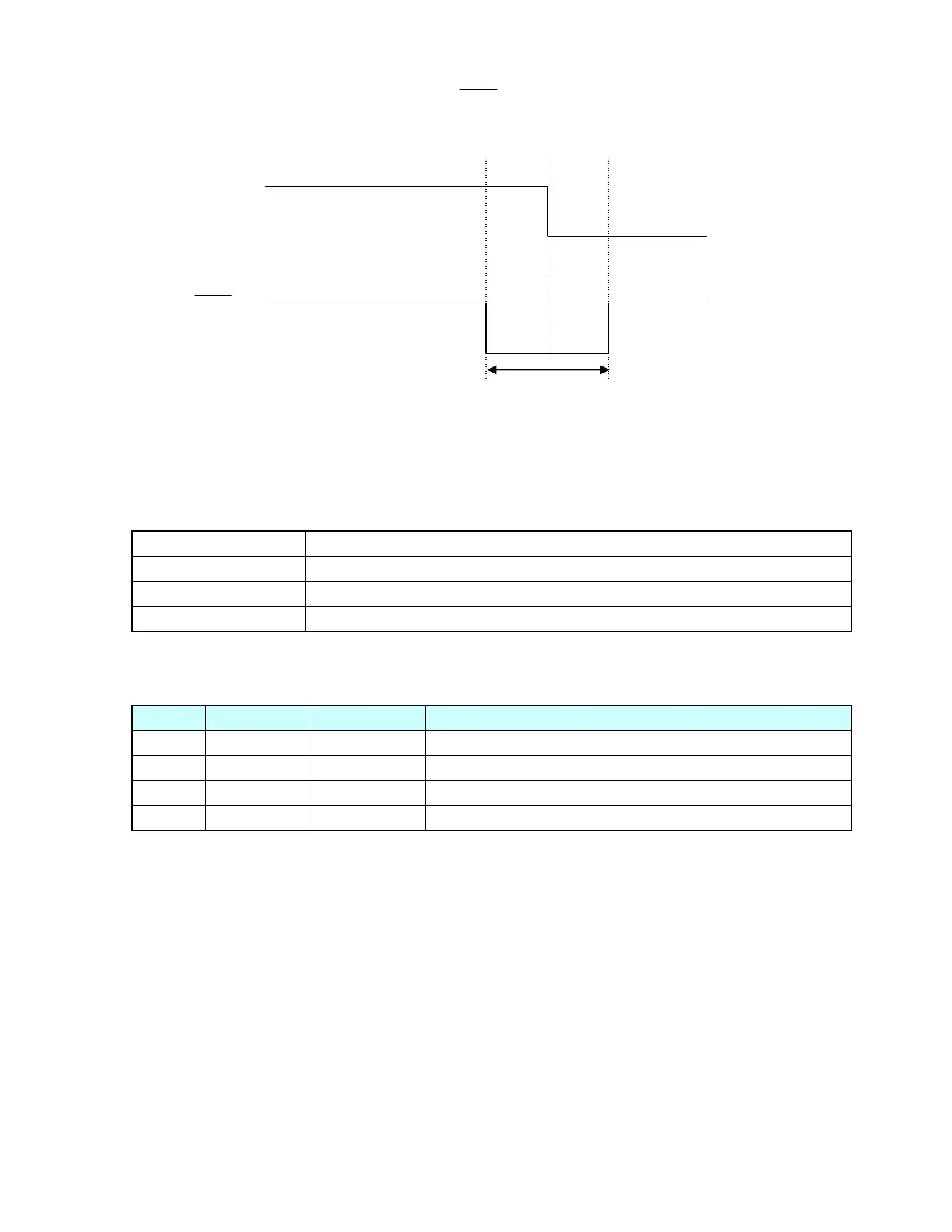

[Timing relationship between BUSY and ACK]
About 2 µsec
BUSY
ACK
Center
2-4-3. USB Interface
(1) Specifications
Standards Complies with Universal Serial Bus Specification
Transmission speed Compatible with 12Mbps (full speed) transmission
Receive buffer 16K bytes
Connector DUSB DUSB-BRA42-T11 (DDK)
(2) Signal line and pin arrangement
Pin No. Signal code Signal Function
1 VBUS USB power USB power (+5V)
2 D+ Signal line + + signal line
3 D- Signal line - - signal line
4 GND GND GND
CLP-621 & CLP-631 2-54
