Citizen CLP-621 Technical Manual

3-6. Adjustments
3-49 CLP-621 & CLP-631

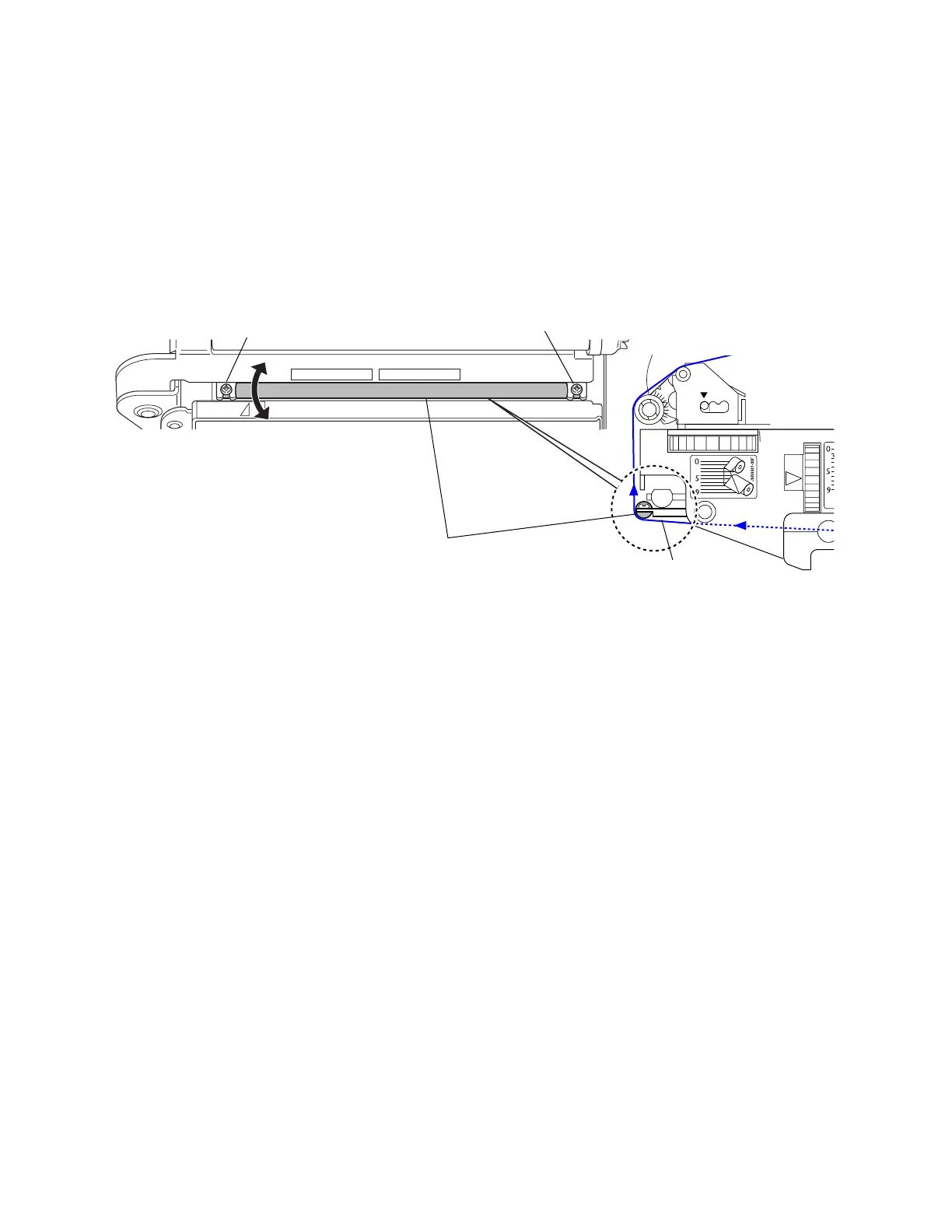

(2-2) Ribbon guide position adjustment in the Head SA (For service personnel)
By shifting the ribbon guide shaft in the Head SA, ribbon wrinkle on the front side can be
corrected.
Adjustment procedure:
1. Loosen screws “C” and “D”.
2. Shift the left edge of the ribbon guide shaft back and forth to move the ribbon contacting
surface.
Ribbon
C
D
(supporting point)
Ribbon Guide Shaft
[Right side view]
[Top view]

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
