Citizen CLP-621 Technical Manual

4-2. Troubleshooting
CLP-621 & CLP-631 4-12

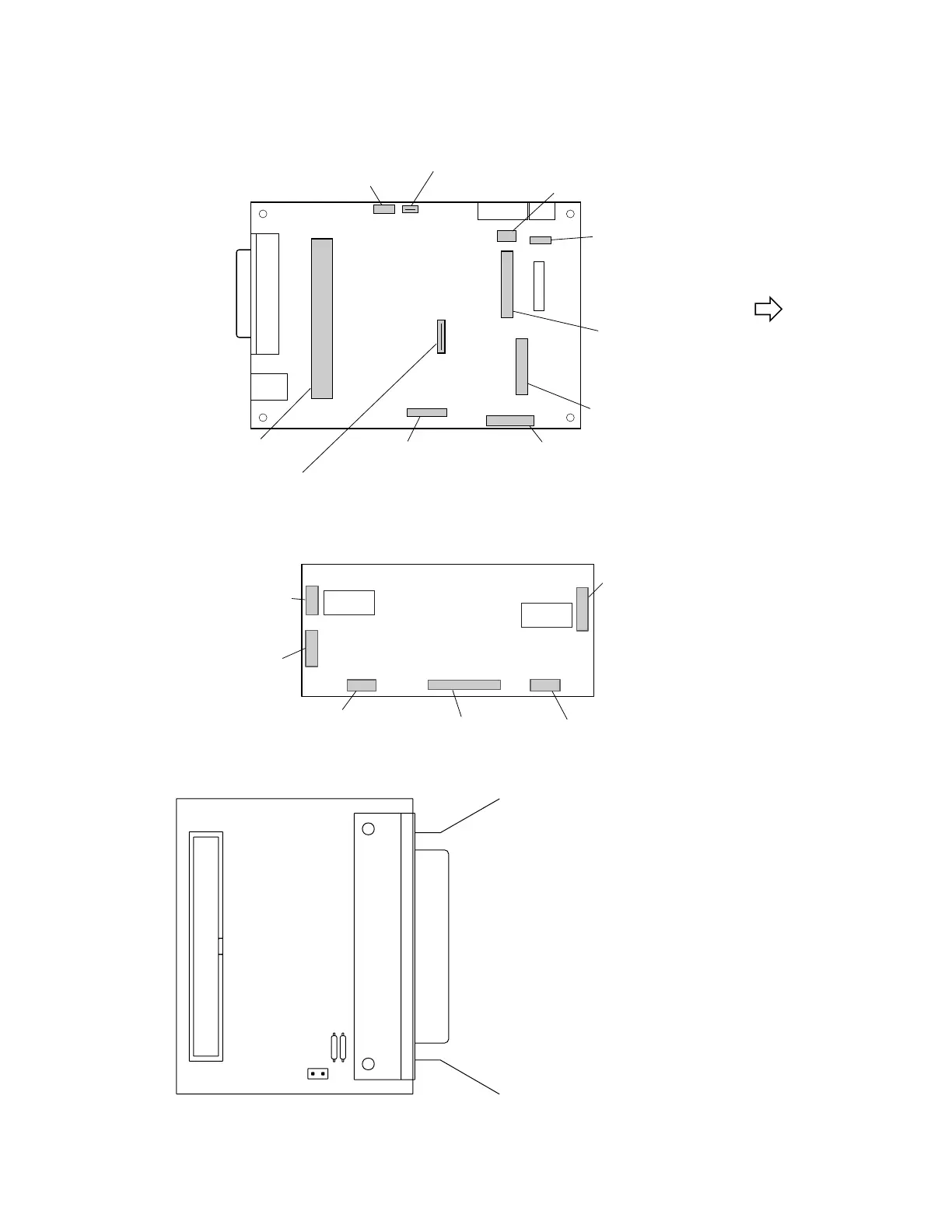

4-2-7. Connector Location
[Main PCB]
CN6
CN7
CN12
CN9
CN4
CN10
CN21
CN5
CN8
Centro PCB Unit
CN18
To Transparent Sensor PCB SA
To Reflective Sensor PCB SA
To Head Up Sensor PCB SA
To Motor SA
To Head SA
To Ope-pane PCB SA
To Power Supply Unit
To Ribbon Main PCB
(on the Ribbon Unit)
To Ribbon Main PCB
(on the Ribbon Unit)
Front
[Ribbon Main PCB]
CN704
CN702
CN701
CN705
CN706
CN703
Ribbon Motor F
Ribbon Motor R
To Main PCB
Tension Sensor F
Tension Sensor R
Fan & DIR Switch
[Centro PCB]
CN101
