Citizen CLP-621 Technical Manual

Chapter 5. Parts Lists
CLP-621 & CLP-631 5-32

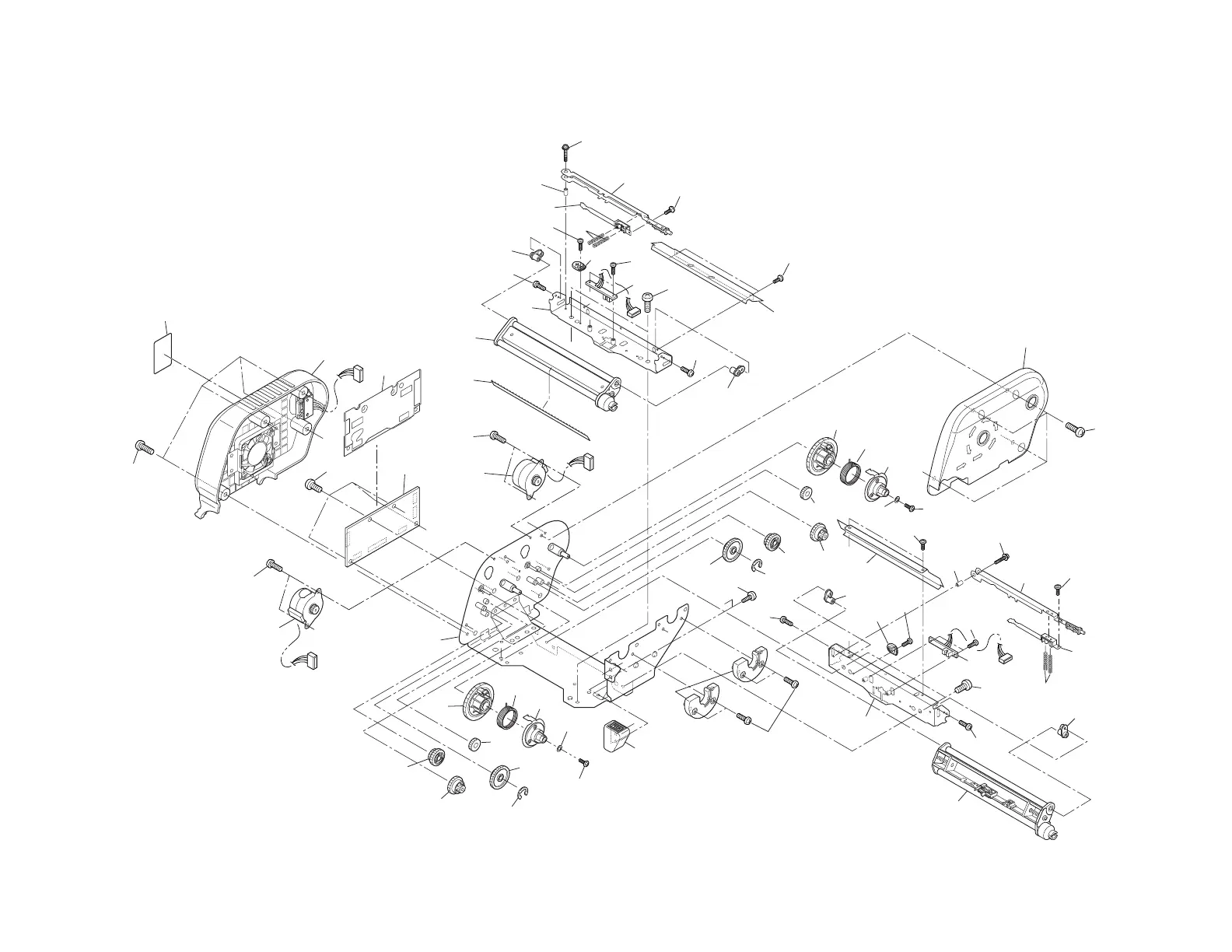

DRAWING NO. 8 Ribbon Unit (Rev. 0)
10
11
13
16
17
21
23
22
18
19
15
20
14
18
12
21
23
24
25
26
4
5
6
2
1
7
9
46
42
39
35
34
33
32
40
45
22
44
43
40
23
21
38
37
36
35
34
3
1
39
17
30
19
18
18
12
32
16
33
10
13
27
28
29
21
31
20
22
23
41
37
41
38
7
8
47

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
