Citizen CLP-621 Technical Manual

Chapter 6. Circuit Diagrams

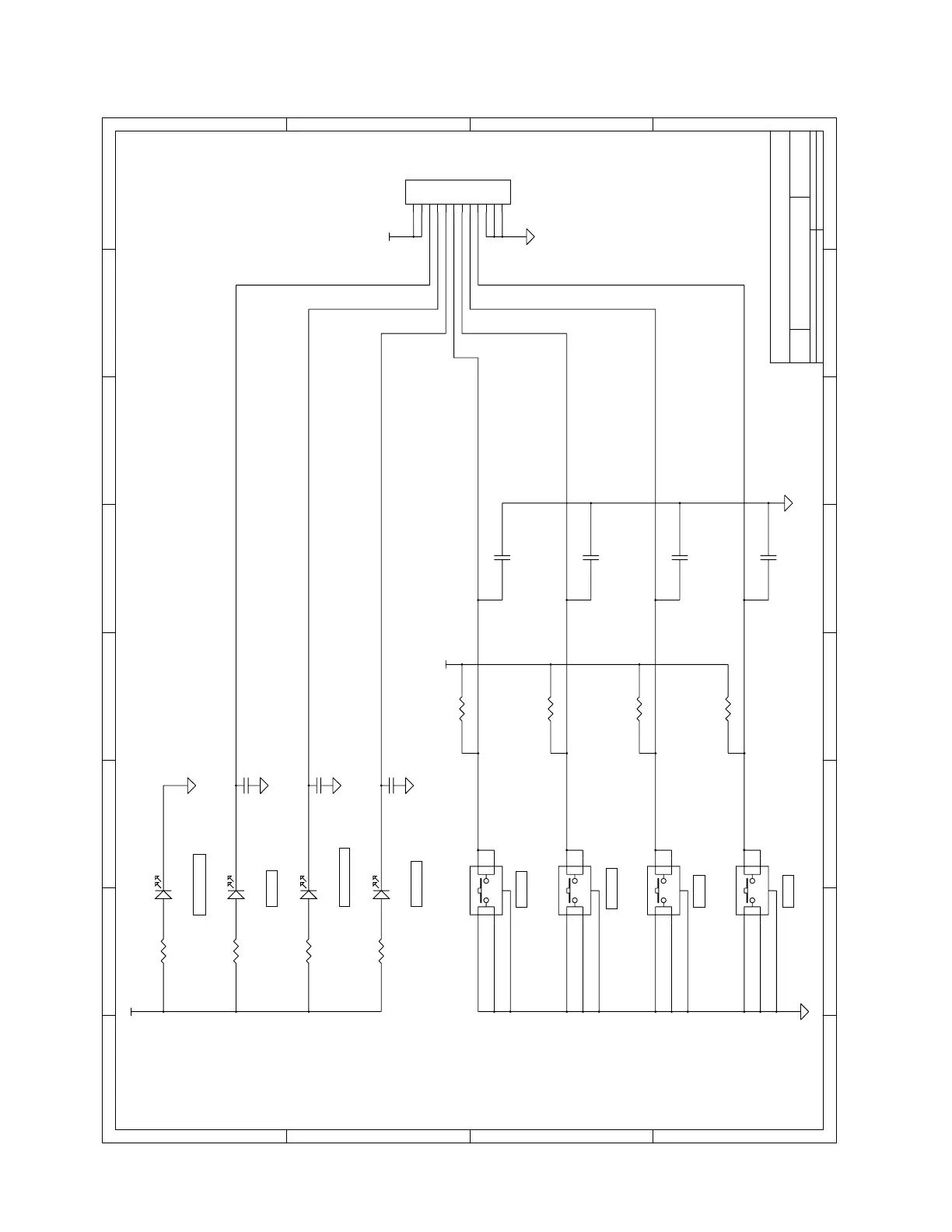

Circuit Diagram (Ope-pane PCB)
C304
1000p
C305
1000p
D304 SML-310VT D303 SML-310DT
C306
1000p
D302 SML-310PT
C307
1000p
CN301
12FMN-BTK-A
SW302
SKHMPSE010
SW303
SKHMPSE010
SW304
SKHMPSE010
SW301
SKHMPSE010
D301 SML-310PT
C301 1000p
R301
360
R304
360
C302 1000p
R303
360
C303 1000p
R302
360
R306
22k
R305
22k
R307
22k
R308
22k
V3R3
V3R3
V3R3
1 2 3 4 5 6 7 8 9 10 11 12
1 2
5
3 4
1 2
5
3 4
1 2
5
3 4
1 2
5
3 4
PRTLEDIN ERRLEDIN MODE STOP PAUSE FEED CNDLEDIN
(RED) (ORANGE) (GREEN) (GREEN)
(2012)
(2012)
(2012)
(2012)
POWER ON
PRINT
CONDITION
ERROR
FEED
PAUSE
STOP
MODE
1 2 3 4 5
6 78
A B C D
8
76
54321
D
C B A
Title
Number RevisionSize
A4
Date: Sheet of File: Drawn By:
1/1
A
JM66720-**
OPE-PANE CIRCUIT
7-Nov.-2003
CLP-621 & CLP-631 6-24

Citizen CLP-621 Specifications

General

USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Flash memory	2 MB
Certification	UL, C-UL, FCC class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Power consumption	2400 mA
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000, XP, Vista
Core diameter	25.4 mm
Ribbon length	360 m
Media thickness	0.0635 - 0.254 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	114 mm
Width	91 mm
Height	104 mm
