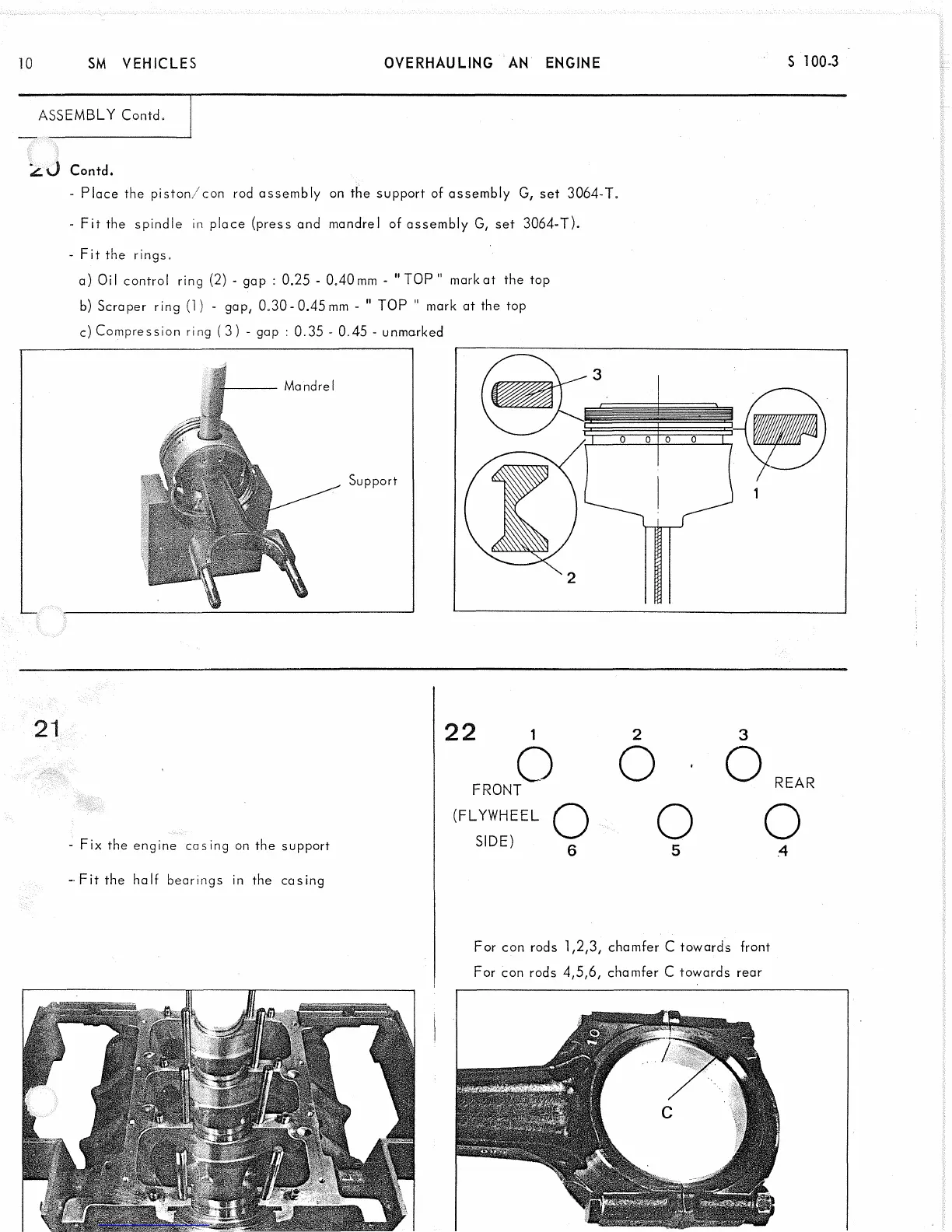

10 SM VEHICLES
OVERHAULING AN ENGINE
S 100-3
ASSEMBLY Contd.
^
J
Contd.
- Place the piston/con rod assembly on the support of assembly G, set 3064-T.
- F it the spindle in place (press and mandrel of assembly G, set 3064-T).
- Fit the rings.
a) Oil control ring (2) - gap : 0.25 - 0.40mm - "TOP" markat the top
b) Scraper ring (1) - gap, 0.30-0.45 mm - " TOP " mark at the top
c) Compression ring (3 ) - gap : 0.35 - 0.45 - unmarked
21
Fix the engine casing on the support
Fit the half bearings in the casing
22
For con rods 1,2,3, chamfer C towards front
For con rods 4,5,6, chamfer C towards rear
