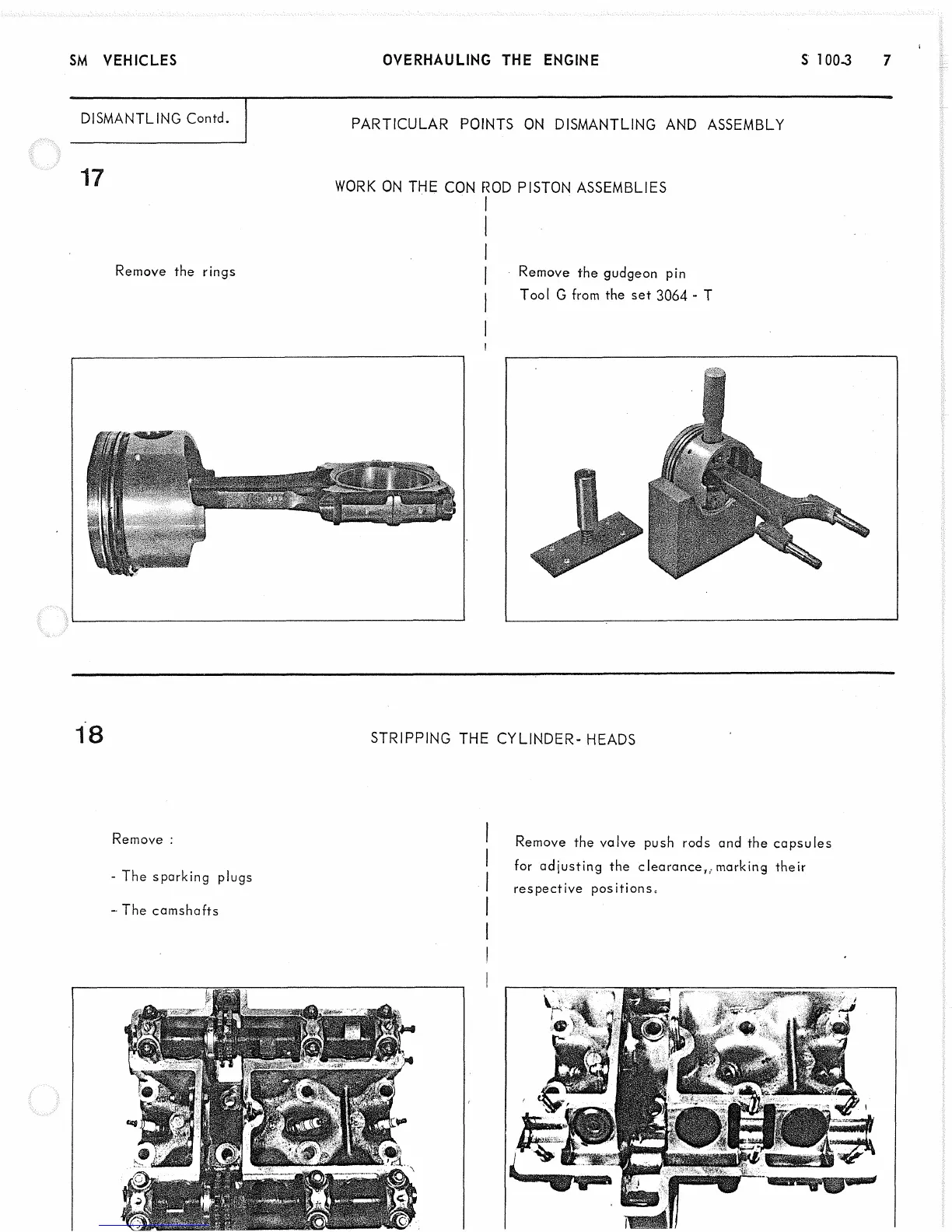

SM VEHICLES
OVERHAULING THE ENGINE
S 100-3 7
DISMANTLING Contd.
PARTICULAR POINTS ON DISMANTLING AND ASSEMBLY
17
WORK ON THE CON ROD PISTON ASSEMBLIES
Remove the rings
| Remove the gudgeon pin
i Tool G from the set 3064 - T
18 STRIPPING THE C YLIN DER- HEADS
Remove : I Remove the valve push rods and the capsules
, I for adjusting the clearance.,,, marking their
- I he sparking plugs I
I respective positions*
