SM VEHICLES
OVERHAULING AN ENGINE
S 100-3 27
ASSEMBLY Contd

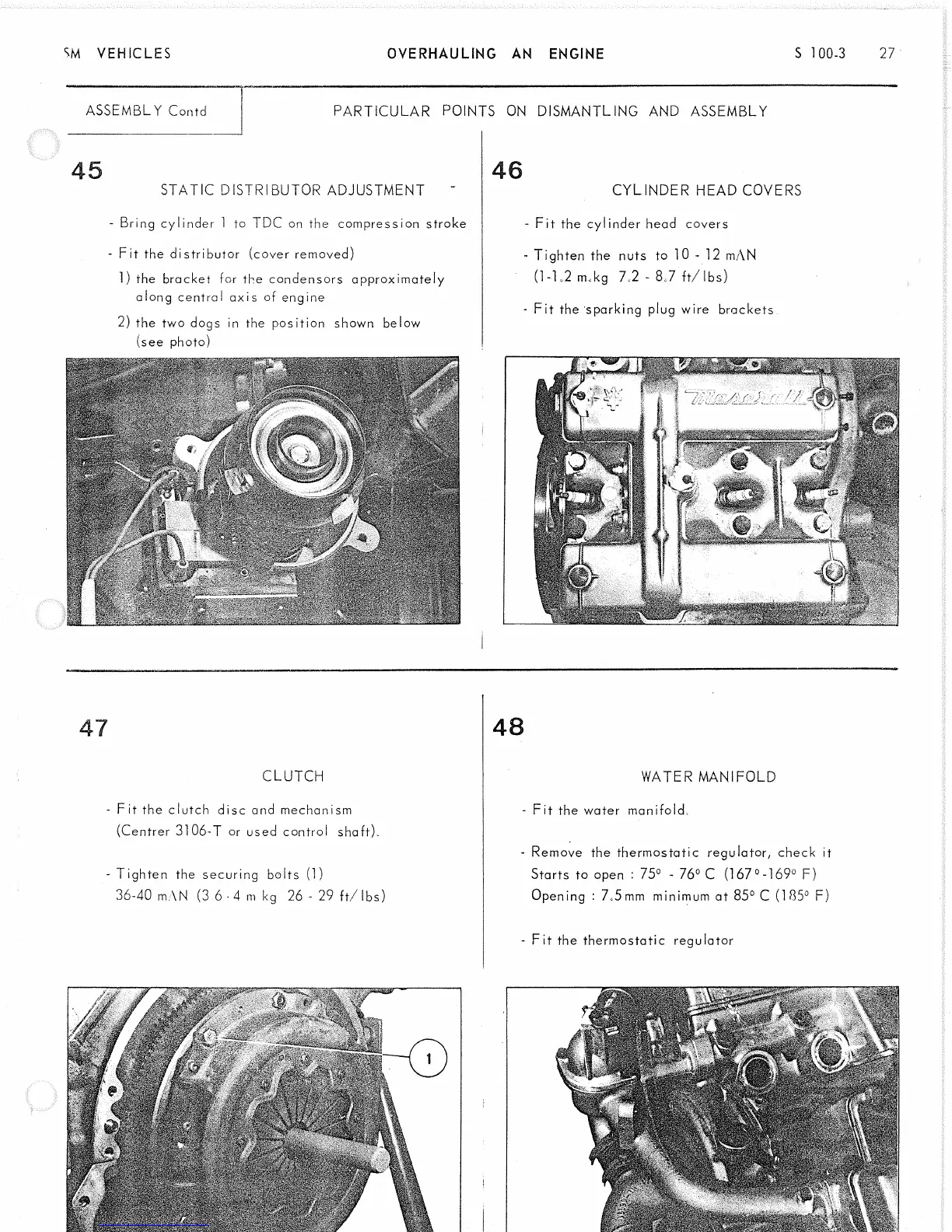

PARTICULAR POINTS ON DISMANTLING AND ASSEMBLY
STATIC DISTRIBUTOR ADJUSTMENT ~
- Bring cylinder 1 to TDC on the compression stroke
- Fit the distributor (cover removed)
1) the bracket for the condensors approximately
along central axis of engine
2) the two dogs in the position shown below
(see photo)
47
CLUTCH
- Fit the clutch disc and mechanism
(Centrer 3106-T or used control shaft).
- Tighten the securing bolts (1)
36-40 mAN (3 6 - 4 m kg 26 - 29 ft/ lbs)
46
CYLINDER HEAD COVERS
- Fit the cylinder head covers
- Tighten the nuts to 10 - 12 mAN
(1-1.2 m.kg 7.2 - 8.7 ft/ lbs)
- Fit the sparking plug wire brackets
48
WATER MANIFOLD
- Fit the water manifold.
- Remove the thermostatic regulator, check it
Starts to open : 75° - 76° C (1 670-169° F)
Opening : 7.5mm minimum at 85° C (185° F)
- Fit the thermostatic regulator
