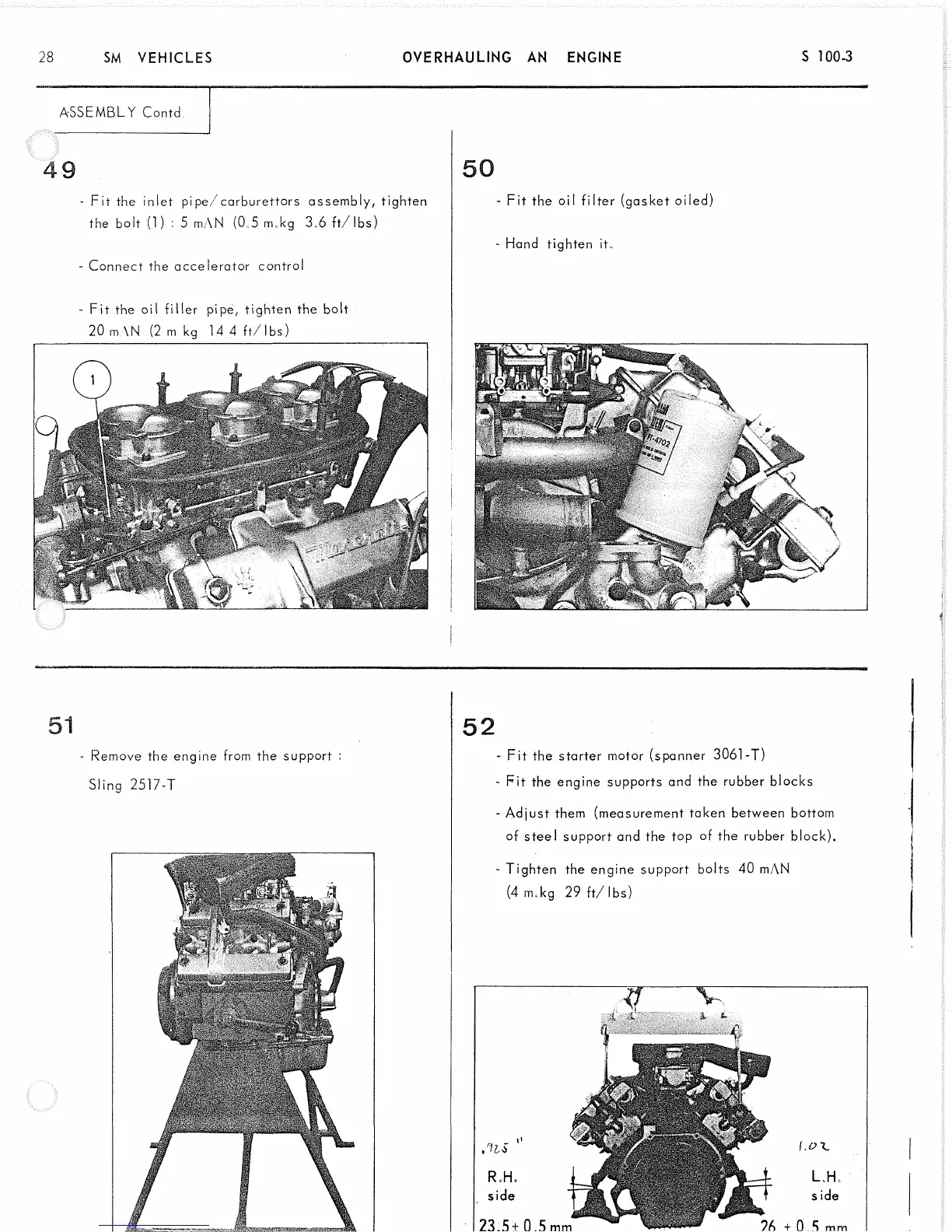

CITROEN SM - Engine Assembly: Carburettors and Supports; Carburettor and Oil Pipe Fitting; Engine Support and Starter Motor

28 SM VEHICLES
OVERHAULING AN ENGINE
S 100-3
ASSEMBLY Contd.
- Fit the inlet pi pe/carburettors assembly, tighten
the bolt (1) : 5 mAN (0. 5 m.kg 3,6 ft/lbs)
- Connect the accelerator control
- Fit the oil filler pipe, tighten the bolt
20 mAN (2 m kg 14 4 ft/lbs)
50
- Fit the oil filter (gasket oiled)
- Hand tighten it.
Remove the engine from the support :
Sling 2517-T
52
- Fit the starter motor (spanner 3061-T)
- Fit the engine supports and the rubber blocks
- Adjust them (measurement taken between bottom
of steel support and the top of the rubber block).
- Tighten the engine support bolts 40 mAN
(4 m.kg 29 ft/ lbs)
