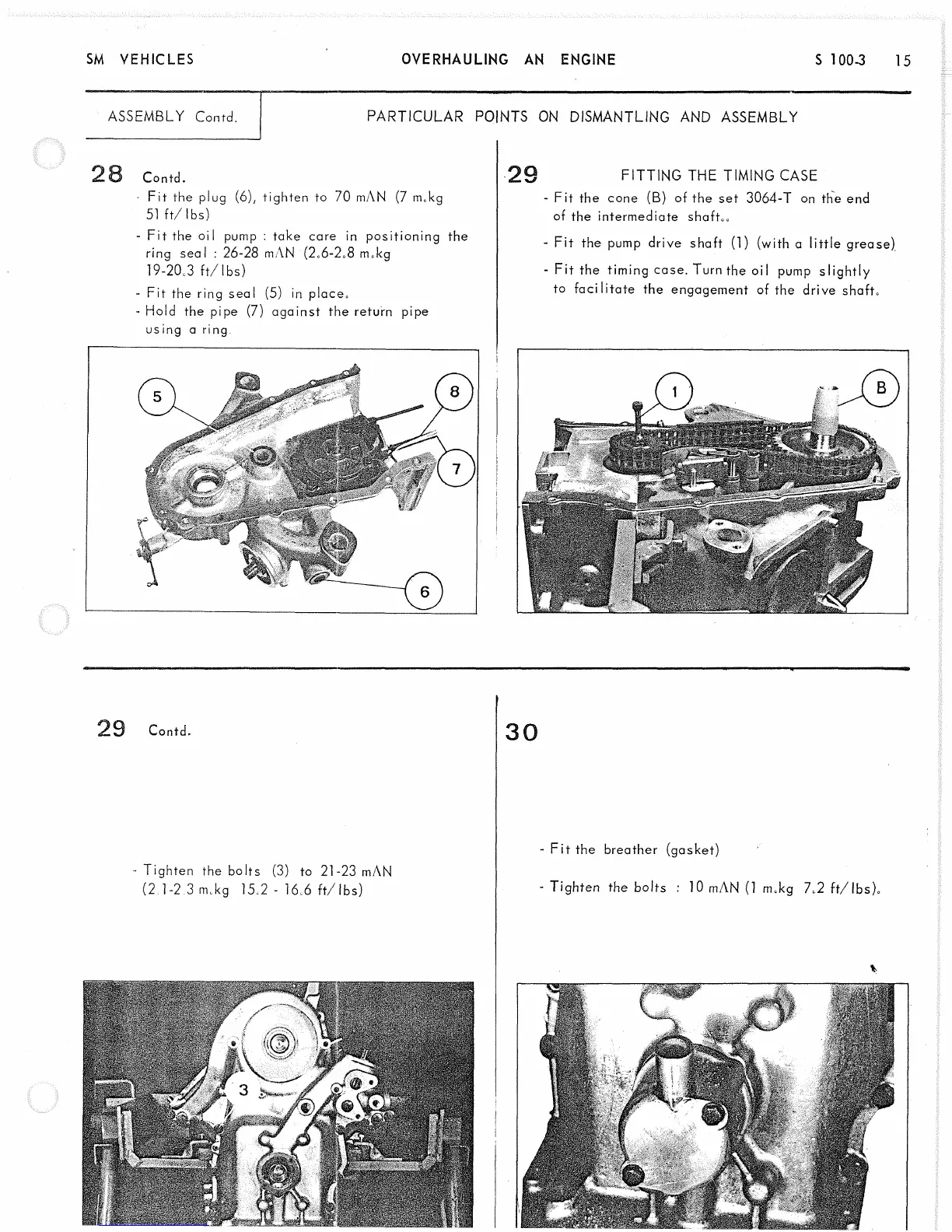

SM VEHICLES
OVERHAULING AN ENGINE
S 100-3 15
ASSEMBLY Contd.
PARTICULAR POINTS ON DISMANTLING AND ASSEMBLY
28 Contd.
• Fit the plug (6), tighten to 70 mAN (7 m.kg
51 ft/lb s )
- Fit the oil pump : take care in positioning the
ring seal : 26-28 mAN (2.6-2.8 m.kg
19-20.3 ft/lb s )
- Fit the ring seal (5) in place.
- Hold the pipe (7) against the return pipe
using a ring.
29 FITTING THE TIMING CASE
- Fit the cone (B) of the set 3064-T on the end
of the intermediate shaft..
- Fit the pump drive shaft (1) (with a little grease)
- Fit the timing case. Turn the oil pump slightly
to facilitate the engagement of the drive shaft.
Contd.
Tighten the bolts (3) to 21-23 mAN
(21-2 3 m.kg 15.2 - 16.6 ft/lb s )
30
- F it the breather (gasket)
- Tighten the bolts : 10 mAN (1 m.kg 7.2 ft/lb s ).
