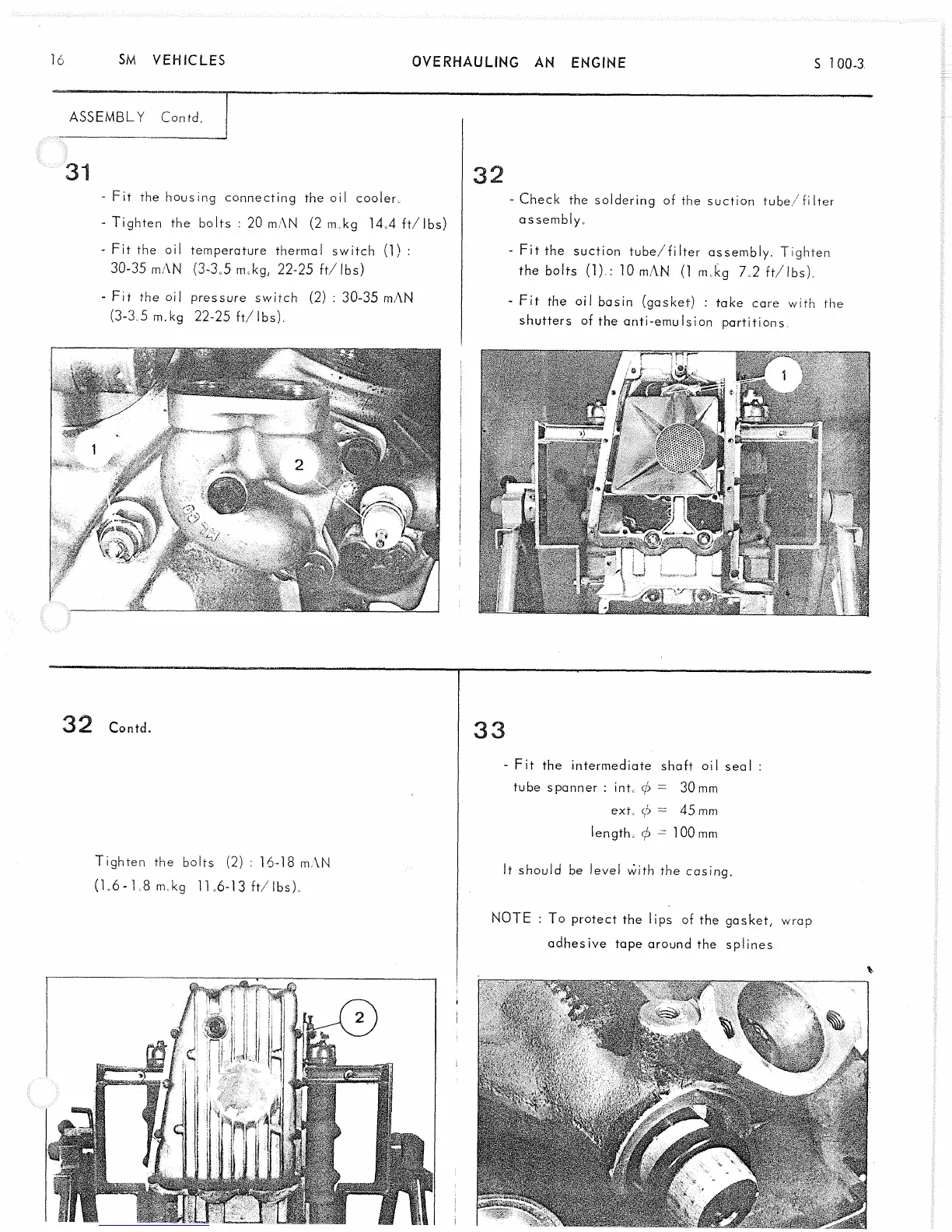

16 SM VEHICLES OVERHAULING AN ENGINE S 100-3
ASSEMBLY Contd.
31
- Fit the housing connecting the oil cooler,
- Tighten the bolts : 20 mAN (2 m.kg 14,4 ft/lbs)
- Fit the oil temperature thermal switch (1) :
30-35 rnAN (3-3.5 m.kg, 22-25 ft/lbs)
- Fit the oil pressure switch (2) : 30-35 mAN
(3-3.5 m,kg 22-25 ft/lbs),
32
- Check the soldering of the suction tube/filter
assembly,
- Fit the suction tube/filter assembly. Tighten
the bolts (1).: 10 mAN (1 m.kg 7.2 ft/lbs).
- Fit the oil basin (gasket) : take care with the
shutters of the anti-emu Ision partitions.
Contd.
Tighten the bolts (2) : 16-18 mAN
(1.6 - 1.8 m.kg 11,6-1 3 ft/lbs).
o q
- Fit the intermediate shaft oil seal :
tube spanner : int. q> = 30mm
ext, o — 45 mm
length, (p — 1 00 mm
It should be level with the casing.
NOTE : To protect the lips of the gasket, wrap
adhesive tape around the splines
%
