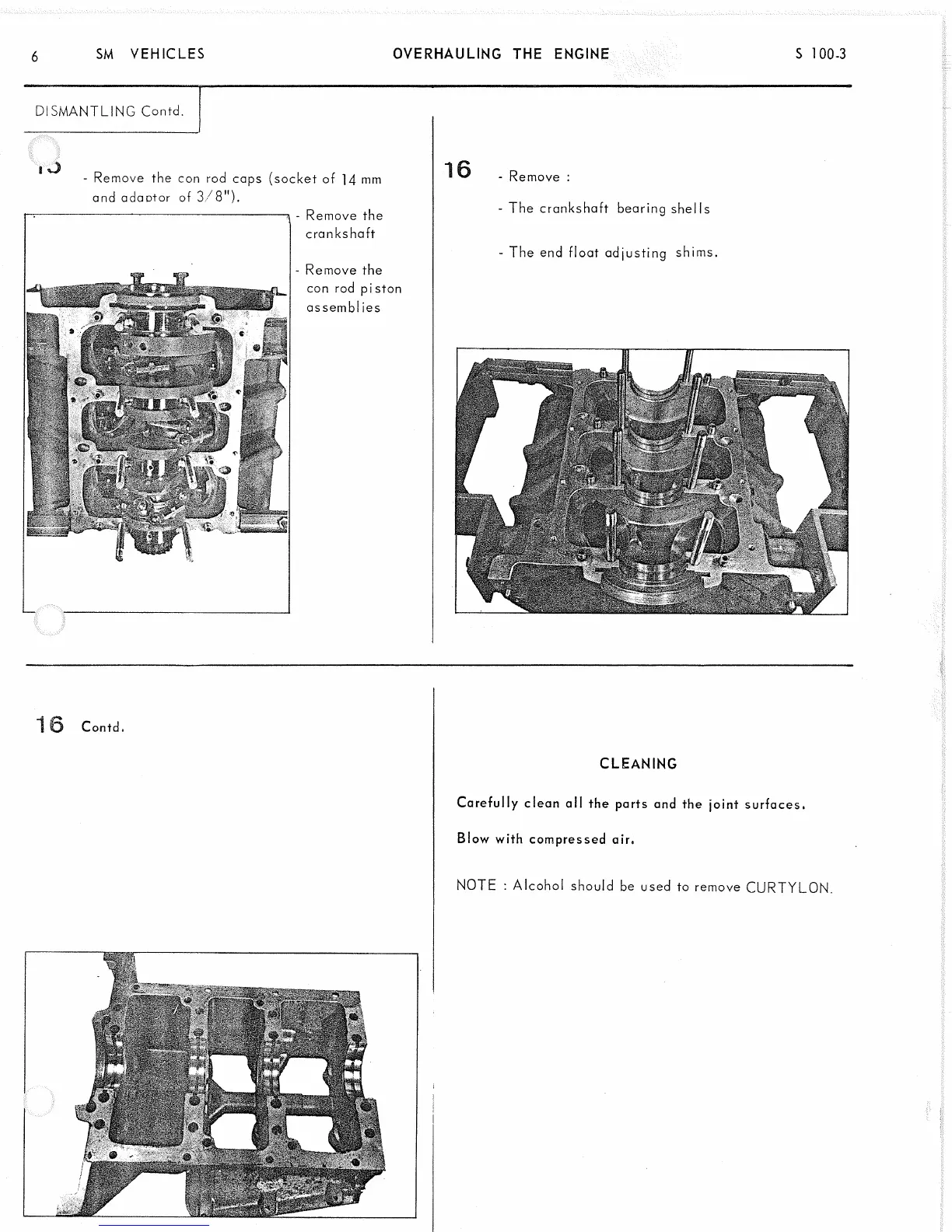

OVERHAULING THE ENGINE S 100-3
DISMANTLING Contd.
i J
- Remove the con rod caps (socket of 14 mm
and adaptor of 3/8").
Remove the
crankshaft
Remove the
con rod pi ston
assembl ies
^ ^ - Remove :
- The crankshaft bearing shells
- The end float adjusting shims.
Contd.
CLEANING
Carefully clean all the parts and the joint surfaces.
Blow with compressed air.
NOTE : Alcohol should be used to remove CURTYLON.
