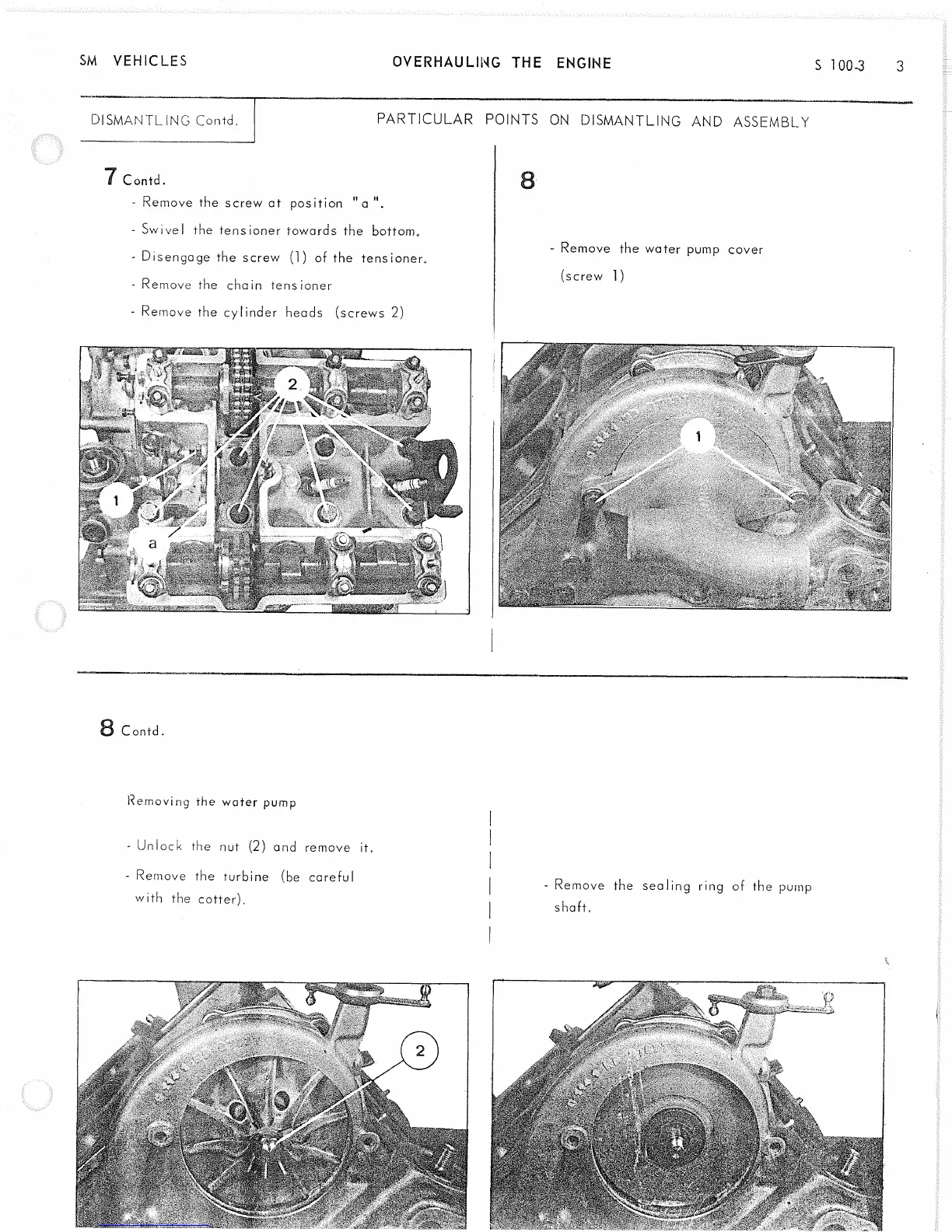

CITROEN SM - Engine Dismantling: Cylinder Heads and Water Pump; Cylinder Head Removal Details; Water Pump and Cover Removal

SM VEHICLES
OVERHAULING THE ENGINE
S 100-3
DISMANTLING Contd.
PARTICULAR POINTS ON DISMANTLING AND ASSEMBLY
7 Contd.
- Remove the screw at position "a
- Swivel the tensioner towards the bottom.
- Disengage the screw (1) of the tensioner.
- Remove the chain tensioner
- Remove the cylinder heads (screws 2)
- Remove the water pump cover
(screw 1)
B Contd.
Removing the water pump
- Unlock the nut (2) and remove it.
- Remove the turbine (be careful
with the cotter).
- Remove the sealing ring of the pump
shafts
