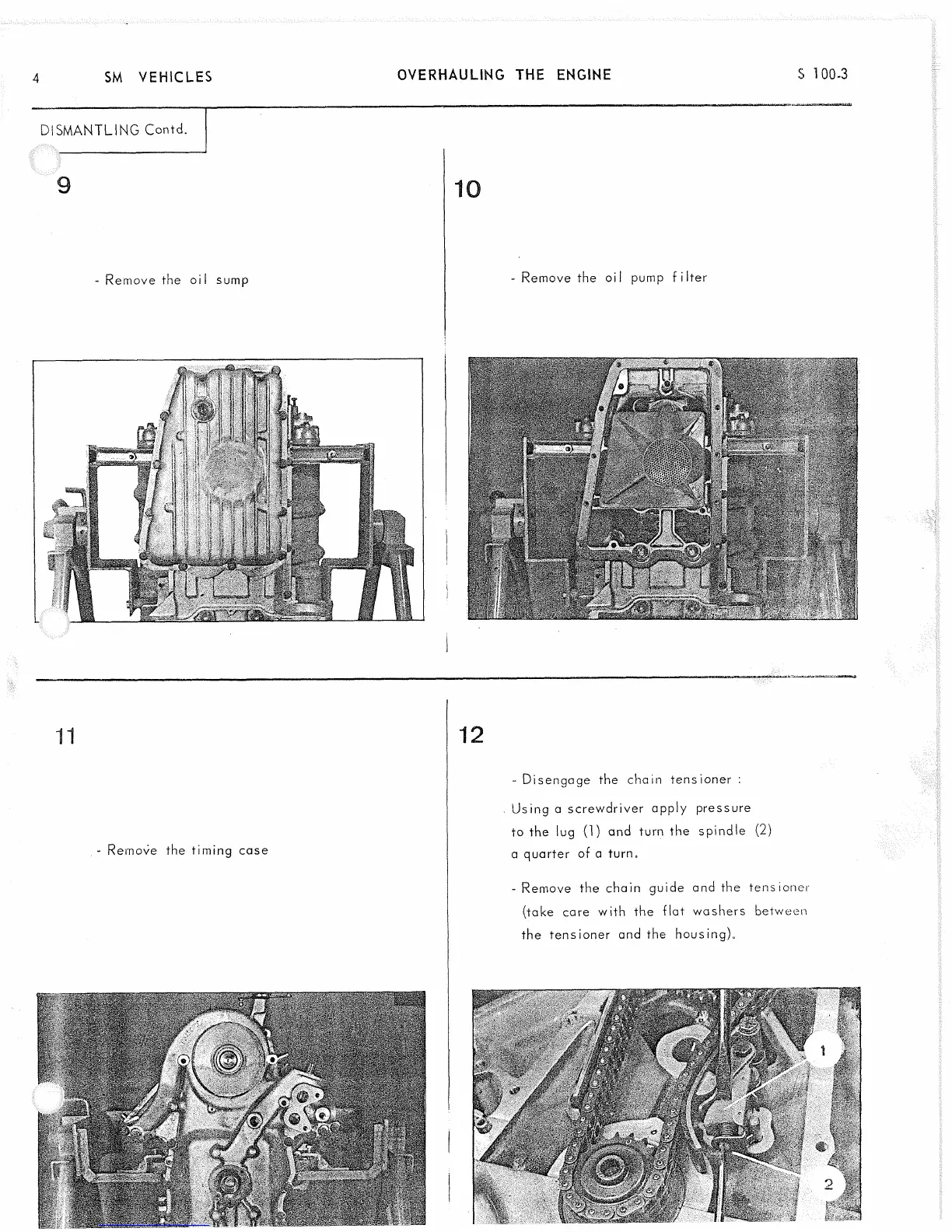

CITROEN SM - Engine Dismantling: Sump and Timing Case; Sump and Timing Case Removal; Oil Pump Filter and Chain Tensioner

4 SM VEHICLES
OVERHAULING THE ENGINE
S 100-3
DISMANTLING Contd.
Remove the oil sump
10
- Remove the oil pump filter
11
Remove the timing case
12
- Disengage the chain tensioner :
Using a screwdriver apply pressure
to the lug (1) and turn the spindle (2)
a quarter of a turn.
- Remove the chain guide and the tensioner
(take care with the flat washers between
the tensioner and the housing).
