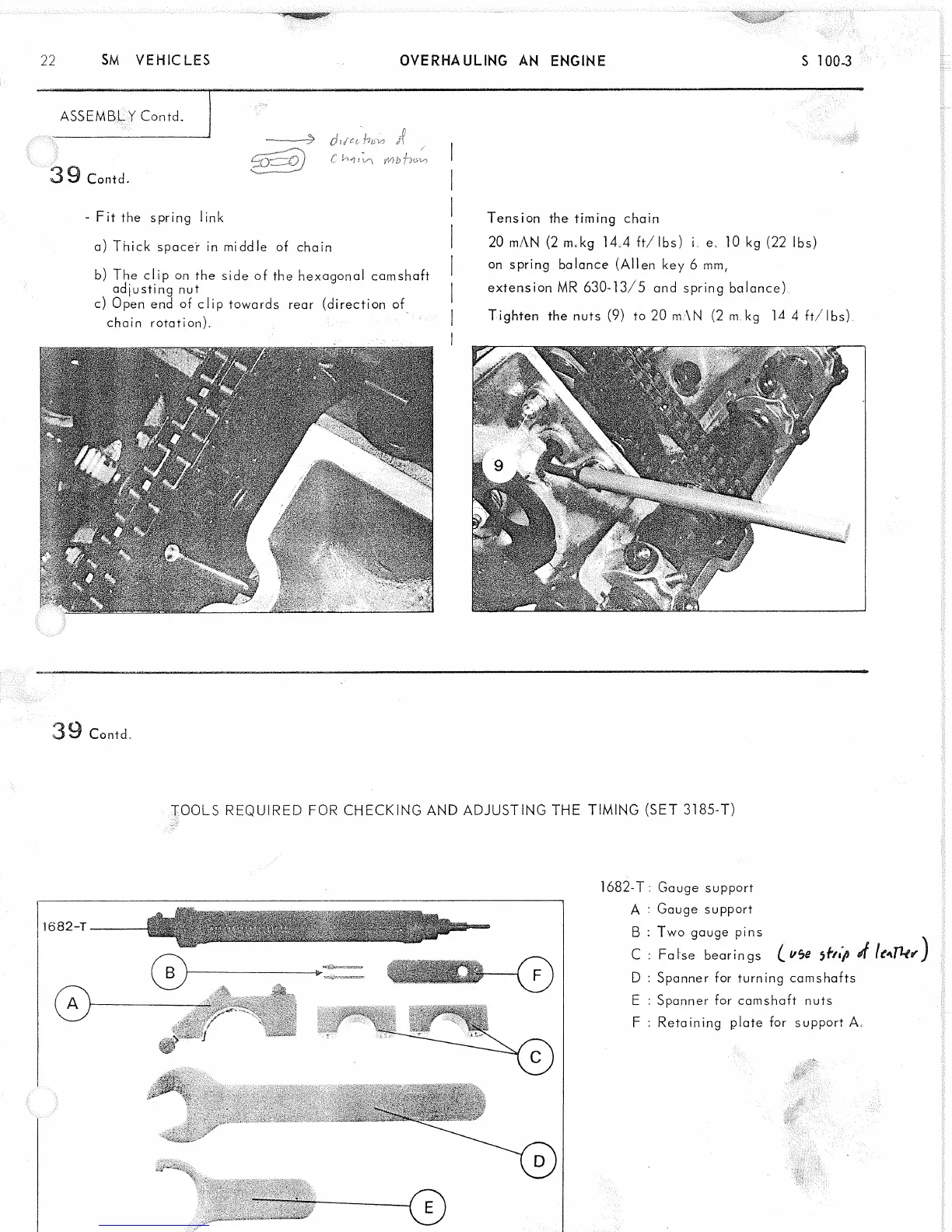

22 SM VEHICLES
OVERHAULING AN ENGINE
S 100-3
ASSEMBLE Contd.
Contd.
Fit the spring link
a) Thick spacer in middle of chain
b) The clip on the side of the hexagonal camshaft
adjusting nut
c) Open end of clip towards rear (direction of
chain rotation)..
Tension the timing chain
20 mAN (2 mokg 14^4 ft/lbs) i. e. 10 kg (22 lbs)
on spring balance (Allen key 6 mm,
extension MR 630-13/5 and spring balance)
Tighten the nuts (9) to 20 mAN (2 m.kg 14 4 ft/lbs).
39 Contd.
TOOLS REQUIRED FOR CHECKING AND ADJUSTING THE TIMING (SET 3185-T)
1682-T : Gauge support
A : Gauge support
B : Two gauge pins
C : Fa Ise bearin gs C ^ J
D : Spanner for turning camshafts
E : Spanner for camshaft nuts
F : Retaining plate for support A,
