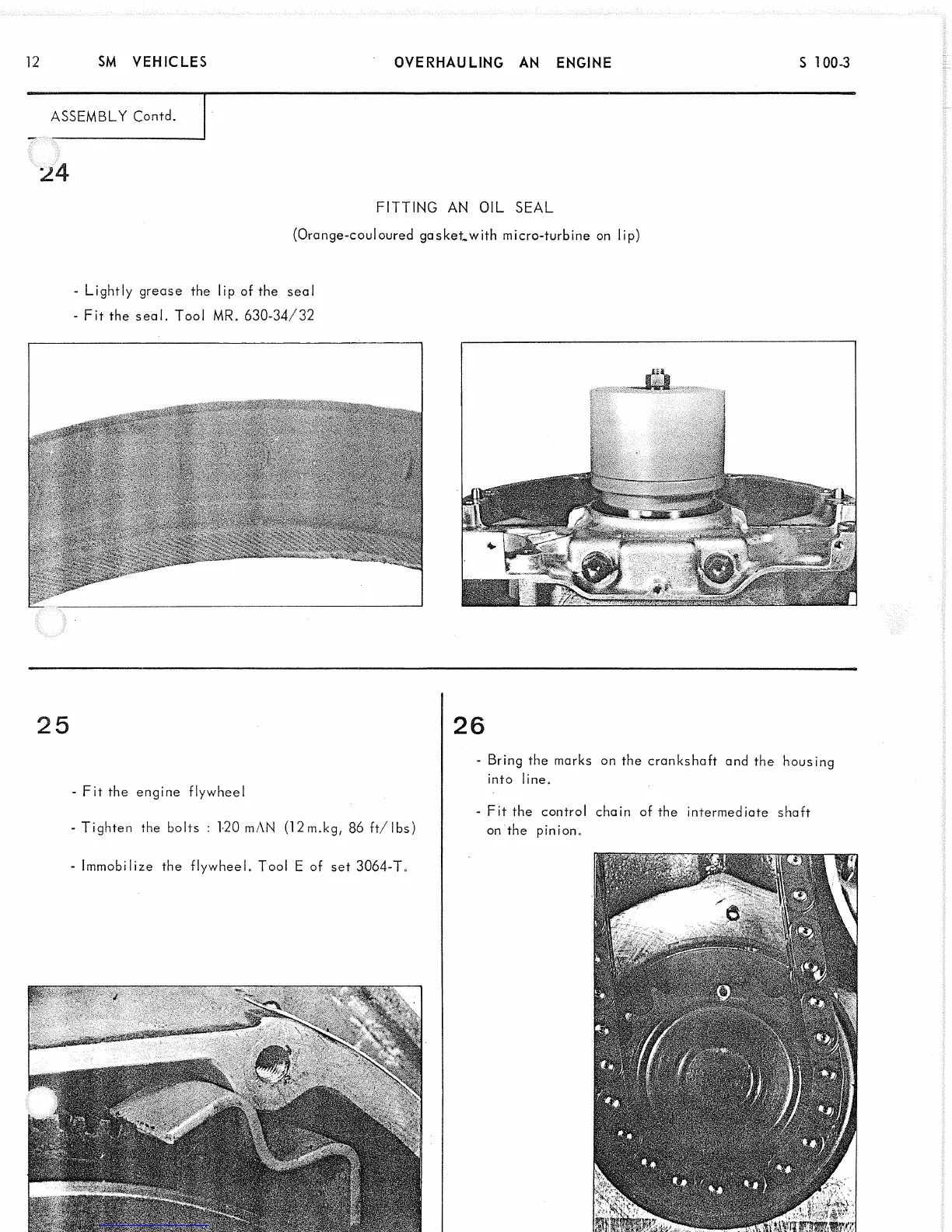

CITROEN SM - Engine Assembly: Oil Seal and Flywheel; Oil Seal Fitting Procedure; Flywheel and Timing Chain Alignment

12 SM VEHICLES
OVERHAULING AN ENGINE S 100-3
ASSEMBLY Contd.
FITTING AN OIL SEAL
(Orange-couloured gasket„with micro-turbine on lip)
Lightly grease the lip of the seal
Fit the seal. Tool MR. 630-34/32
25
- F it the engine flywheel
- Tighten the bolts : 120 mAN (12 m.kg, 86 ft/lb s )
- Immobilize the flywheel. Tool E of set 3064-T.
26
- Bring the marks on the crankshaft and the housing
into line.
- Fit the control chain of the intermediate shaft
on the pinion.
