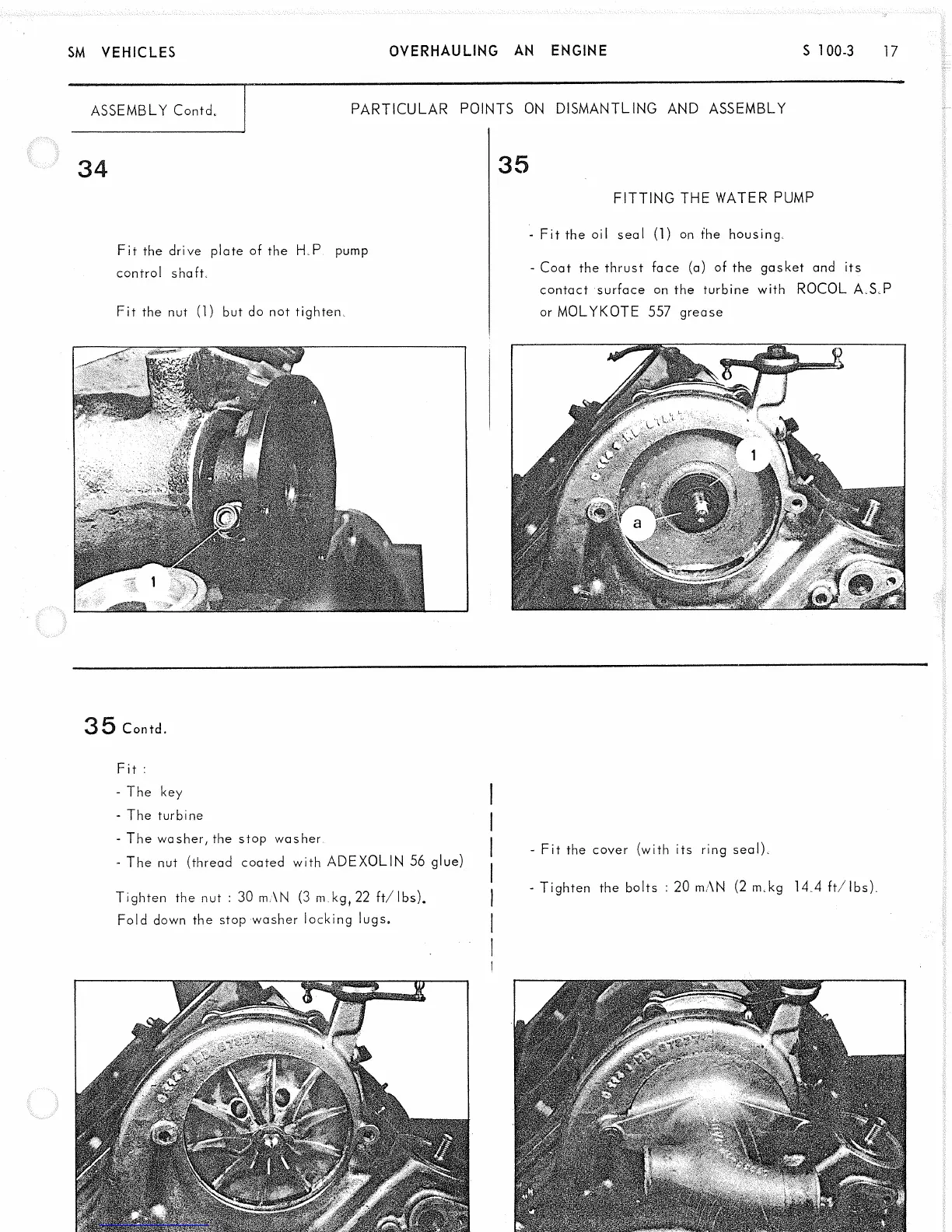

SM VEHICLES
OVERHAULING AN ENGINE
S 100-3 17
ASSEMBLY Contd.
34
PARTICULAR POINTS ON DISMANTLING AND ASSEMBLY
FITTING THE WATER PUMP
Fit the drive plate of the H,P pump
control shaft.
Fit the nut (1) but do not tighten.
- Fit the oil seal (1) on the housing,
- Coat the thrust face (a) of the gasket and its
contact surface on the turbine with ROCOL A.ScP
or MOLYKOTE 557 grease
Fit :
- The key
- The turbine
- The washer, the stop washer.
- The nut (thread coated with ADEXOLIN 56 glue)
Tighten the nut : 30 mAN (3 m kgt 22 ft/lbs).
Fold down the stop washer locking lugs.
- Fit the cover (with its ring seal).
- Tighten the bolts : 20 mAN (2 mckg 14.4 ft/ lbs).
