CITROEN SM - Engine Dismantling: Major Components; Clutch, Flywheel, and Cylinder Heads

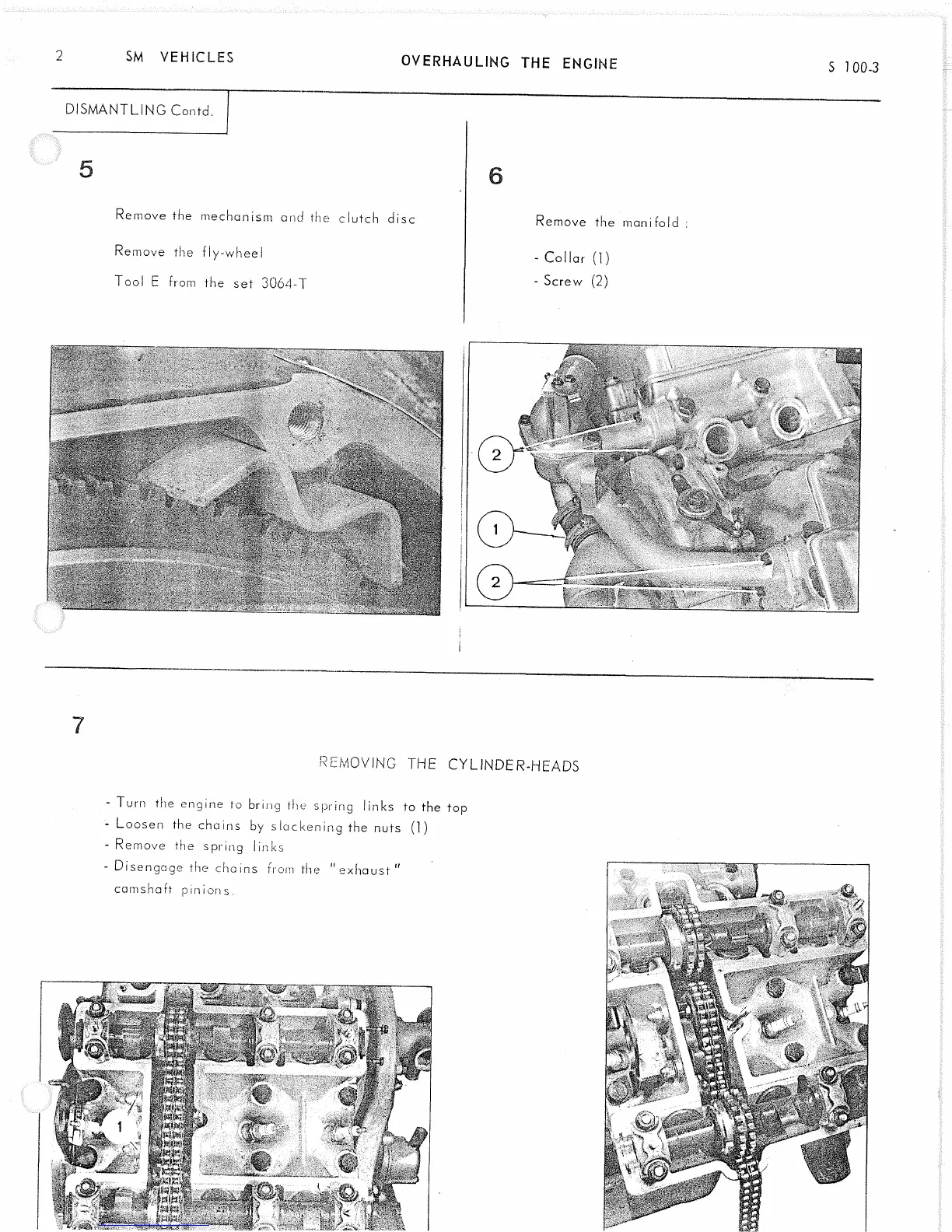

2 SM VEHICLES
OVERHAULING THE ENGINE
DISMANTLING Contd.
Remove the mechanism and the clutch disc
Remove the fly-wheel
Tool E from the set 3064-T
/f**
6
Remove the manifold
- Collar (1)
- Screw (2)
7
REMOVING THE CYLINDER-HEADS
Turn the engine to bring the spring links to the top
Loosen the chains by slackening the nuts (1)
Remove the spring links
Disengage the chains from the "exhaust"
camshaft pinions.
