CLAGE
EN
Description of appliance
1. Description of appliance
This instantaneous water heater is intended to provide the economical heating of water suffi-
cient for a single outlet, i.e. handwash basin, and must be connected to a special open-outlet
tap to avoid any overpressure.
When the hot water tap is opened, the instantaneous water heater switches itself on auto-
matically and heats the water as it passes through the appliance. It is only then that the appli-
ance uses electricity. The temperature increase depends on the flow rate.

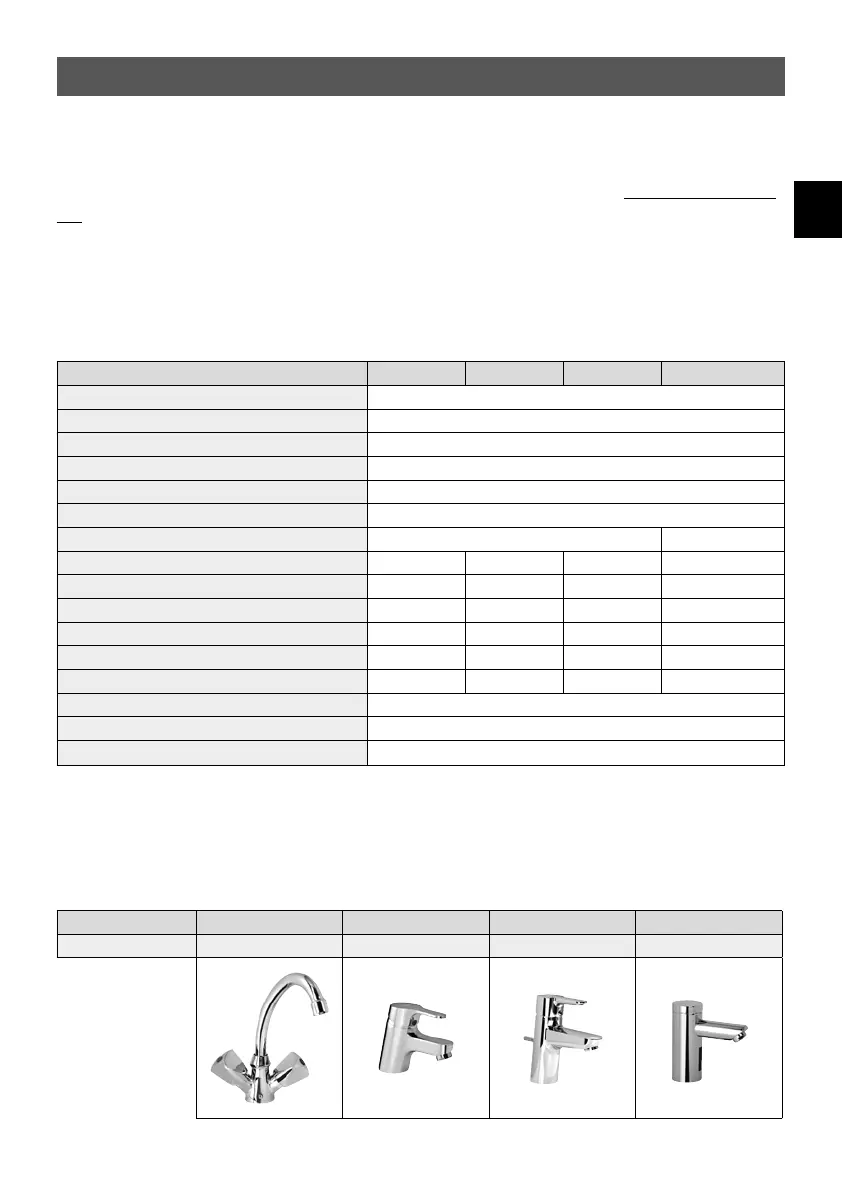

1.1 Technical specifications
Type M 3 M 4 M 6 M 7
Energy efficiency class A
*)
Capacity Litre 0.2
Max. operating pressure MPa (bar) 0 (0); Open outlet only!
Heating system Bare wire heating system IES
®
Min. water resistance at 15 °C
1)
cm 1100
Max. water inlet temperature °C 20
Rated voltage 1~ / N / PE 230 V AC 2~ / PE 400 V AC
Rated power kW 3.5 4.4 5.7 6.5
Rated current A 15.2 19.1 24.8 16.3
Required min. cable cross-section mm
2
1.5 2.5 4.0 1.5
Hot water output at ∆t = 25 K
2)
l/min 2.0 2.5 3.3 3.7
Switching on at l/min 1.3 1.8 2.2 2.4
Switching off at l/min 1.0 1.4 1.7 2.0
Approx. weight when filled with water kg 1.5
Protection class IP 25
Marking / Approvals see rating plate
*) The declaration complies with the EU regulation No812/2013. The product data sheet is attached at the end of this document.
1) The specific resistance can be asked for at your water distribution company.
2) Temperature increase from e.g. 15 °C to 40 °C.
1.2 Recommended open-outlet taps
SNM END EWT AEN
1100-04200 1100-04410 1100-04420 1100-04255
Type
Art. No.
