6. WIRE CONNECTIONS
Owner’s Manual
English
6. WIRE CONNECTIONS
Please follow these connection diagrams carefully

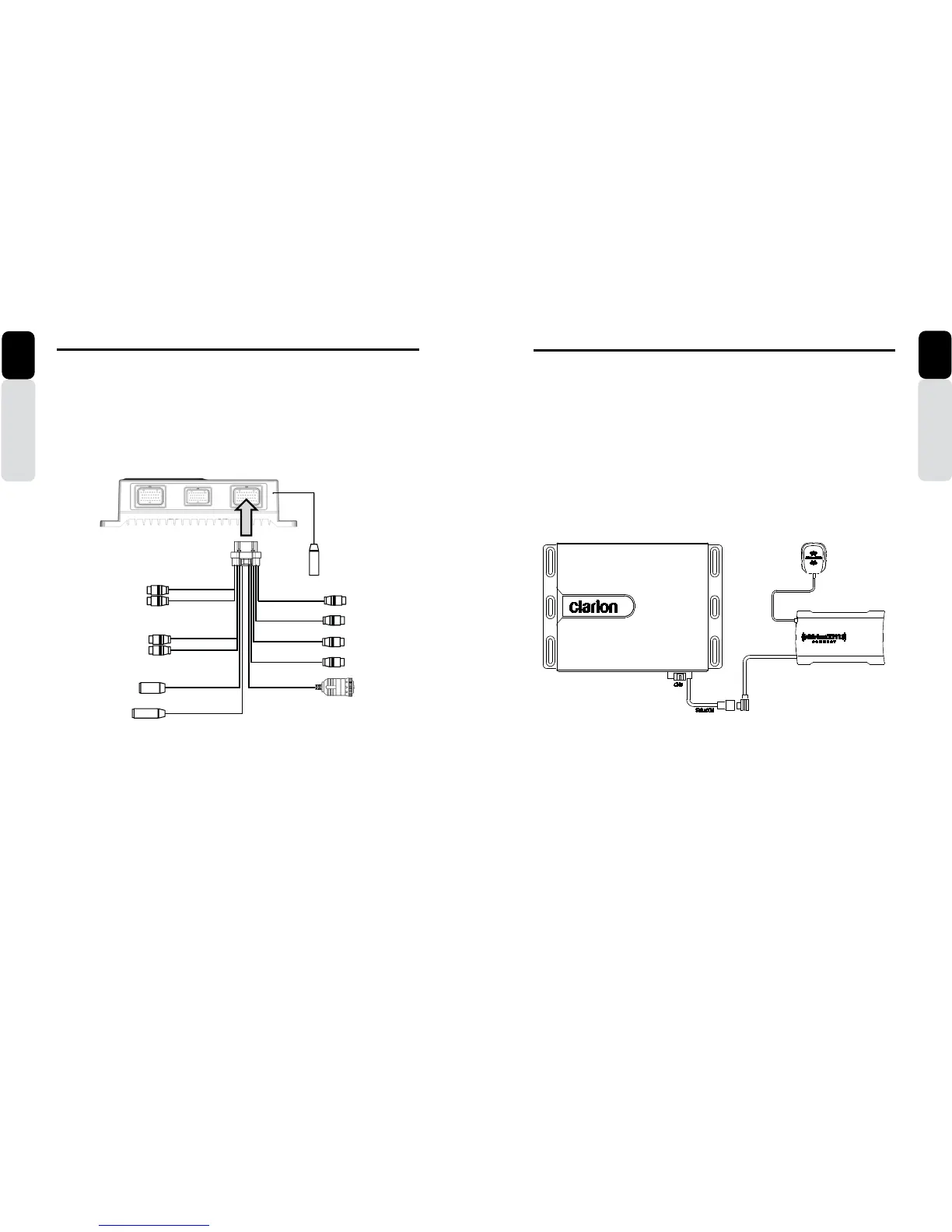

CN3 (RIGHT) Connection Diagram
** SiriusXM Satellite Radio Tuner is sold separately **
SiriusXM Installation:
1. Mount the included SXM Antenna with clear view to the sky
2. Run Antenna Cable to the SXM Tuner location
3. Connect SXM Antenna to the SXM Antenna Connector on Tuner
4. Connect SXM Cable from SXM Tuner to the SXM Connector (CN3) on the CMS5 Black Box
AUX 1 Left
Line Input
AUX 1 Right
AUX 2 Left
Bluetooth Mic
White
Red
AUX 2 Right
Antenna
Yellow
Video 1 Input
Video 2 Input
Camera Input
Video Out
Line Input
Line Input
Line Input
White
Red
Red
Red
Yellow
Yellow
Yellow
Sirius XM
J1939 (CAN)
To Next Page
